Using MADI with ATEM 4 M/E Constellation HD
ATEM 4 M/E Constellation HD supports digital audio with the MADI protocol, also known
as Multichannel Audio Digital Interface. MADI is popular with most professional audio
manufacturers, broadcasters and high end recording facilities. These MADI ports have robust
BNC connectors and transmit audio data over 75 ohm coaxial cables up to 100 meters long.
SDI INPUTS
CONTROL
REMOTE
TALKBACK MADI IN
REF INUSB
1 5 9 13 17
2 6 10 14 18
21
3
22
3 7 11 15 19
4 8 12 16 20
23
24
1 51 2 9 13 17
2 6 10 14 18
21
22
3 7 11 15 19
4 8 12 16 20
23
24
25 29 33
26 30 34
37
38
27 31 35
28 32 36
39
40
4
ANALOG AUDIOMULTIVIEW
CH 2
CH 1
1
2
CH 2
CH 1
SDI OUTPUTS
MADI OUT
OUT
IN

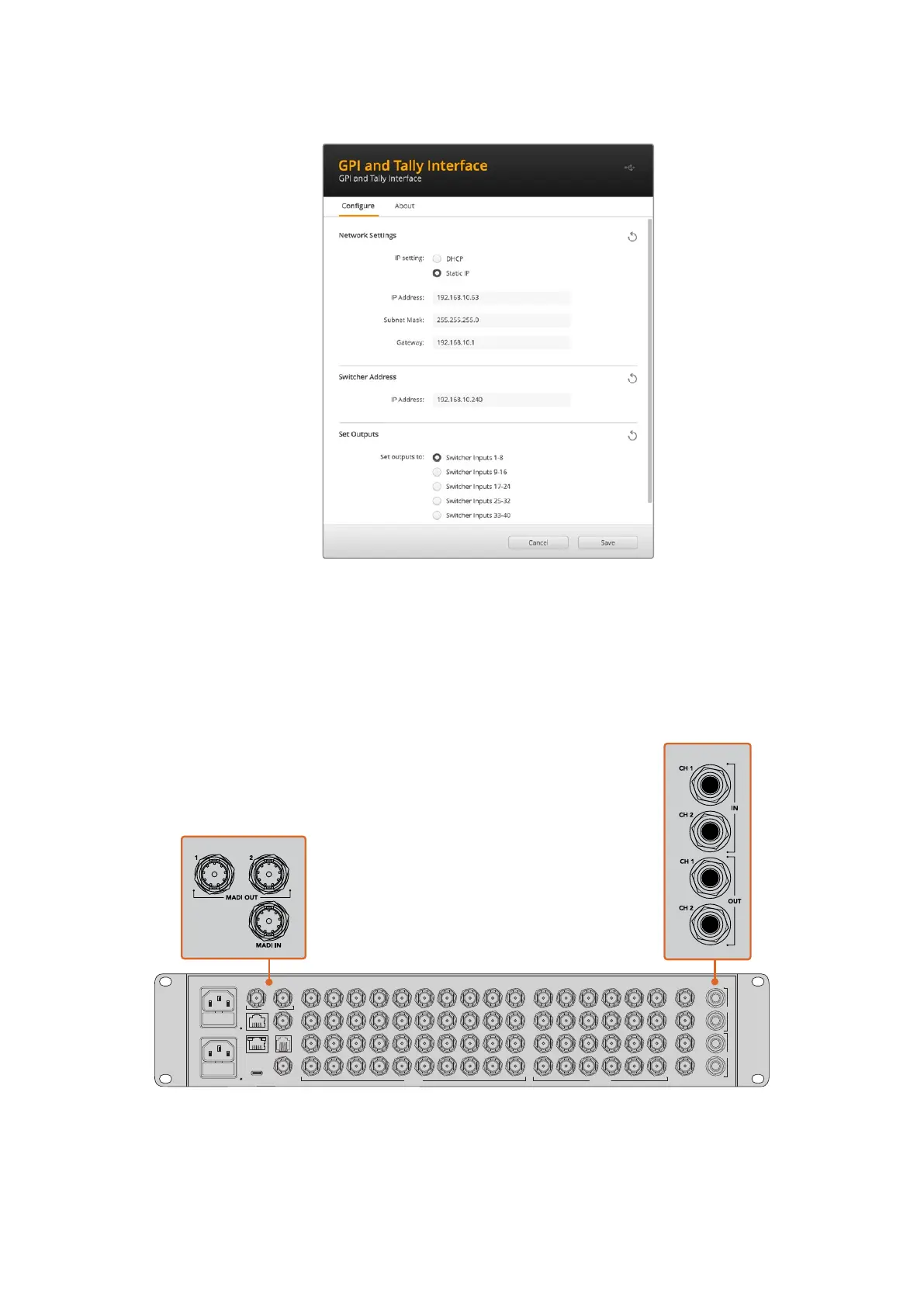

ATEM 4 M/E Constellation HD has BNC connectors for MADI audio, plus1/4” TRS connectors for analog audio
in and out.
