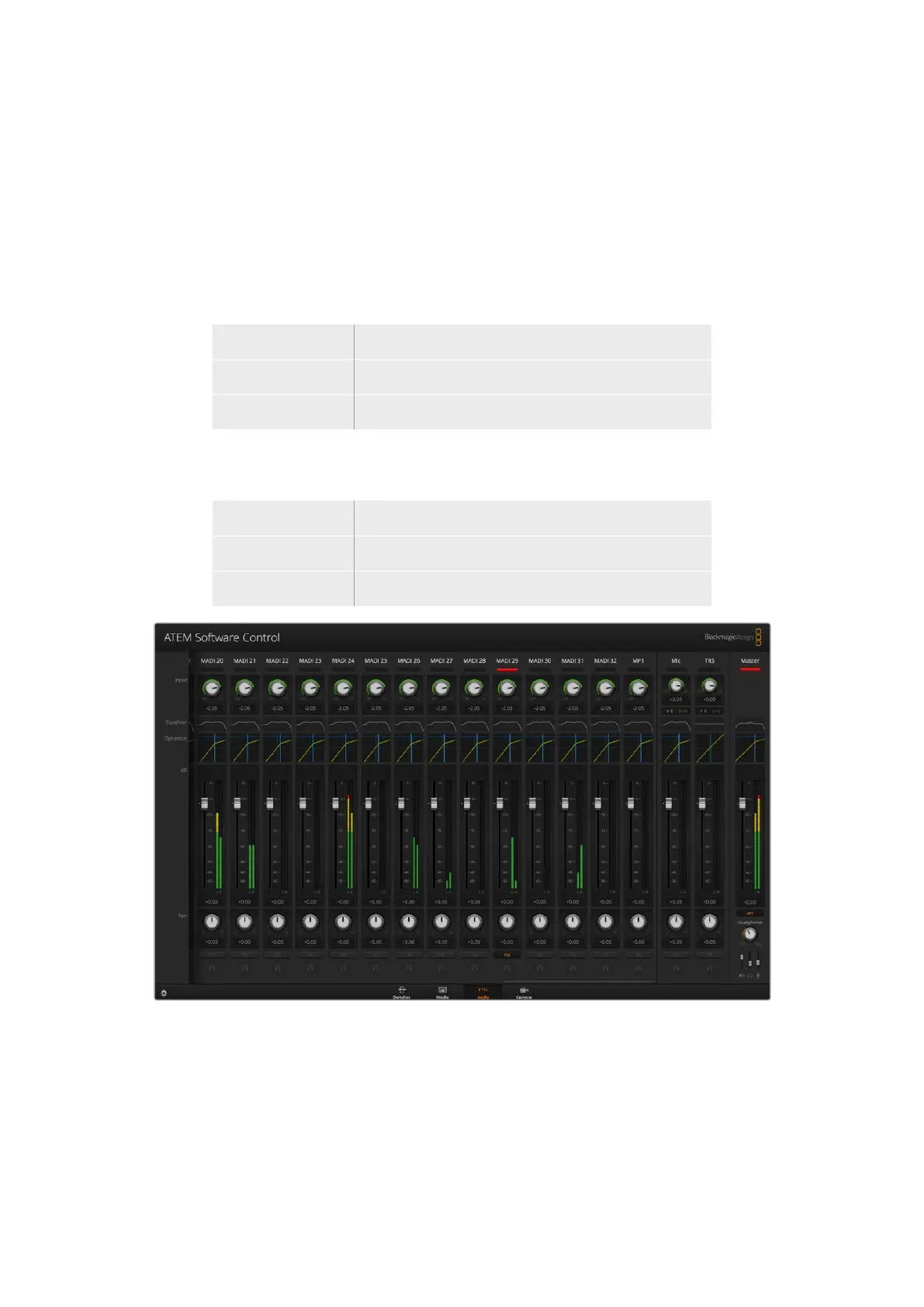

MADI In
MADI channels 1-64 receive digital audio at 24 bit depth with a sampling rate of 48 kHz.
These are connected to an extra 64 channels in the audio mixer that you can mix into the
program output with the same EQ and dynamics as the video input audio mixing channels.
These additional 64 audio inputs mean you can do very complex audio mixing all within
ATEM 4 M/E Constellation HD.
MADI Out 1
In HD, MADI Out 1 sends these sources:
Channels 1-30 Channels 1 and 2 of SDI inputs 1-30.
Channel 31 External mic.
Channel 32 TRS analog audio input.
MADI Out 2
In HD, MADI Out 2 sends these sources:
Channels 1-30 Channels 3 and 4 of SDI inputs 1-30.
Channel 31 External mic.
Channel 32 PGM audio.
Using a Third Party Audio Mixer Control Surface
Using an Audio Mixer Control Surface
In the fast-paced world of live TV production, using a mouse to make adjustments can
sometimes feel too slow! If you need to mix more than one audio source at a time on your
ATEMswitcher then here’s an idea that can really help. Connecting a hardware audio mixer
155Using Tally
