Atem Constellation HD - Wipe Transitions

Dip transition parameters
Rate The dip transition rate in seconds and frames.
Dip Source The dip source is any video signal in the switcher that will be used as the intermediate
picture for the dip transition, usually a color generator or media player.
Wipe Transitions
A wipe is a transition from one source to another and is achieved by replacing the current
source by another source with a pattern that forms a shape. For example an expanding circle
or diamond.

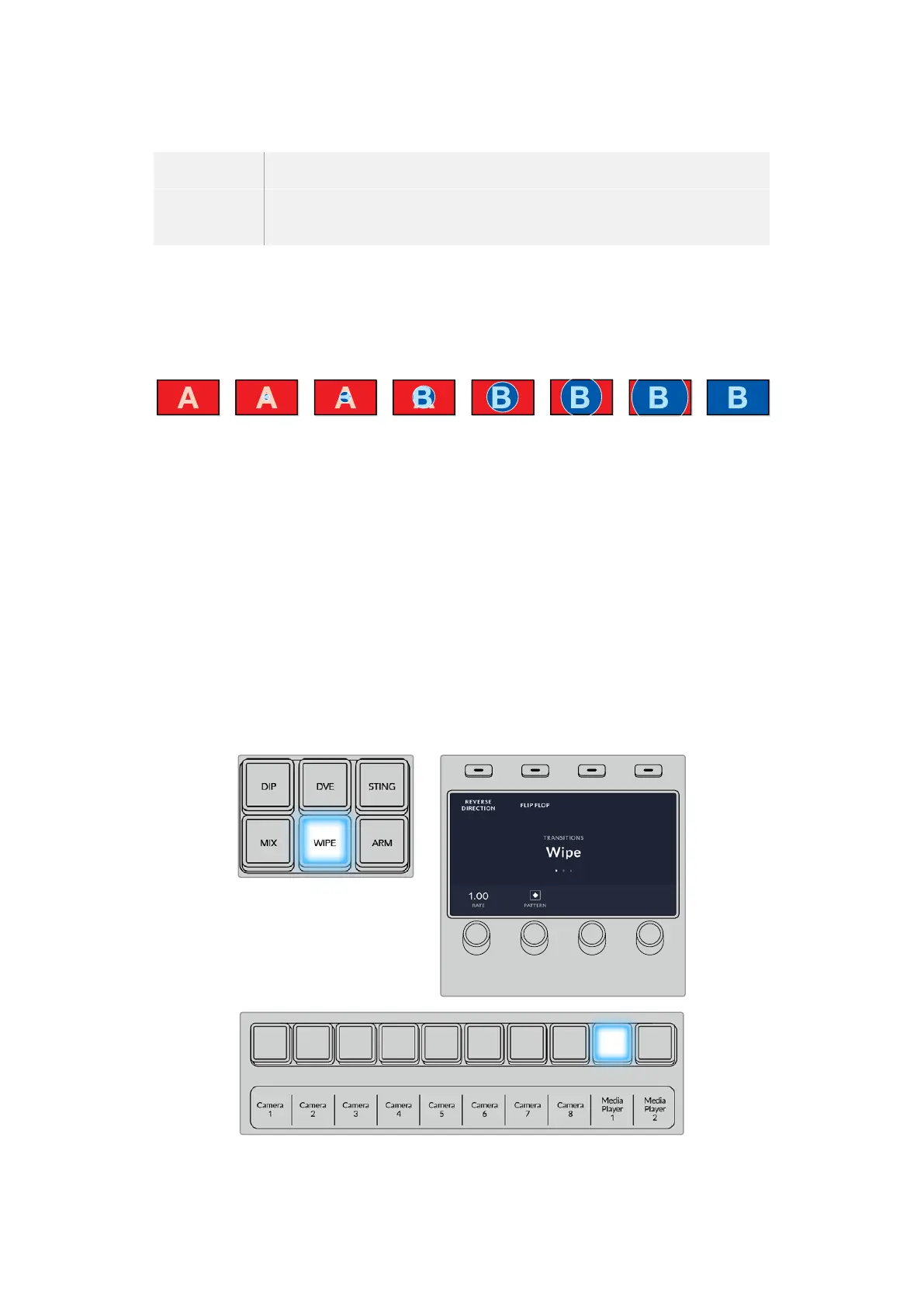

Program output for a wipe transition.
To perform a wipe transition on an ATEM advanced panel
1 On the preview bus, select the video source that you want on the program output.
2 Press the WIPE button to select the wipe transition type. The LCD menu will automatically
display the transition settings.
3 Rotate the pattern knob to select the desired wipe pattern.
4 In the transition settings, use the corresponding LCD control knobs to adjust the border
parameters, the wipe rate and wipe direction. You can also enter a rate duration and
specific setting values using the number pad.
5 Use the select bus to select the border source.
6 Perform the transition as an auto transition or manual transition from the transition
control block.
