Atem Constellation HD - Page 92

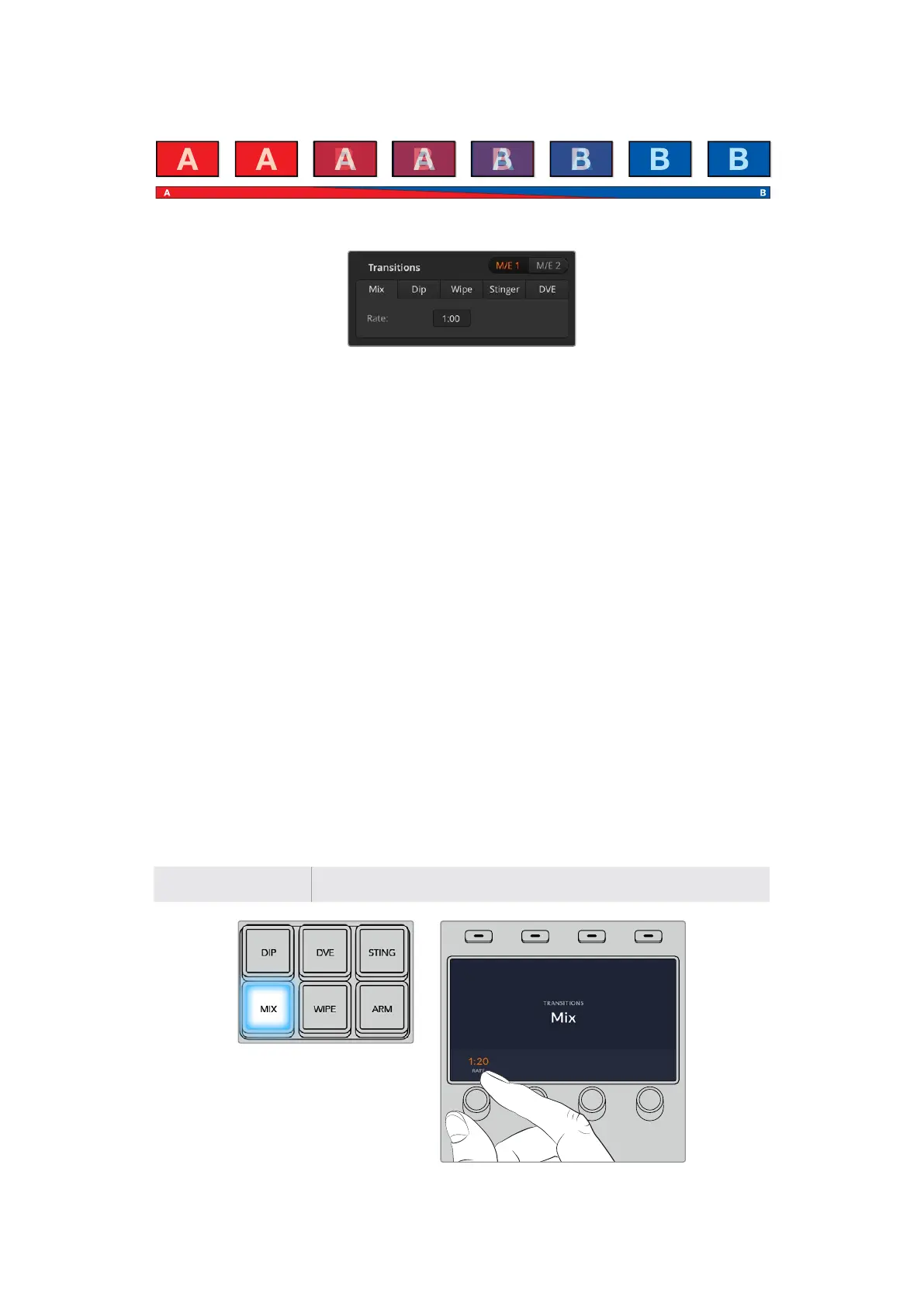

Program output for a mix transition.
Mix Transition rate setting
To perform a mix transition on the software control panel:
1 On the preview bus, select the video source that you want on the program output.
2 Select the mix transition style in the transition control block.
3 Expand the transition palette and select mix from the transition types bar.
4 Adjust the mix rate by entering a number in the rate window. The rate display in the
transition control block will update.
5 Perform the transition as an auto transition or manual transition from the transition
control block.
To perform a mix transition on an ATEM advanced panel:
1 On the preview bus, select the video source that you want on the program output.
2 Press the DIP/MIX or MIX button to select the mix transition type. The system control
automatically navigates to the transition menu.
3 Using the LCD panel, use the soft control knob to adjust the mix rate. The transition rate
display in the advanced panel’s transition control block will update dynamically. You can
also enter a rate duration using the number pad.
4 Perform the transition as an auto transition or manual transition from the transition
control block.
Mix Transition Parameters
Rate The mix transition rate in seconds : frames.
HOME
MIX
FTB
MACRO
SETTINGS
WIPE
MEDIA
PLAYERS
SUPER
SOURCE
KEYS
DVE
BORDER
CAMERA
CONTROL
STINGER
COLOR
AUDIO
DIP
AUX
1
4
7
ENTER
2
5
8
0
3
6
9
RESET
PROGRAM
PREVIEW
SHIFT MACRO
BKGD
KEY 1
KEY 2
KEY 4
KEY 3
ON
ON
ON
ON M/E 1 M/E 2
M/E 3
M/E 4
SHIFT DIP
DVE
STING
DSK 1
TIE
DSK 2
TIE
DSK 1
CUT
DSK 2
CUT
DSK 1
AUTO
DSK 2
AUTO
FTB
MIX
CUT
AUTO
WIPE
ARM
PREV
TRANS
Press the ‘mix’ button and set
the transition rate using the LCD
menu and control knob
92Operating your ATEM Switcher
