ANNEX 1 ACQUISITION SETUP DETAILS
Some examples are shown here that will help the user add new channels to the acquisition
configuration (also called setup) and to change other parameters.
The setup structure was already presented:

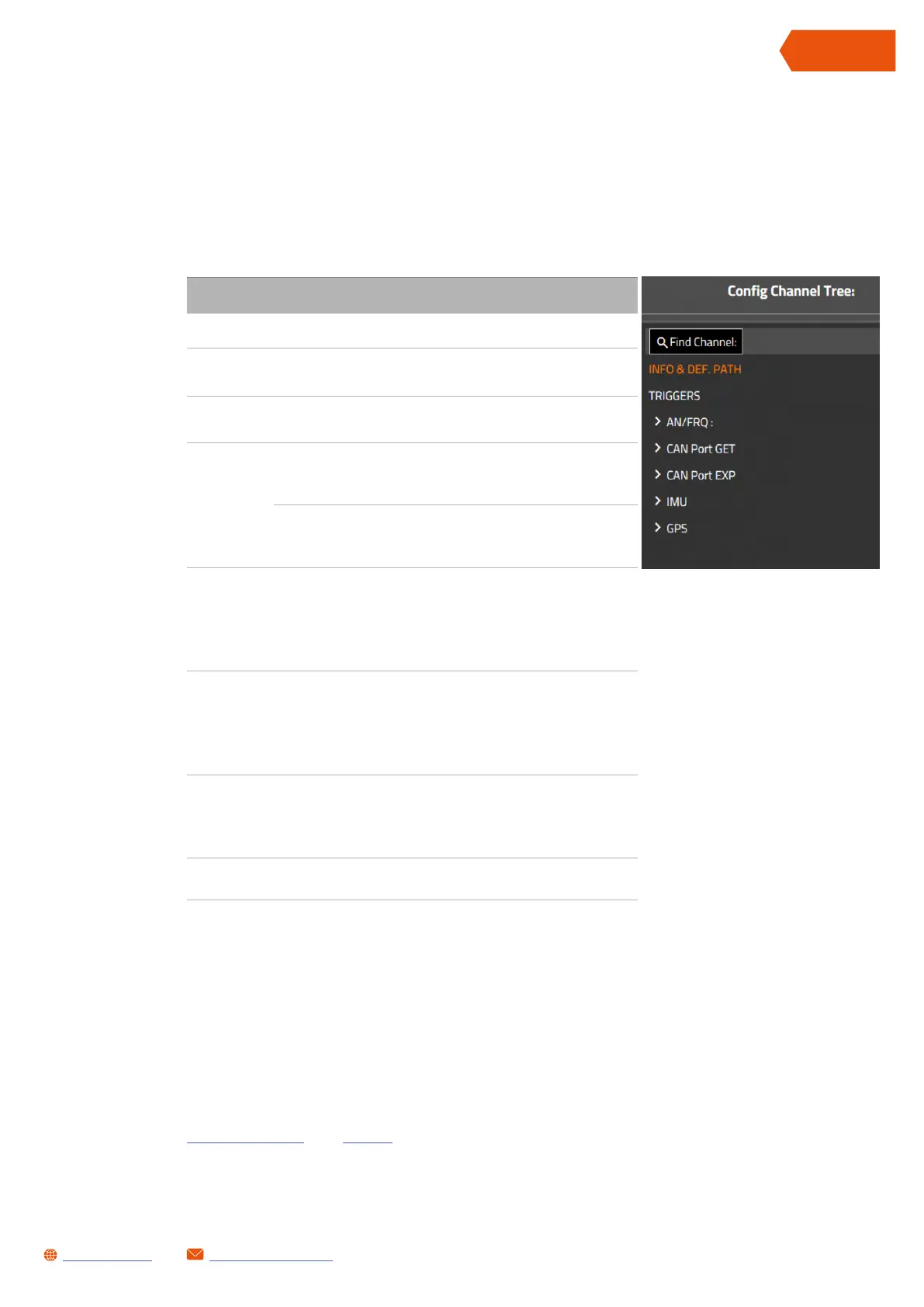

Each group of options is available by pressing the relative item in the Config Channel Tree column.
The following instructions assume that the reader has opened a valid setup (see
chapter 12.5.1 and 12.5.2).
SL1 configuration
GROUP CATEGORY DESCRIPTION RELATED TO:
INFO -
Information about
the track, the pilot
Archiving
TRIGGERS -
Acquisition start/
stop rules
Acquisition
AN/FRQ
ANALOG
(AN1..AN3)
Contains the input
analogue channel
settings
Acquisition
DIGITAL
(IC1)
Contains the
frequency input
channel settings
Acquisition
CAN Port
GET
USER CAN
USER CAN: contains
the configured
channels of the
CAN0 port (MAN
conn.)
Acquisition
CAN Port
EXP
USER CAN
USER CAN: contains
the configured
channels of the
CAN1 port (EXP
conn.)
Acquisition
IMU IMU
Channels related
to the IMU sensors
(accelerometers and
gyroscopes)
Acquisition
GPS GPS
Channels related to
the GPS module
Acquisition
