Athena SERIES 16 User Manual

5
Operation
Mode Key Used to access Standby,
Tune, Run or Manual modes.
Lower Key Used to scroll down through
available parameter settings, decrease values
or change menu levels (Hold for fast-step
progression)
Raise Key Used to scroll up through available
parameter settings, increase values or change menu
levels (Hold for fast-step progression)
Parameter/Access Key Used to index through parameters
or to access Menu Levels
After mounting and wiring your
Series 16 controller, you are
ready to set the parameter values
required of your application. Take
a moment to familiarize yourself
with the unit’s front panel con-
trols and indicators.
Process Value
Displays measured
process temperature
in °F or °C or process
value in engineering
units
Setpoint Value
Displays programmed
setpoint temperature
in °F or °C or setpoint
value in engineering
units
Output 1
LED indication
of Heat cycle
(Output 1 action)
Output 2
LED indication
of Cool cycle
(Output 2 action)
Alarm 1
LED indication
of Alarm1 condition
Alarm 2
LED indication
of Alarm 2 condition
Function 1
LED indication of
Special Function 1
Function 2
LED indication of
Special Function 2

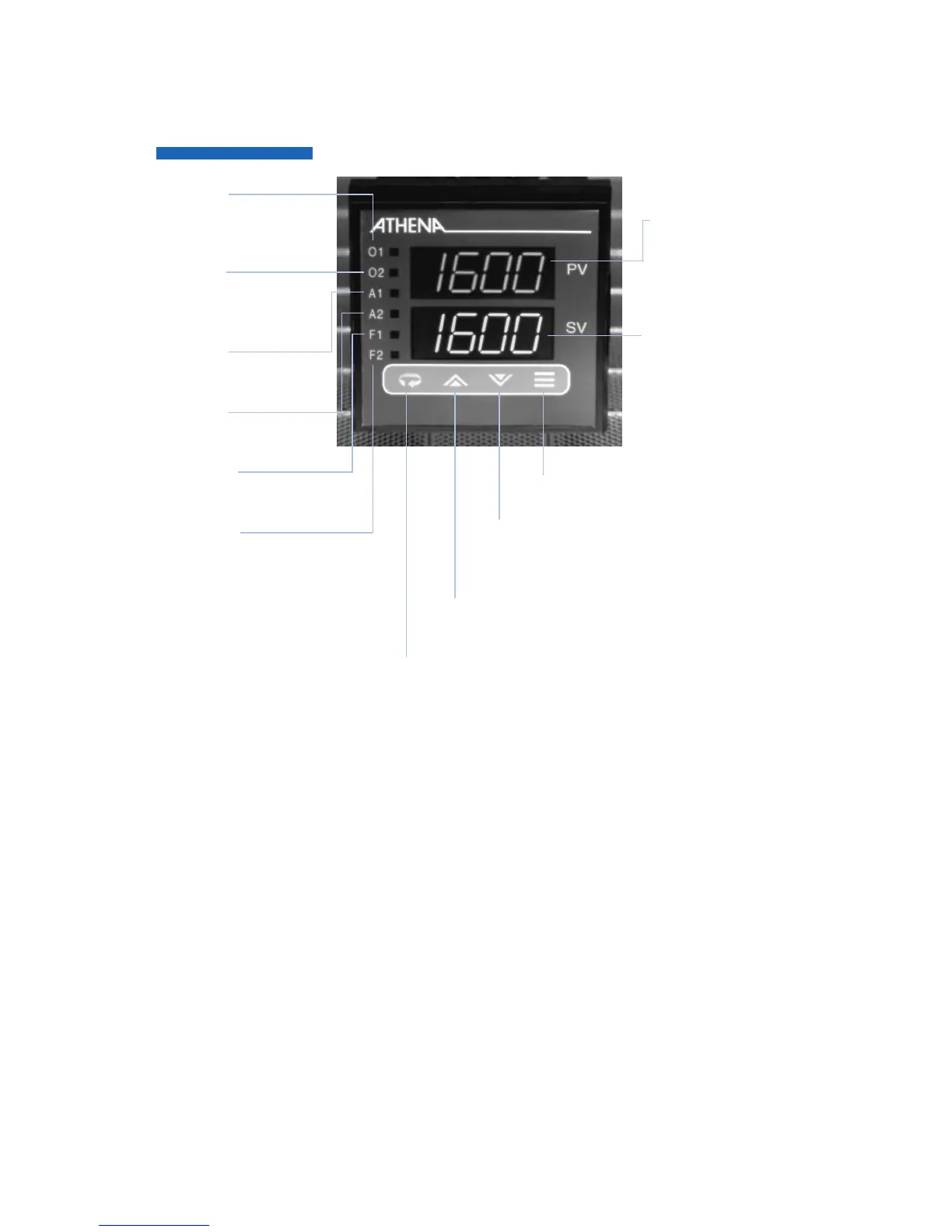

Figure 10. Front Panel Controls and Indicators

Athena SERIES 16 Specifications

General

Output	Relay
Input	Analog
Power Supply	24V DC
Input Voltage	100-240 VAC
Communication Ports	RS-485
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C
