Athena SERIES 16 User Manual

1
Installation

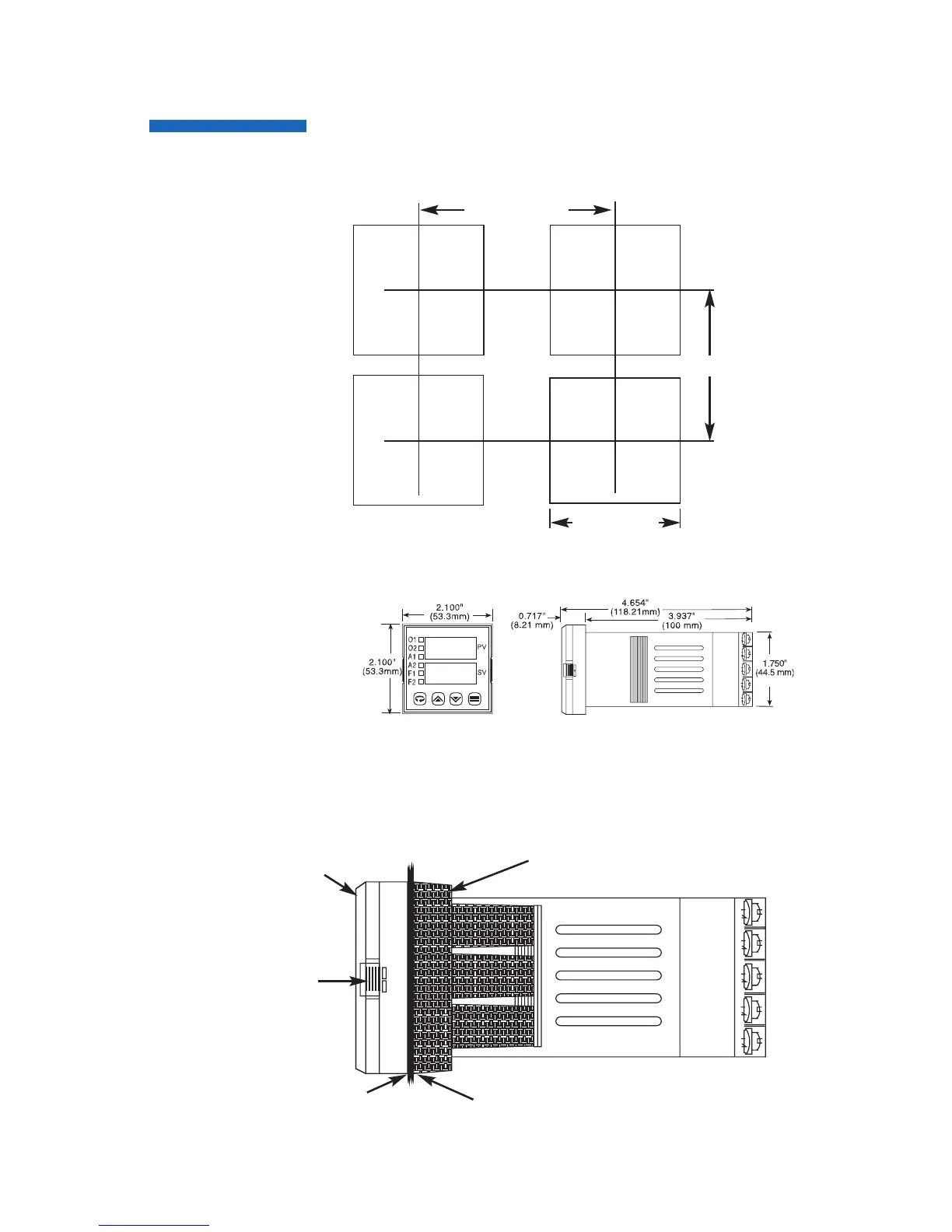

Figure 1. Recommended Panel Layout for Multiple
Controllers
Measurements between
centerlines of panel
cutouts are minimum
recommended.
C
L
C
L
C
L
C
L
2.850" (72.4 mm)
2.150" (54.6 mm)
1.171" (45 mm)
Figure 2. Case Dimensions
Prior to mounting the Series 16 in your panel, make sure
that the cutout opening is of the right size, 1.771" x 1.771"
(45 mm x 45 mm), and deburred to enable a smooth fit.
A minimum of 4" (100 mm) of depth behind the panel is required.
Figure 3. Series 16 Mechanical Components
Bezel
Case Clip
Grips
Rubber Gasket
Customer Panel

Athena SERIES 16 Specifications

General

Output	Relay
Input	Analog
Power Supply	24V DC
Input Voltage	100-240 VAC
Communication Ports	RS-485
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C
