Athena SERIES 16 User Manual

3
Power Wiring

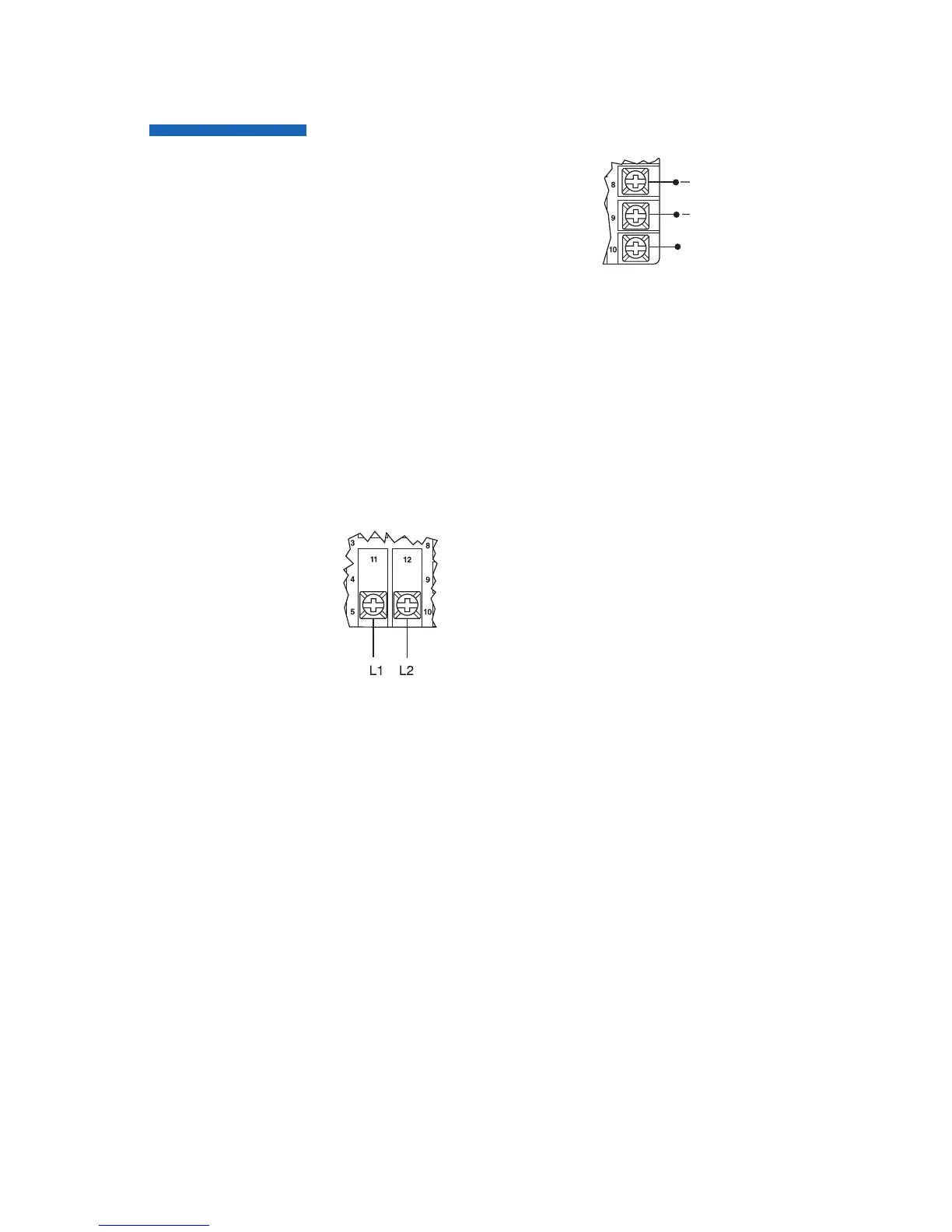

Figure 7. Process and Linear Input Wiring
Voltage Inputs: Connect the positive
voltage input to contact #10; the
negative input to contact #8.
mV/Current Inputs: Connect the
positive current input to contact
#10; the negative input to #9.
The Series 16 power supply accepts 100 to 250 Vac and 100
to 330 Vdc line power without any switch settings or polarity
considerations. All connections should be made in accor-
dance with the National Electrical Code and local regulations,
using only NEC Class 1 wiring for all power terminals.
It is advisable, but not necessary, to fuse one leg of the
incoming power line, contact #11, with a 2AG, 0.5 amp
rated fuse. Be sure that only instrument power input is fused
— not power to the load.
Figure 8. Power Wiring Connection
100 - 250 Vac 50/60 HZ
100 - 330 Vdc (Auto Polarity)
VOLTAGE
CURRENT OR 50 mV
+

Athena SERIES 16 Specifications

General

Output	Relay
Input	Analog
Power Supply	24V DC
Input Voltage	100-240 VAC
Communication Ports	RS-485
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C
