ATI Q46D Dissolved Oxygen System Part 2 – Analyzer Mounting
9
O&M Manual
Rev-N (4/21)
2.2 Wall or Pipe Mount
A PVC mounting bracket with attachment screws is supplied with each transmitter (see
Figure 2 for dimensions). The multi-purpose bracket is attached to the rear of the enclosure
using the four flat head screws. The instrument is then attached to the wall using the four outer
mounting holes in the bracket. These holes are slotted to accommodate two sizes of u-bolt that
may be used to pipe mount the unit. Slots will accommodate u-bolts designed for 1½ “or 2” pipe.
The actual center to center dimensions for the u-bolts are shown in the drawing. Note that these
slots are for u-bolts with ¼-20 threads. The 1½” pipe u-bolt (2” I.D. clearance) is available from
ATI in type 304 stainless steel under part number 47-0005

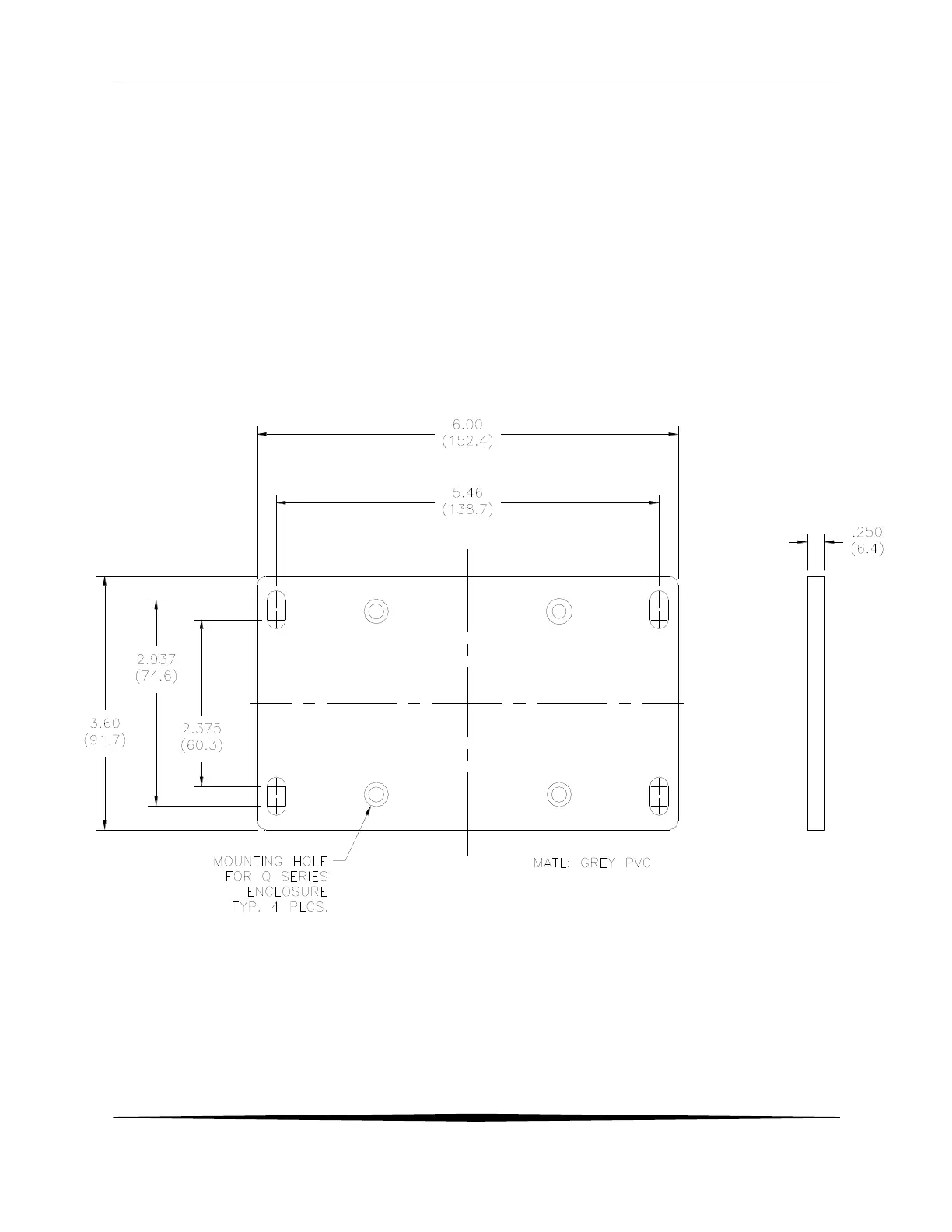

Figure 2 - Wall or Pipe mount bracket
