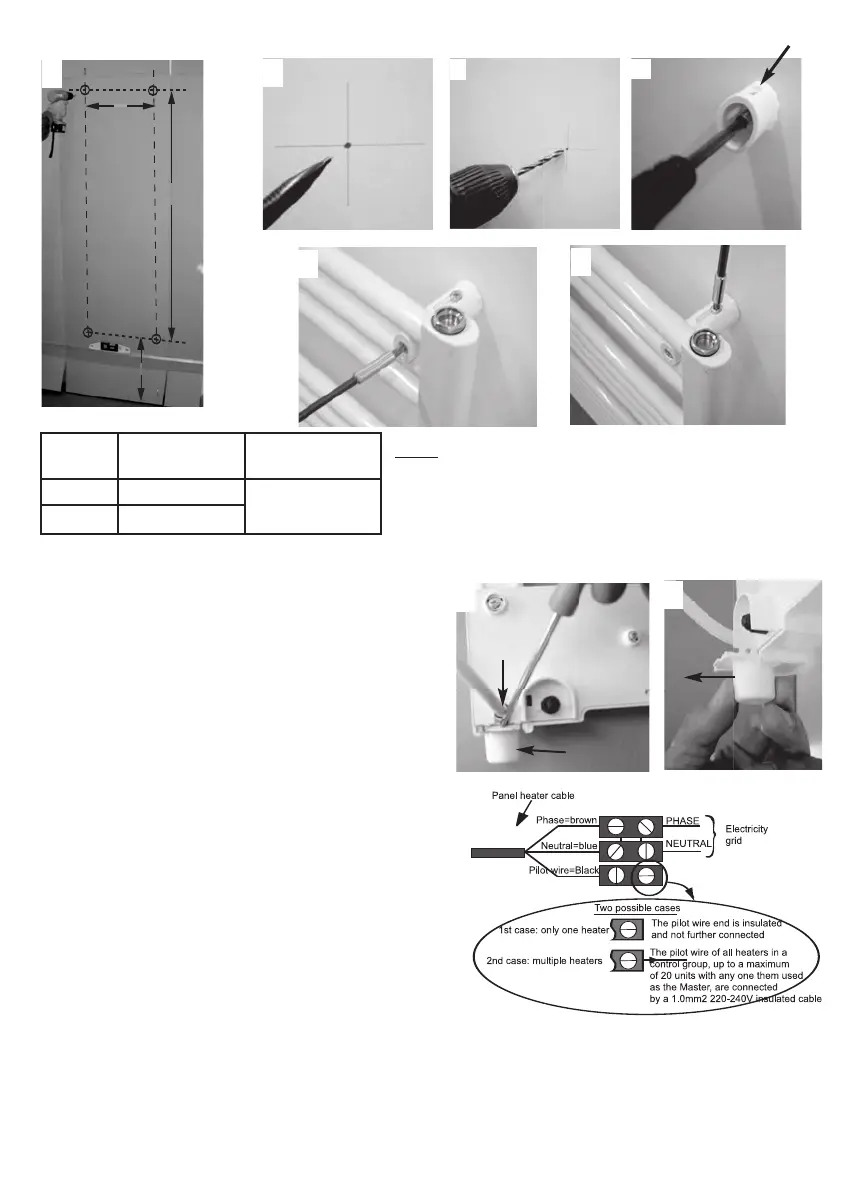

3) How to remove the mounting under the control box ?
As you wish, you can remove or retain the mounting,
used to protect the control box when the appliance is
set on the ground prior to installation.
a) Push the tongue (1).
b) Pull the mounting towards you (2).
Power
Measurement (A)
for fitting lugs (mm)
Measurement (B)
for fitting lugs (mm)
500W 779
350
750W 1230
3) Connecting the device
- The device must be supplied with 230V, 50Hz.
- Mains connection must be ensured using a 3-wire cable
(Brown=Phase, Blue=Neutral, Black=Pilot wire), through
a connecting box. In damp premises, such as bathrooms
and kitchens, install the connecting box at least 25cm
from the ground.
-The installation must be equipped with a shutting-off devi-
ce in all poles having a distance of opening of contact of
at least 3mm.
- Ground connection is forbidden.
Do not connect the pilot wire (black) to ground.
- If power cable is damaged or too short, to avoid any danger it must be replaced by a qualified electrician
using special tools.
- If a device pilots or is piloted by a 30mA differential (e.g. bathroom), the pilot wire supply must be pro-
tected on this diff
er
ential.
1
2
The mounting
2
4
3
1
5
6
7
Note: The pins supplied with the device are of the standard type.
In case of a particular stand, use appropriate pins.
