Atlantic 2012 - English; Installing the Device

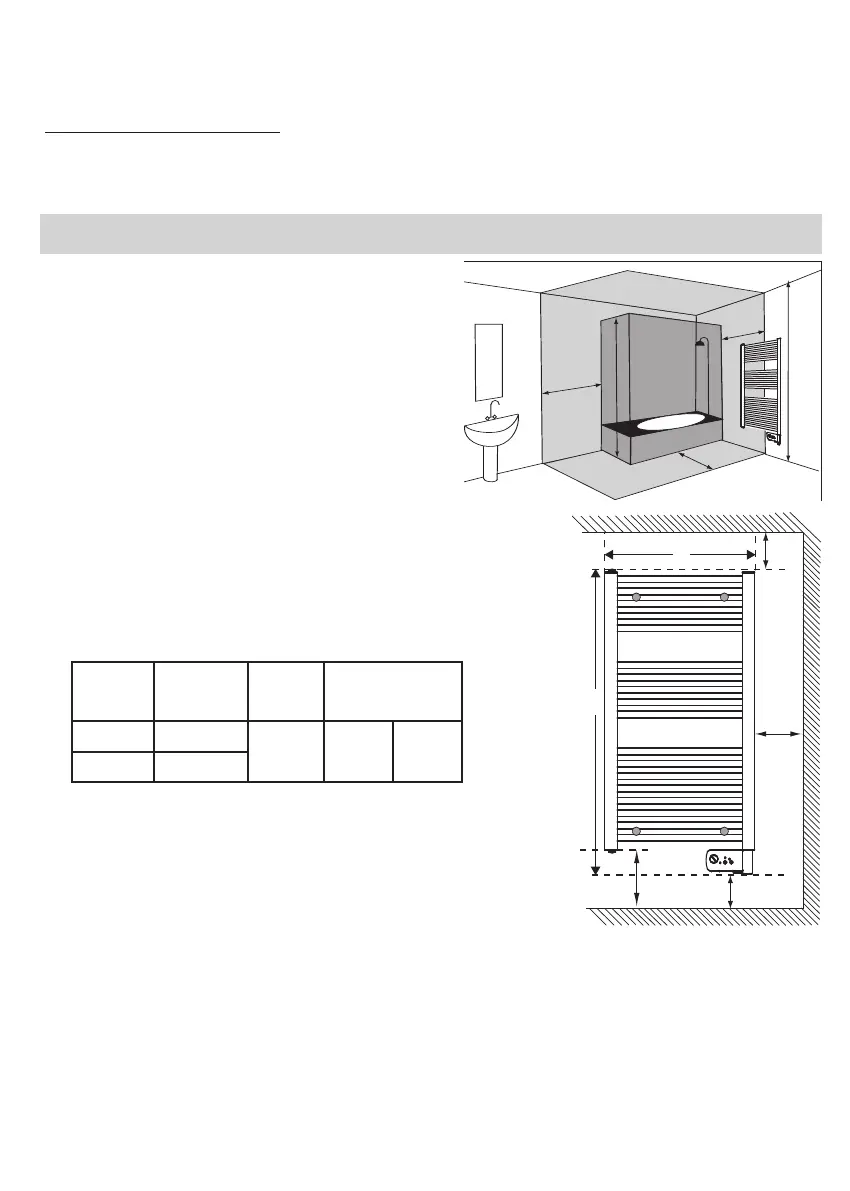

1) Location of the device
- This device was designed to be installed in residential
premises. In any other case, please call your distributor.
- Installation must be ensured according to the rules of
the art, and in compliance with the standards currently
enforced in the installation country.
- Locate the device within minimum distances from
obstacles.
Do not install the device:
ÄIn a draft likely to disturb its regulation
(under centralised mechanical ventilation, etc…).
ÄUnder a fixed mains outlet.
ÄInside volume 1 in bathrooms.
ÄInside volume 2 if handling the controls are accessible to
persons using the shower or the bath tub.
Except in the UK, please refer to the IEE Regulations 601-06-
01 and 601-08-01 (B57671),
2) How to install the device ?
1/ Unfasten the flaps on the lid and position it against the wall with the
lower flap folded back and placed on the floor or at the desired
installation height. Mark off the 4 drill holes through the packaging,
without drilling them, and then remove the packaging.
2/ Carefully mark the 4 drilling points with a pencil (draw a cross, 2cm
wide).
3/ Drill the 4 holes.
4/ Screw the sleeve in place. Fit the screws with the washers provided.
5/ Screw the pins on the tubes without locking them. Check they are correctly positioned by inserting them
in the sleeves, with the appliance.After finding the right position, tighten the screws on each pin.
6/
Place the appliance on the wall, in the sleeves.Tighten all the locking screws. Fit the caps on the ends of
the pins.
150
mini
281 mini
150
mini
H
L
200 mini
Volume
3
Volume
2
60 cm
60 cm
60 cm
3 m
2,25 m
Volume
1
The device you have just purchased was submitted to many tests and checks ensuring its quality. We
thank you for your choice and trust.We hope you will be fully satisfied.
A few recommendations:
Read the instructions before installing the device.
Power the device off before intervening on it, and check the power supply voltage.
Store the instructions, even after installing the device.
INSTALLING THE DEVICE
Power
Overall height
(
H) (mm)
Widthr (L)
(mm)
Thickness (mm)
500 W 1013
480 67 82
750 W 1464
