Atlantic A Series - Table of Contents

5
A-05 A-05L A-21 A-31 AN-32
A 9” 10” 10” 11” 15⁄”
B 7½” 8½” 8½” 9” 13⁄”
C 6¼” 7” 7” 7” 8⁄”
D 15” 17” 17” 18” 23”

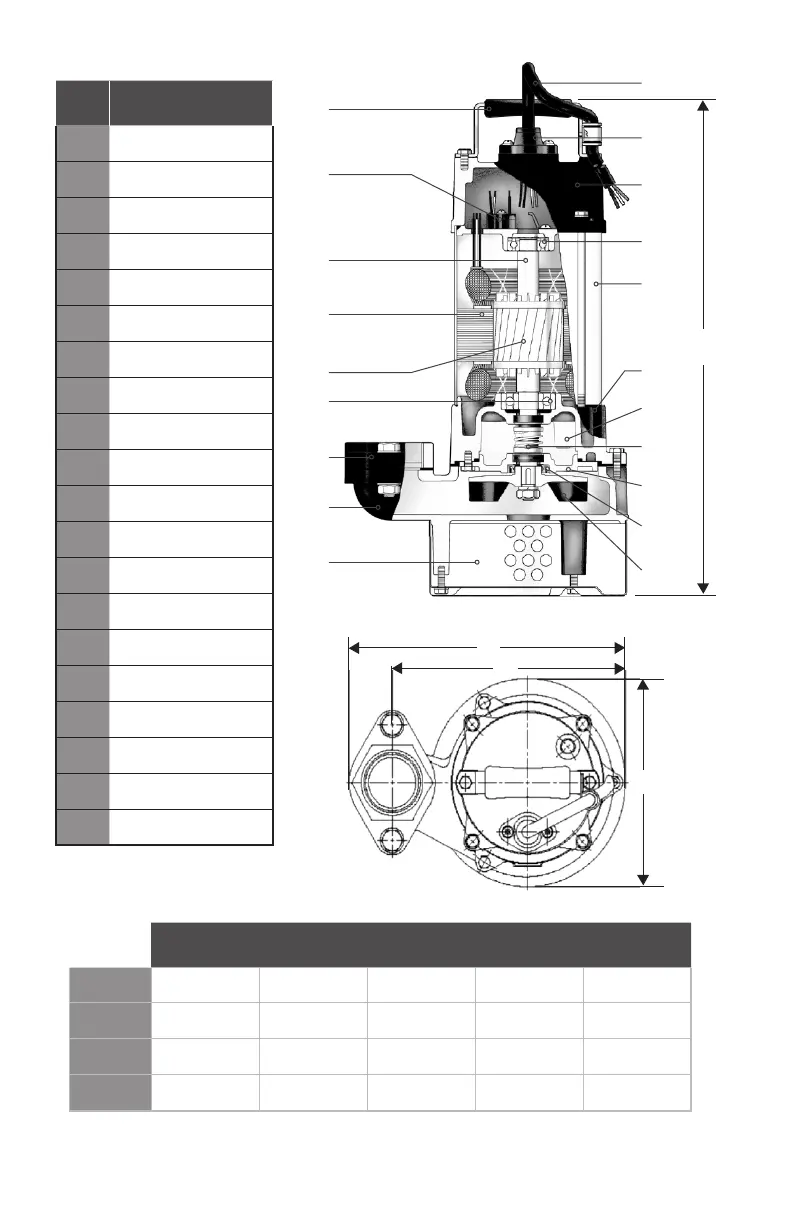

NO. Description
1 Handle
2 Cable
3 Epoxy Cable Base
4 Upper Cover
5 Autocut
6 Ball Bearing (upper)
7 Shaft
8 Stator
9 Rotor
10 Ball Bearing (lower)
11 Motor Case
12 Bearing Bracket
13 Lubricant
14 Mechanical Seal
15 Seal Bracket
16 Lip Seal
17 Impeller
18 Flange
19 Casing
20 Strainer
1
2
5
7
8
10
13
12
11
6
3
4
9
18
19
20
14
15
16
17
D
C
A
B
