Atlantic ODYSSEO 2 - Dimensions; Components

- 5 -

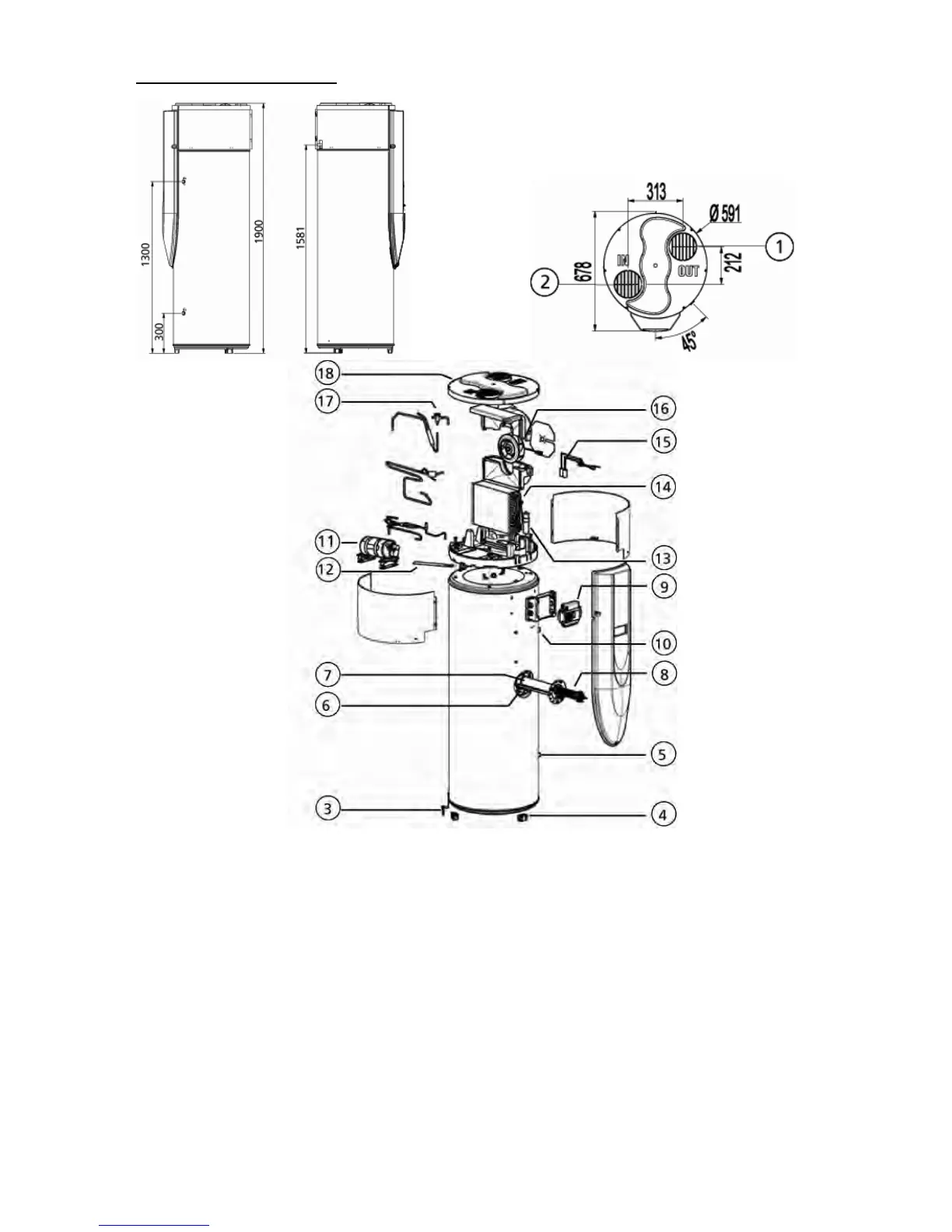

Dimensions / components
1
Air outlet
10
Hot water inlet
2
Air inlet
11
Compressor
3
Fixed unit attachment
12
Evacuation of condensate
4
Fixed feet
13
Compressor permanent condenser
5
Cold water inlet
14
Evaporator
6
Pocket
15
Fan wiring
7
Sheath
16
Fan
8
Electric heating element (ceramic element) and
mechanical safety device
17
Expansion valve
9
Regulation
18
Cover
Not shown:
-
Manual
-
Dielectric coupling
-
Condensate evacuation tube
