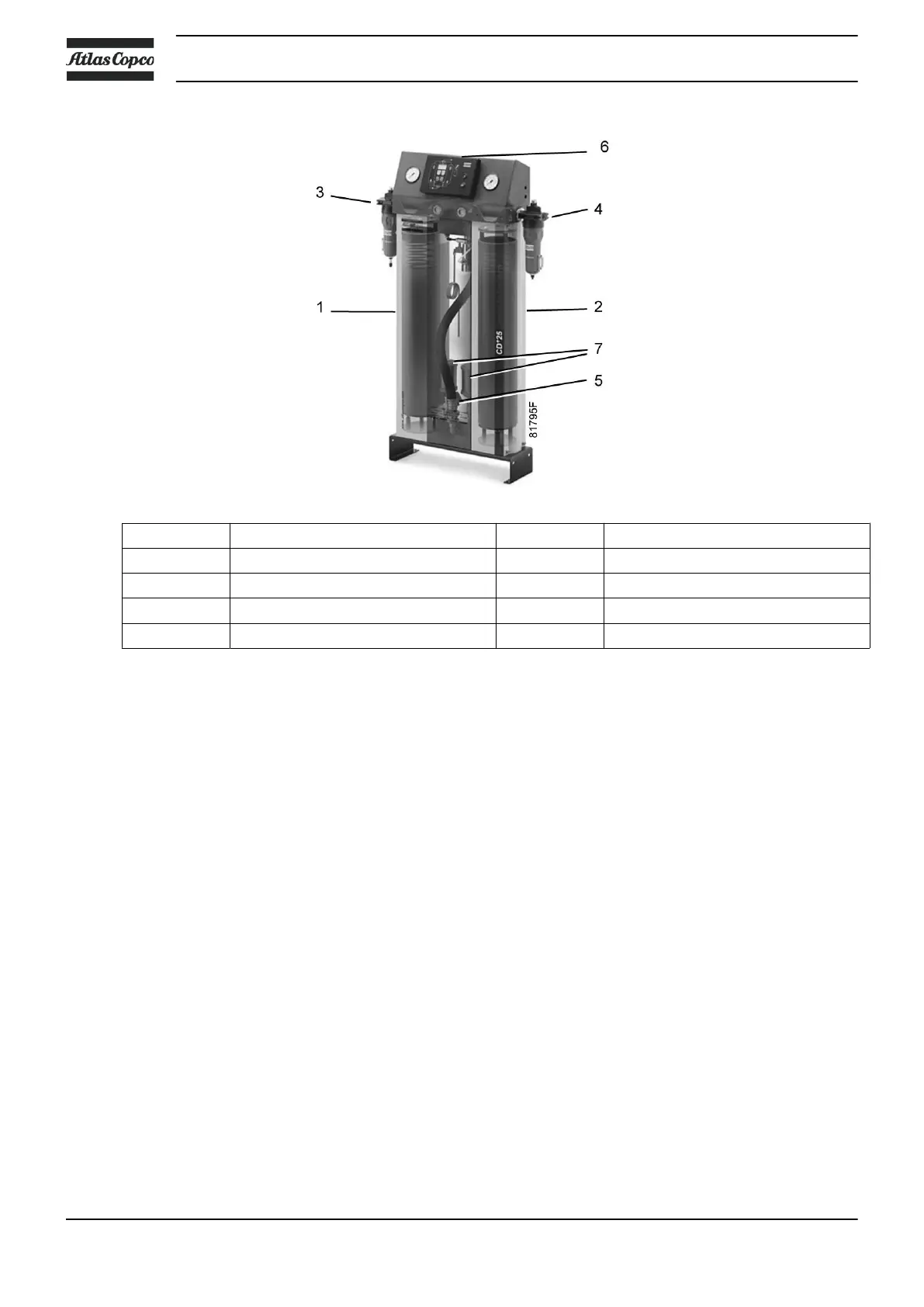

Reference Description Reference Description
1 Tower A 5 Solenoid valve
2 Tower B 6 Control cubicle
3 Air inlet 7 Silencers
4 Air outlet
2.2 Operation
General
The construction of the air dryer is simple, reliable and easy to service. A dryer has basically two
towers, containing the adsorption material or desiccant. This desiccant is a very porous grain
material, able to adsorb large amounts of water vapour.
Instruction book
10 API093050
