4 Installation

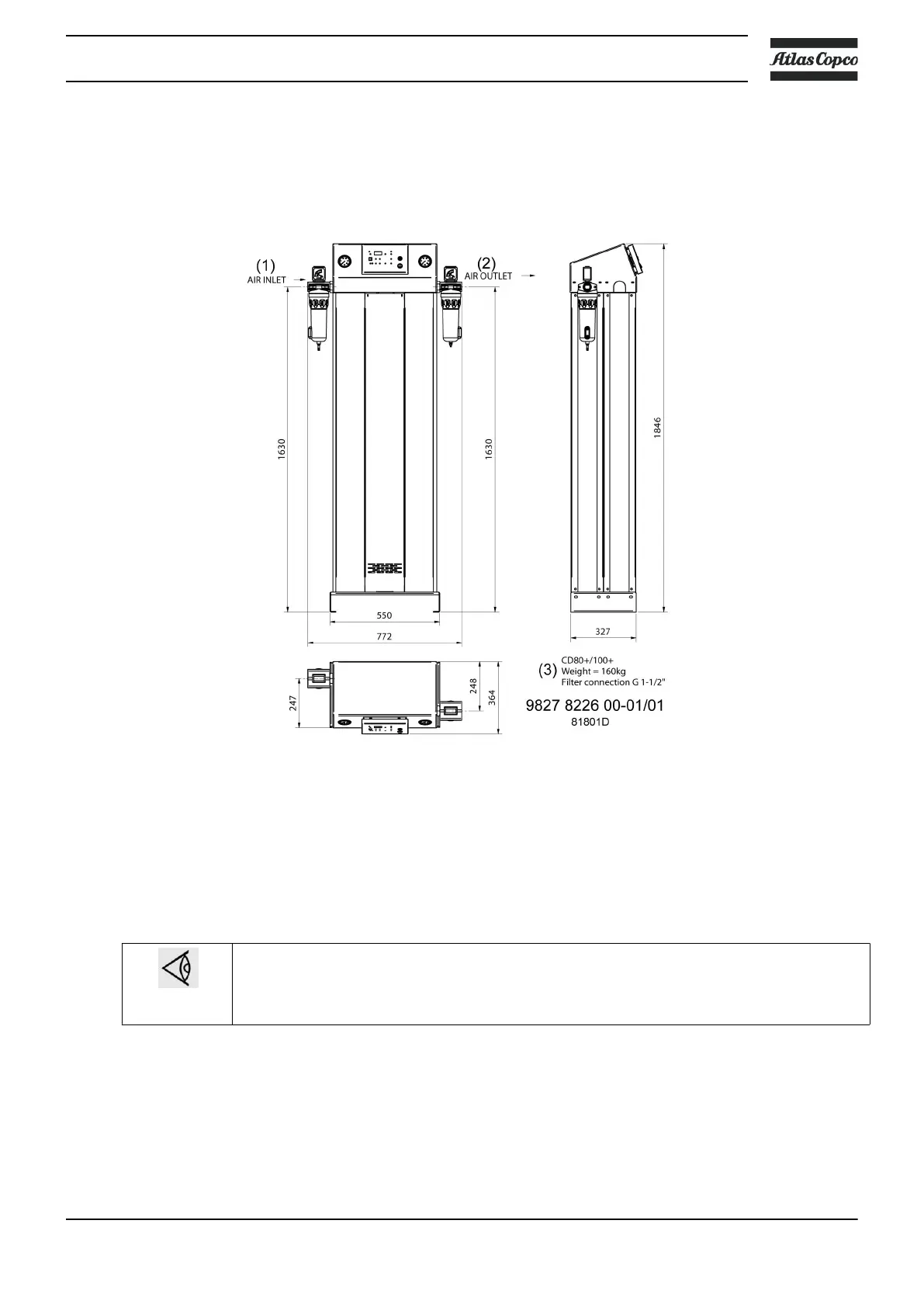

4.1 Dimension drawings
CD 80+ and CD 100+
4.2 Installation proposal
Piping
Make sure that all pipes, filters, valves, etc. are clean and that they are installed correctly
with or without bypass system.
Make sure that the piping is installed stress-free. For more information concerning air nets,
cooling systems etc., refer to the compressor installation manual.
To ensure correct operation of the dryer, it has to be fitted properly into the compressed air
circuit. Depending from the fact if the remote control connector X3 is used or not (see section
Operation), there are two possibilities:
Instruction book
API093050 17
