5.6 Pictographs

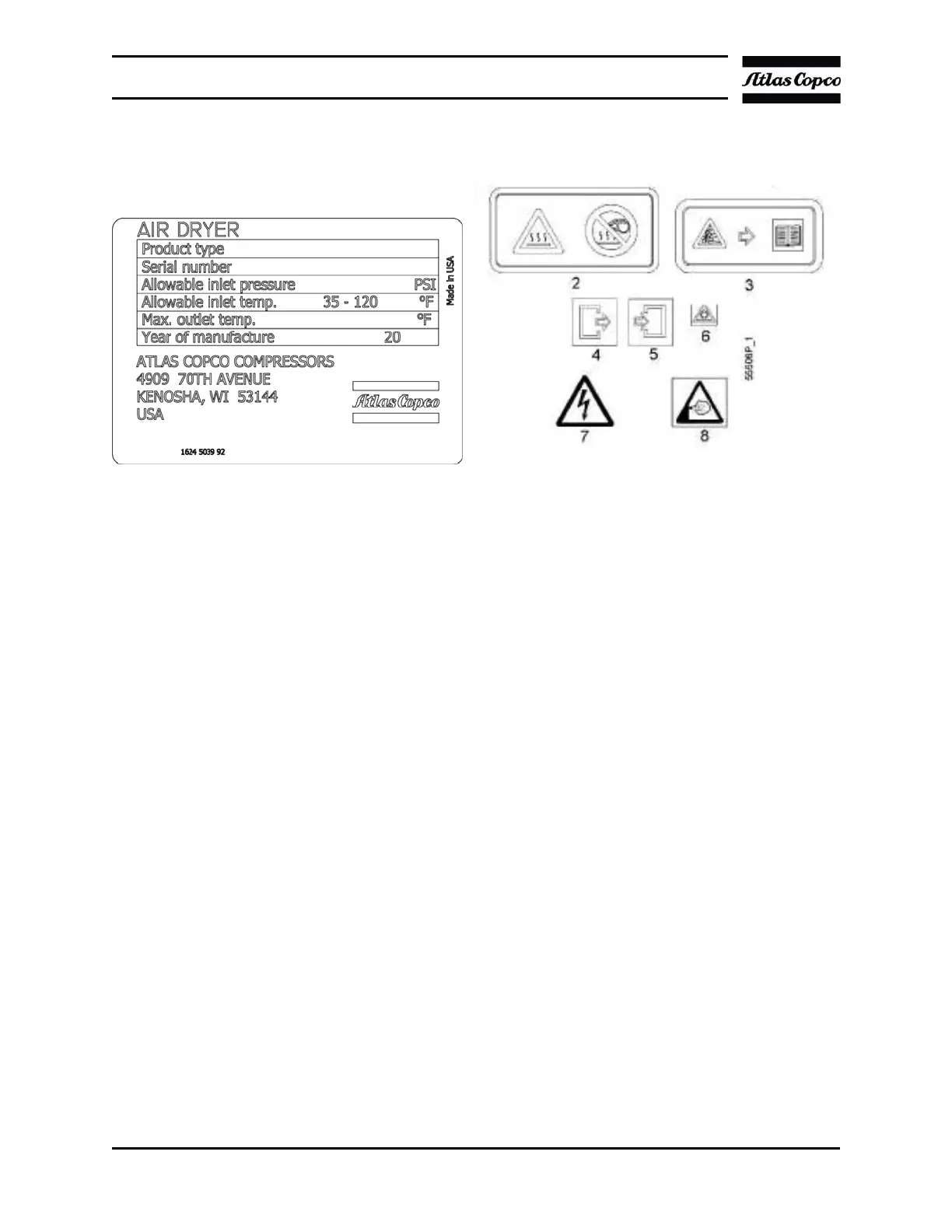

Explanation of pictographs
1
1. Data plate
2. Warning, heated surface
3. Warning, explosion danger if pressurized (see section 4)
4. Air outlet
5. Air inlet
6. Emergency stop
7. Warning, under tension
8. Warning, exhaust
6 Operating Instructions
6.1 Initial Start-up
Description
To start up the dryer for the first time or after a long period of standstill, proceed as follows:
1. Open the dryer bypass valves, if installed.
2. Close the air supply towards the PDP-sensor and unplug the PDP-sensor.
3. Cut off the air supply from the compressor towards the dryer by closing the external inlet
valve.
4. Close the external outlet valve, if installed.
5. Start the compressor and wait for pressure.
6. Slowly open the external inlet valve.
7. Check the connections of the dryer for air leaks and repair if necessary.
8. Switch on the voltage to the dryer.
9. Switch on the dryer.
10. Let the dryer operate for several hours with the external outlet valve closed.
