Atlas Copco Cobra mk1 Quick Start Guide

Atlas Copco Construction Tools Inc.
37 Capital Drive, West Springfield MA 01089
Tel (800) 760–4049 Fax (800) 952–7975
www.atlascopco.com/cto
Description Shank Blade Size Working Length Weight Part Number
(in) (in) (in) (lbs)
1 Moil Point 1 1/8 x 6 14 6 3083 3267 00
18 7 3083 4015 10
24 9 3083 4015 20
36 12 3083 4015 30
1 1/4 x 6 14 7 3083 3285 00
18 8 3083 4000 10
24 11 3083 4000 20
36 15 3083 4000 30
2 Narrow Chisel 1 1/8 x 6 14 6 3083 3268 00
18 7 3083 4016 10
24 9 3083 4016 20
36 12 3083 4016 30
1 1/4 x 6 14 7 3083 3286 00
18 8 3083 4001 10
24 11 3083 4001 20
36 15 3083 4001 30
3 Wide Chisel 1 1/8 x 6 3 x 2 15 7 3083 3289 00
3 x 2 18 8 3083 4017 00
3 x 2 24 10 3083 4017 10
3 x 2 36 15 3083 4017 20
1 1/4 x 6 3 x 2 15 8 3083 3295 00
3 x 2 18 10 3083 4002 00
3 x 2 24 12 3083 4002 10
3 x 2 36 18 3083 4002 20
4 Asphalt Cutter 1 1/8 x 6 5 x 6 13 9 3083 3292 00
1 1/4 x 6 5 x 6 13 9 3083 3298 00
5 Digging Chisel 1 1/8 x 6 3 x 9 15 9 3083 3297 00
1 1/4 x 6 3 x 9 15 9 3083 3921 00
6 Clay Spade 1 1/8 x 6 5.5 x 9 15 12 3083 3299 00
1 1/4 x 6 5.5 x 9 15 10 3083 3293 00
7 Frost Wedge 1 1/8 x 6 2 x 12 16 11 3083 3294 00
1 1/4 x 6 2 x 12 16 12 3083 3300 00
8
Shank for
Tamping pad* 1 1/8 x 6 9 4 3083 3269 00
1 1/4 x 6 9 5 3083 3287 00
9 Tamping pad* 7 (diameter) 16 3083 3301 00
6 x 6 18 3083 3302 00
* choose shank size appropriate for your mk1 model (item 8)
A tool for every job
At Atlas Copco, we maintain a comprehensive range
of chisels so that you can select the right tool for
the job.
Atlas Copco chisels are among the hardest
wearing on the market. A controlled heat treat-
ment process imparts both strength and high wear
resistance to deep surface layers while maintaining a highly
shock resistant central core to resist breakage.
The striking face is end-milled resulting in better con-
tact between the piston and the tool, improved transfer of
energy, as well as less vibration and wear on both hammer
and chisel.

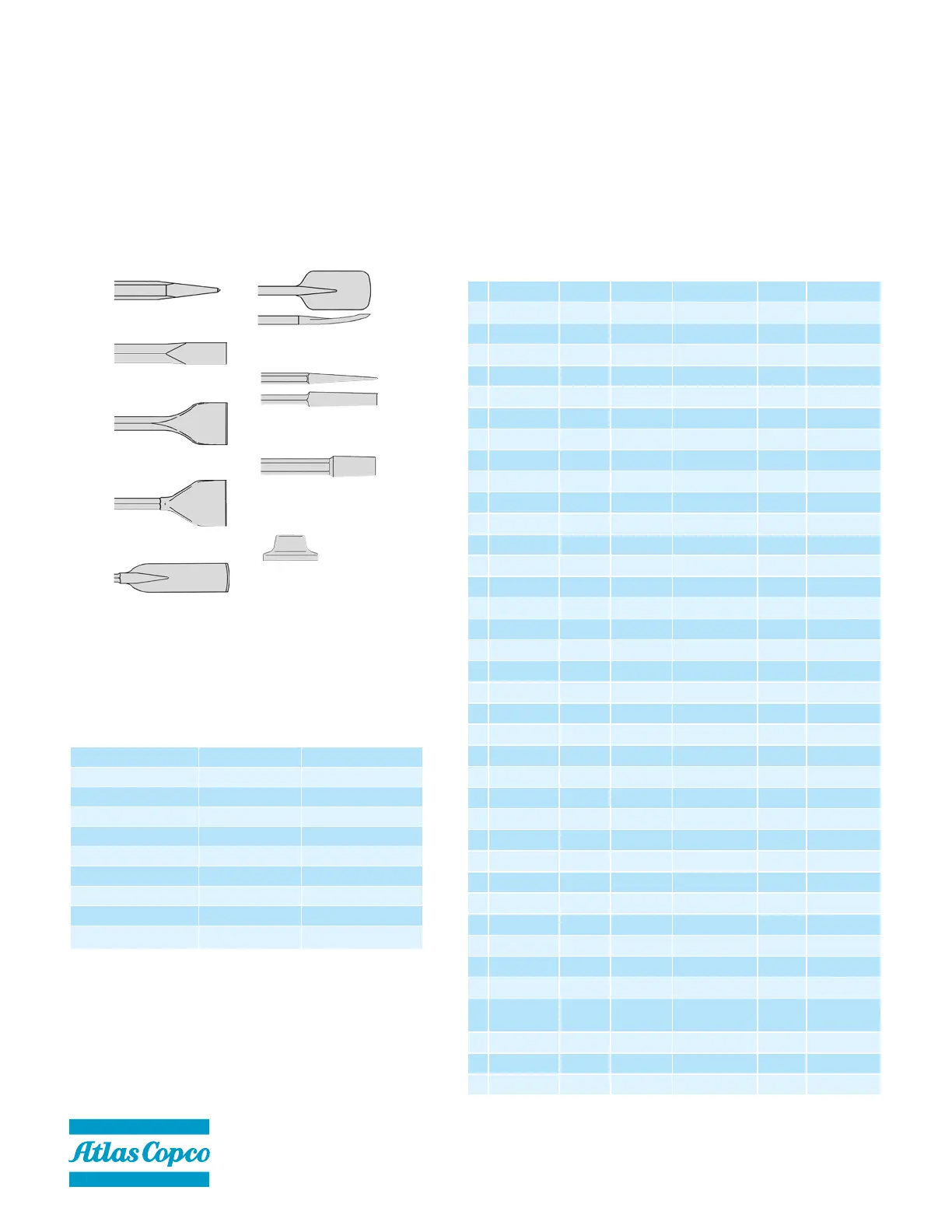

1. Moil point
2. Narrow chisel
3. Wide chisel
4. Asphalt cutter
5. Digging chisel
7. Frost wedge
8. Shank for
tamping pad*
9. Tamping pad*
6. Clay spade
Accessories
Description Size Part number
Gloves, gel-filled, general XL
9800 0070 01
XXL
9800 0098 01
Gloves, gel-filled, summer L
9800 0434 01
XL
9800 0435 01
Gloves, gel-filled, winter L
9800 0290 01
XL
9800 0291 01
2-stroke oil 1.0 litre / 0.26 gallon
9238 2743 50
Cart
9234 0006 54
Transport box
9234 0009 91
Use only authorized parts. Any damage or malfunction caused by the use of unauthorized parts is not
covered by Warranty or Product Liability.
Tools
9245 9996 78a 7/06 X,000 Copyright © 2005, Atlas Copco Construction Tools Inc.
