Atlas Copco DD User Manual

76 2904 0108 04
DD - DDP - PD - QD : 44 - 60
Notes
1. Included in the element kit.
2. Optional.
3. Not on the QD filters.
4. Only on DD and PD filters.
5. Only on DDp and QD filters.
8
20
10
22
21
9
25
6
4
2
12
7
26
1
5
3
24
6
23
11
28
27

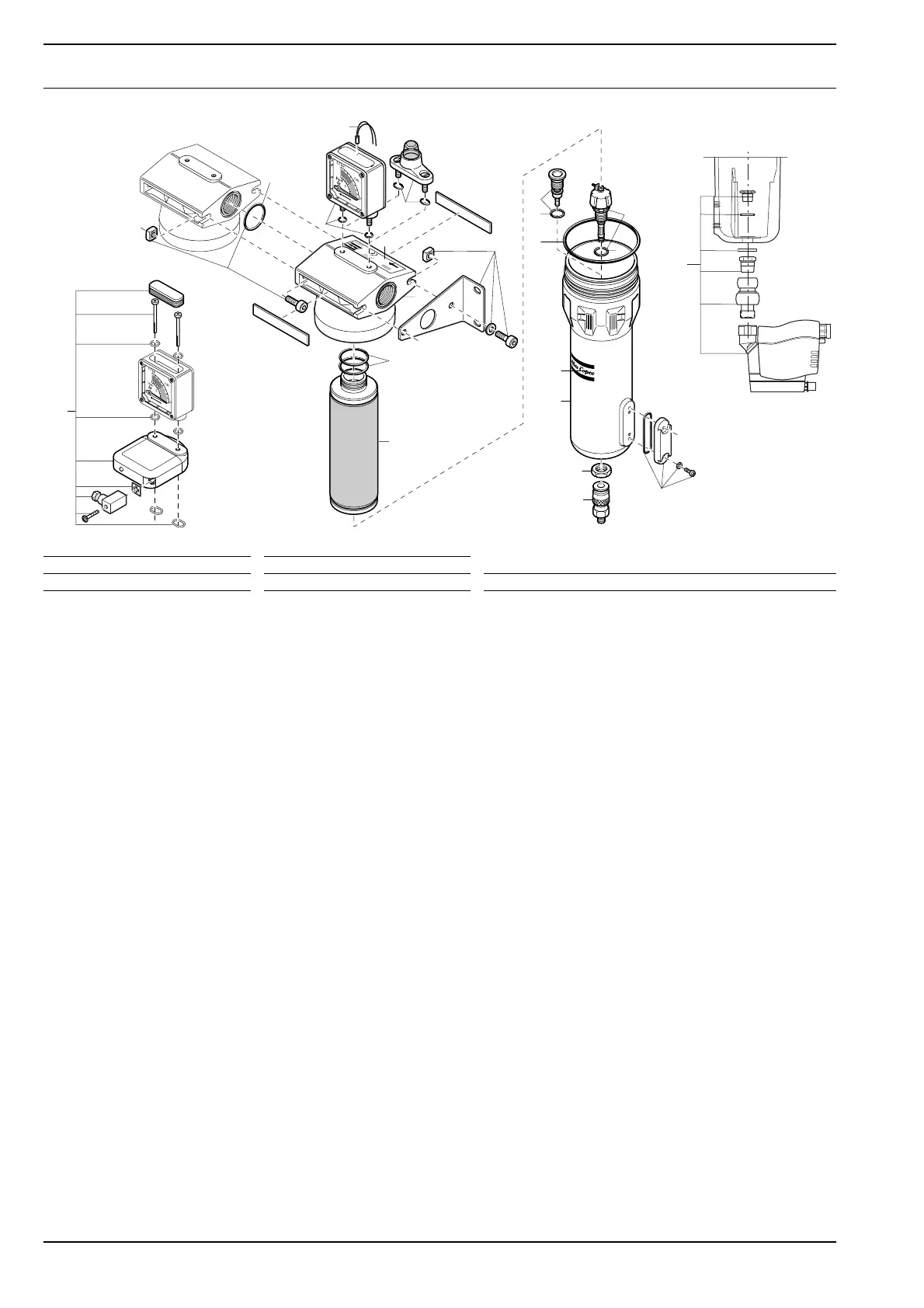

DD - DDp - PD - QD : 44 DD - DDp - PD - QD : 60
Ref. Part Number Note Qty Ref. Part Number Note Qty Designation
– 8102 2601 25 – 8102 2601 66 DD filter complete, G 1”
– 8102 2608 93 – – DD filter complete, G 3/4”
– 8102 2605 62 – 8102 2606 04 DD filter complete, NPT 1”
– 8102 2609 01 – – DD filter complete, NPT 3/4”
– 8102 2601 41 – 8102 2601 82 DDp filter complete, G 1”
– 8102 2624 02 – – DDp filter complete, G 3/4”
– 8102 2605 88 – 8102 2606 20 DDp filter complete, NPT 1”
– 8102 2622 79 – – DDp filter complete, NPT 3/4”
– 8102 2601 33 – 8102 2601 74 PD filter complete, G 1”
– 8102 2623 03 – – PD filter complete, G 3/4”
– 8102 2605 70 – 8102 2606 12 PD filter complete, NPT 1”
– 8102 2623 11 – – PD filter complete, NPT 3/4”
– 8102 2601 58 – 8102 2601 90 QD filter complete, G 1”
– 8102 2623 45 – – QD filter complete, G 3/4”
– 8102 2605 96 – 8102 2606 38 QD filter complete, NPT 1”
– 8102 2623 52 – – QD filter complete, NPT 3/4”
– 2901 0529 00 – 2901 0532 00 DD and DDp element kit
– 2901 0530 00 – 2901 0533 00 PD element kit
– 2901 0531 00 – 2901 0534 00 QD element kit
1– 11– 1Head
2– 12– 1Bowl
3–
1
13 –
1
1 Filter element
4 0663 2109 60
1
1 4 0663 2109 60
1
1 O-ring, 76x3
5 0663 2109 64
1
2 5 0663 2109 64
1
2 O-ring for filter, 30x2
6 0663 2111 29
1
1 6 0663 2111 29
1
1 O-ring, 18x3,5
7 1617 7046 00 1 7 1617 7046 00 1 Nut, G3/8”
8 – 8 – Differential press. indicator
9 1617 7269 00
2/3
1 9 1617 7269 00
2/3
1 Differential press. gauge
10 – 1 10 – 1 Identification label
11a 8055 2164 47
2
1 11a 8055 2164 47
2
1 Potential free contact, normally open
11b 8055 2164 88
2
1 11b 8055 2164 88
2
1 Potential free contact, normally closed
12 0690 1106 01 2 12 0690 1106 01 2 Atlas Copco decal
A080-070401-010
Vendor Manual Atlas Copco A090-070423-004 PD & DD Filters Instruction Manual
Q-Pulse Id VM260
Active 09/09/2013
Page 78 of 90
