4.3. Icons used

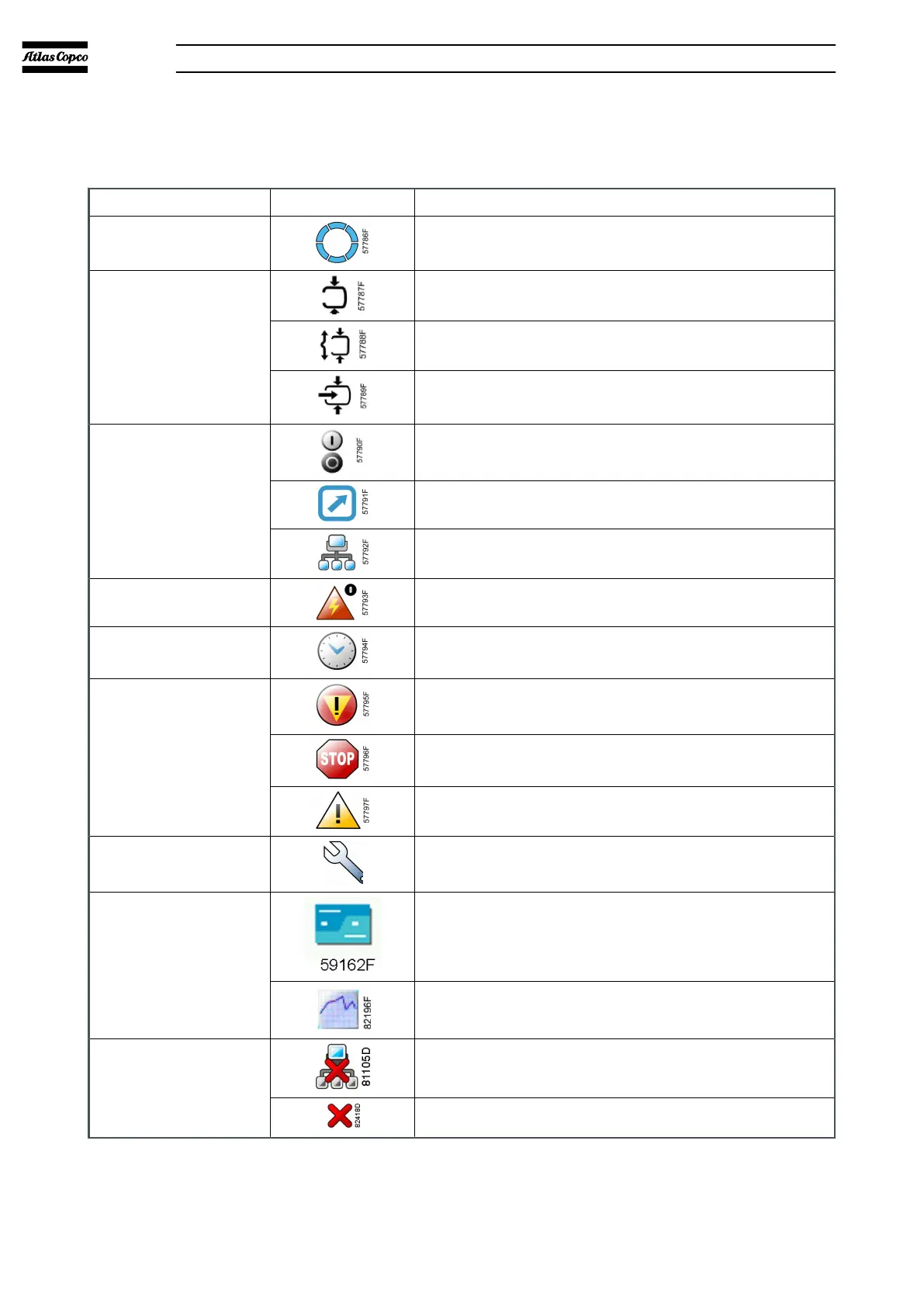

Table 14 Status icons
Name
Icon
Description
Stopped/Running
When the pump stops, the icon does not rotate.
When the pump operates, the icon rotates.
Pump status
Motor stopped
Running purge and intermediate states
Running vacuum control
Machine control
mode
Local start or stop
Remote start or stop
Network control
ARAVF ARAVF is active
Week timer Week timer is active
Active protection
functions
Emergency stop
Shutdown
Warning
Service Service is necessary
Main screen display
Value lines display icon
Chart display icon
General icons
No communication/network fault
Not valid
07/2021 - ©Atlas CopcoPage 311950840208_A
Elektronikon® graphic controller
