Procedure
Start from the Main screen (refer to Main screen on page 33):
▪ Use the Scroll keys to move the cursor to Menu action button.
▪ Push the Enter key

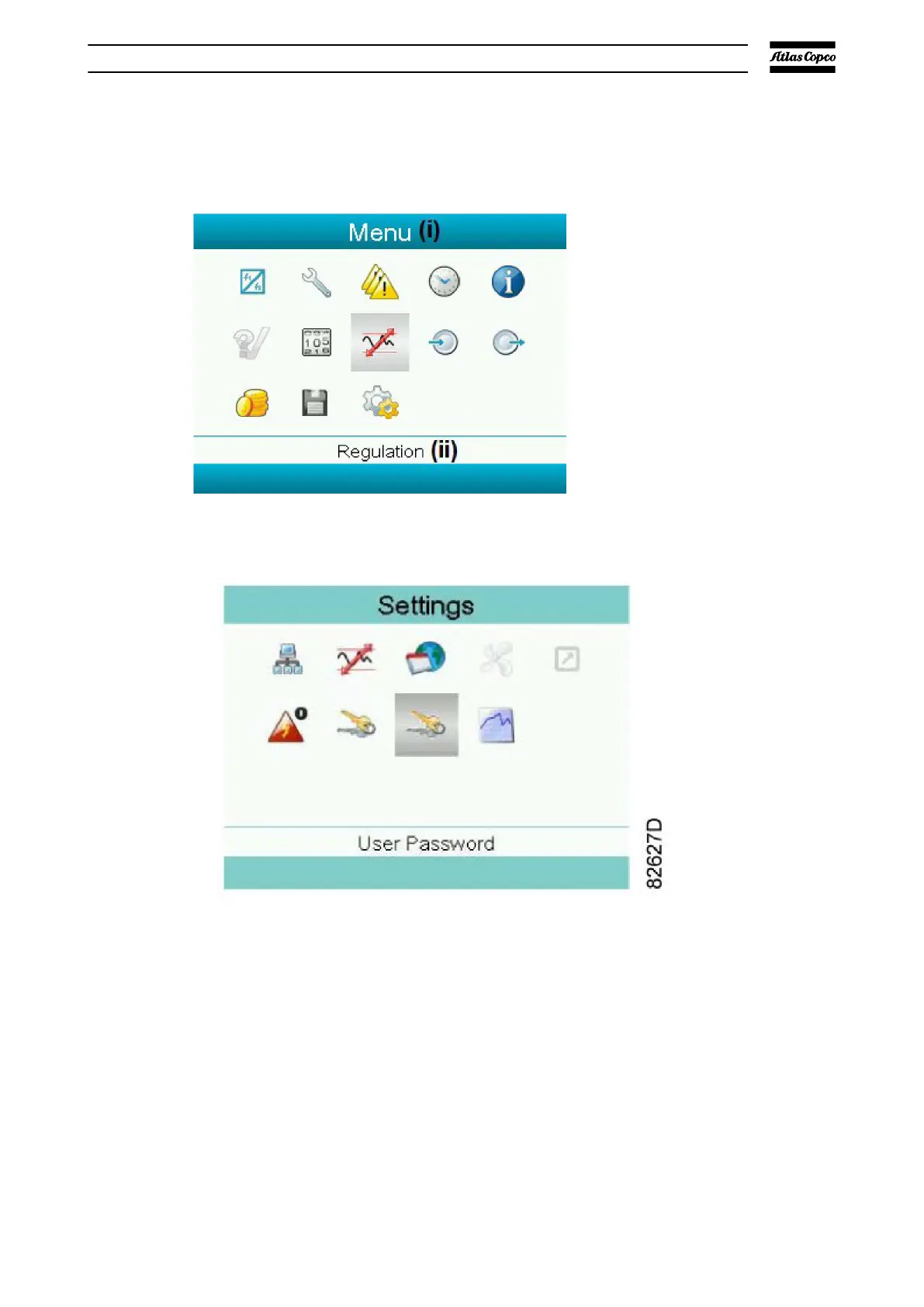

. The screen that follows is shown:
▪ Use the Scroll keys to move the cursor to the Settings icon (refer to the Menu
icon).
▪ Push the Enter key. The screen that follows is shown:
The screen shows different icons. By default, the User Password icon is
selected. The status bar shows the description related to the selected icon. Each
icon covers one or more items, such as:
▪ Access level
▪ Elements
▪ Fan
▪ Converters
▪ Motor/Starter
▪ General
▪ ARAVF
▪ Network
Elektronikon® graphic controller
07/2021 - ©Atlas CopcoPage 541950840208_A
