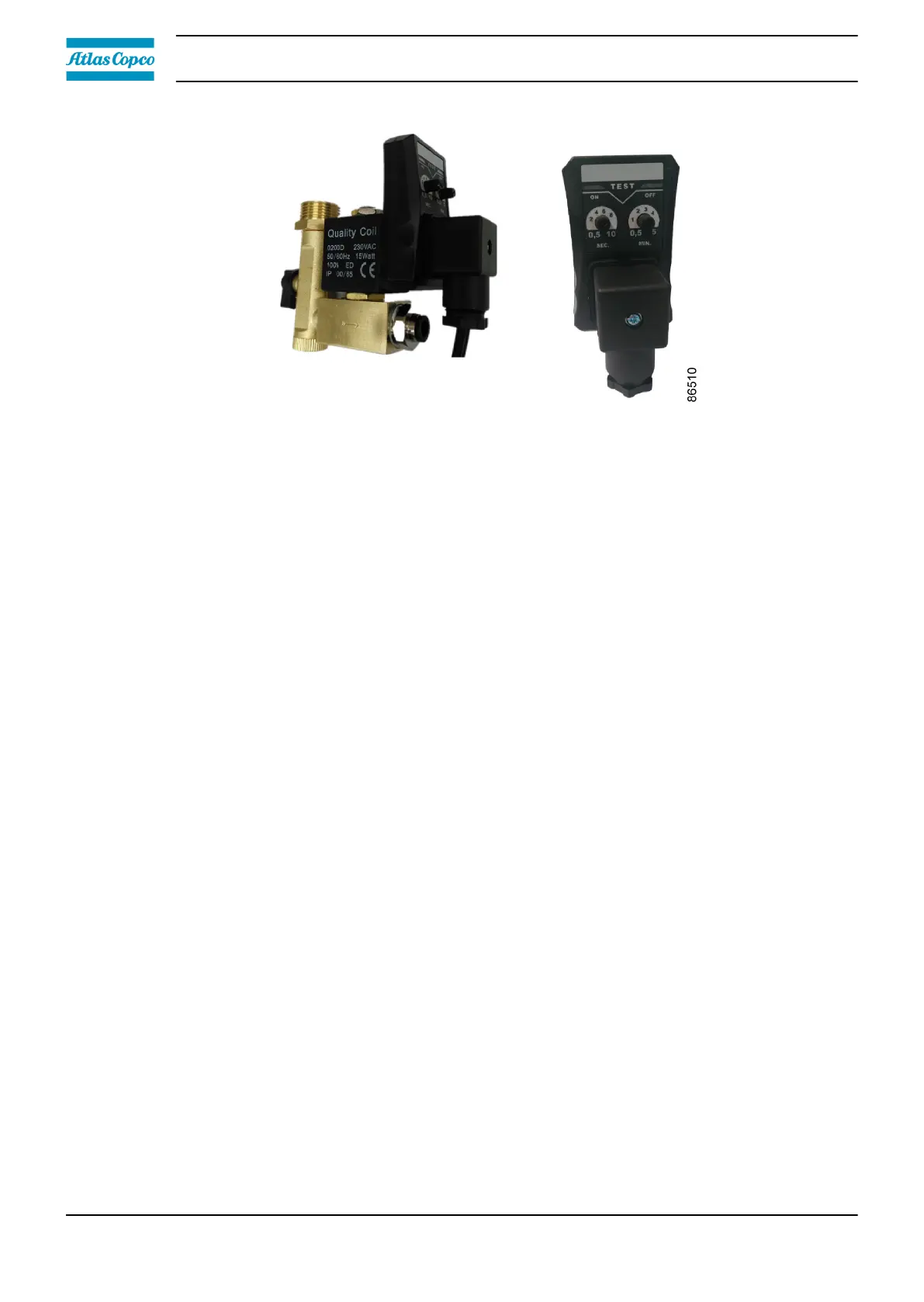

Figure 5: Drain system
Time settings of time drain
Model MIC-A
1. Switch on the power.
Note: the voltage must comply with the voltage mentioned on the coil.
2. MIC-A will start with its pre-set time setting of 1min OFF and 1 sec ON time.
3. You can change the pre-set values to anything ranging from 0.5-10 sec and 0.5-5 Min.
4. To change the ON time simply rotate the black knob, the point of the arrow is the drainage time,
then the change is saved.
5. To change the OFF time simply rotate the black knob, the point of the arrow is the drainage
interval, then the change is saved.
6. Part number for the drain is 1639614128. Please contact our TS engineer for order.
Instruction book
16 2920 7210 40
