Note:
T
o keep the compressed air net free of condensate, start the dryer before starting the
compressor and stop the compressor before stopping the dryer
.
Procedure
1.
Close the dryer inlet and outlet valve (customer
’s installation)..
2.

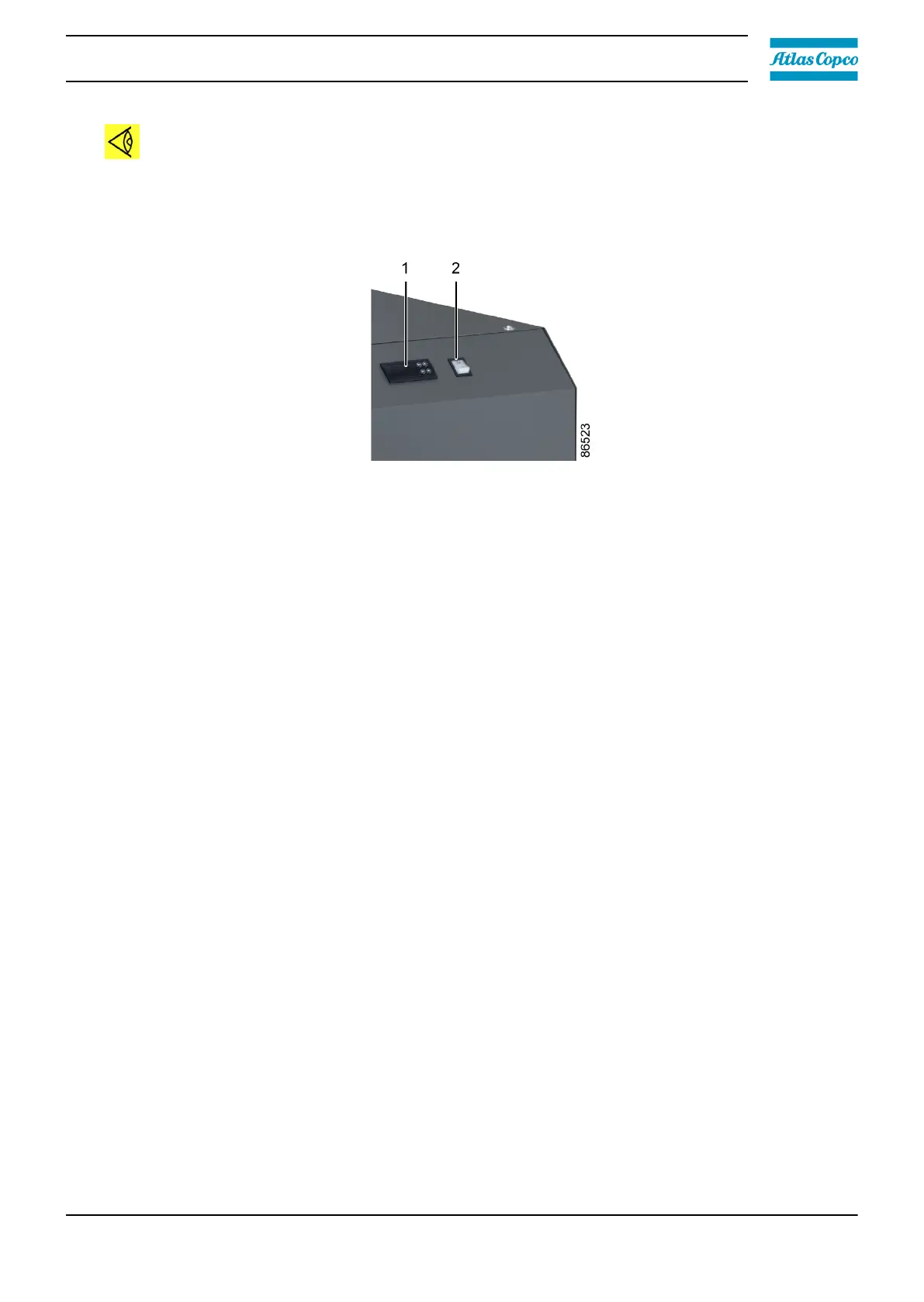

Press dryer on/off switch (2) and the dryer will stop.
3.
If provided, open the dryer by-pass valve.
Instruction book
2920 7210 40
25
26
28
Table of Contents
Default Chapter
4
Table of Contents
4
1 Safety Precautions
6
Safety Icons
6
General Safety Precautions
6
Safety Precautions During Installation
7
Safety Precautions During Operation
8
Safety Precautions During Maintenance or Repair
9
Dismantling and Disposal
10
2 General Description
12
Introduction
12
Air System
14
Refrigerant System
15
Automatic Regulation System
16
Electrical System
17
Drain System
17
3 Installation
19
Dimension Drawings
19
Electrical Connections
19
Installation Proposal
20
Pictographs
22
4 Digital Controller
23
5 Operating Instructions
25
Warnings
25
Dryer Control Panel
25
Starting
25
During Operation
26
Stopping
26
6 Maintenance Instructions
28
7 Device Settings
29
8 Problem Solving
30
9 Technical Data
33
Reference Conditions and Limitations
33
Air Dryer Data
33
Correction Factor
37
