2.3 Oil system

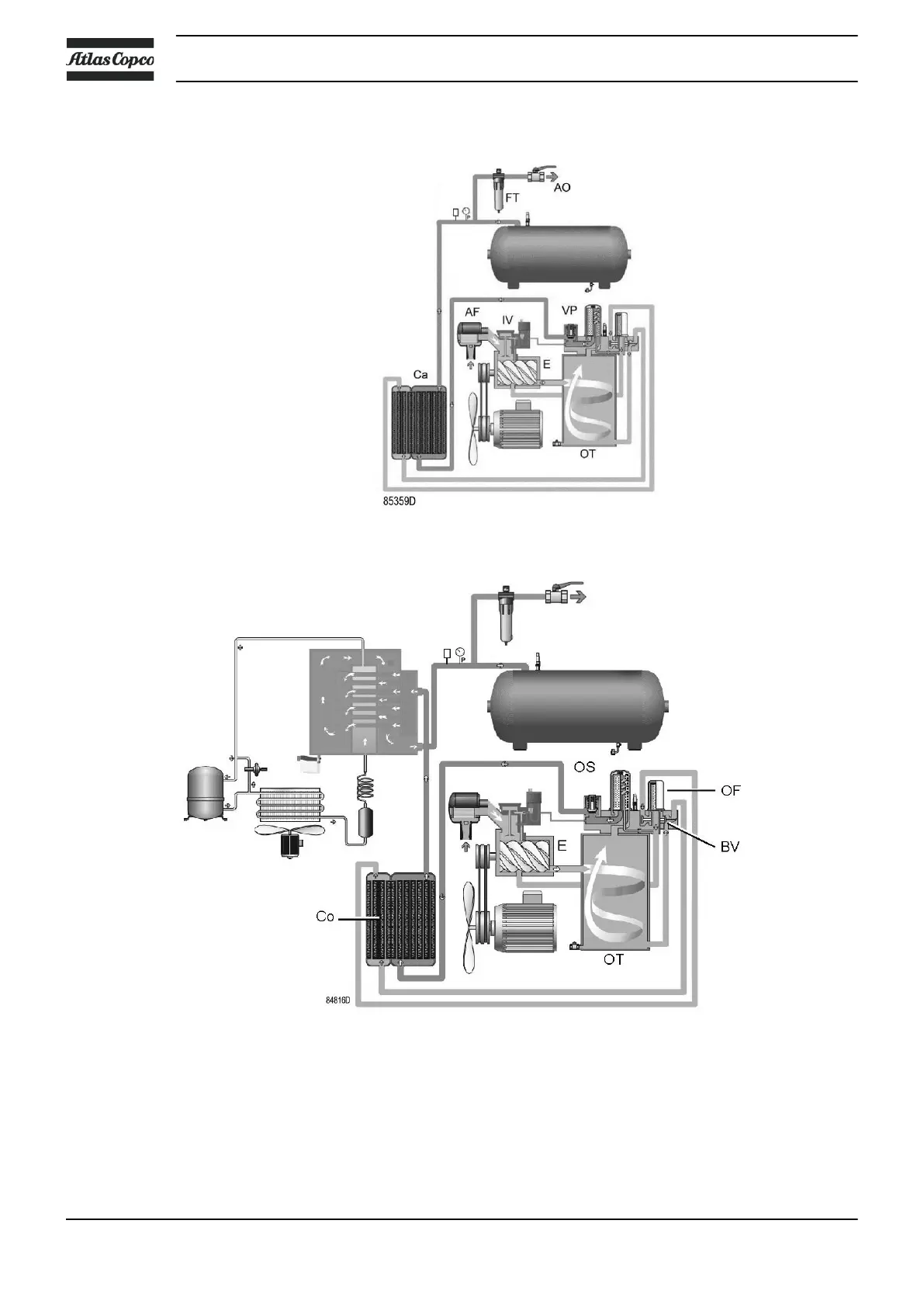

Oil system, G 15L, G 18 and G 22 Pack
Oil system, G 15L, G 18 and G 22 Full-Feature
Air pressure in the oil separator tank (OT) forces the oil from the tank to compressor element (E)
via oil cooler (Co) and oil filter (OF). Compressed air and oil flow into oil separator/tank (OT)
where most of the oil is separated from the air by centrifugal action. The remaining oil is removed
by oil separator (OS) and returns to the oil circuit via a separate line. The minimum pressure
Instruction book
16 2920 7119 21
