Checking the display

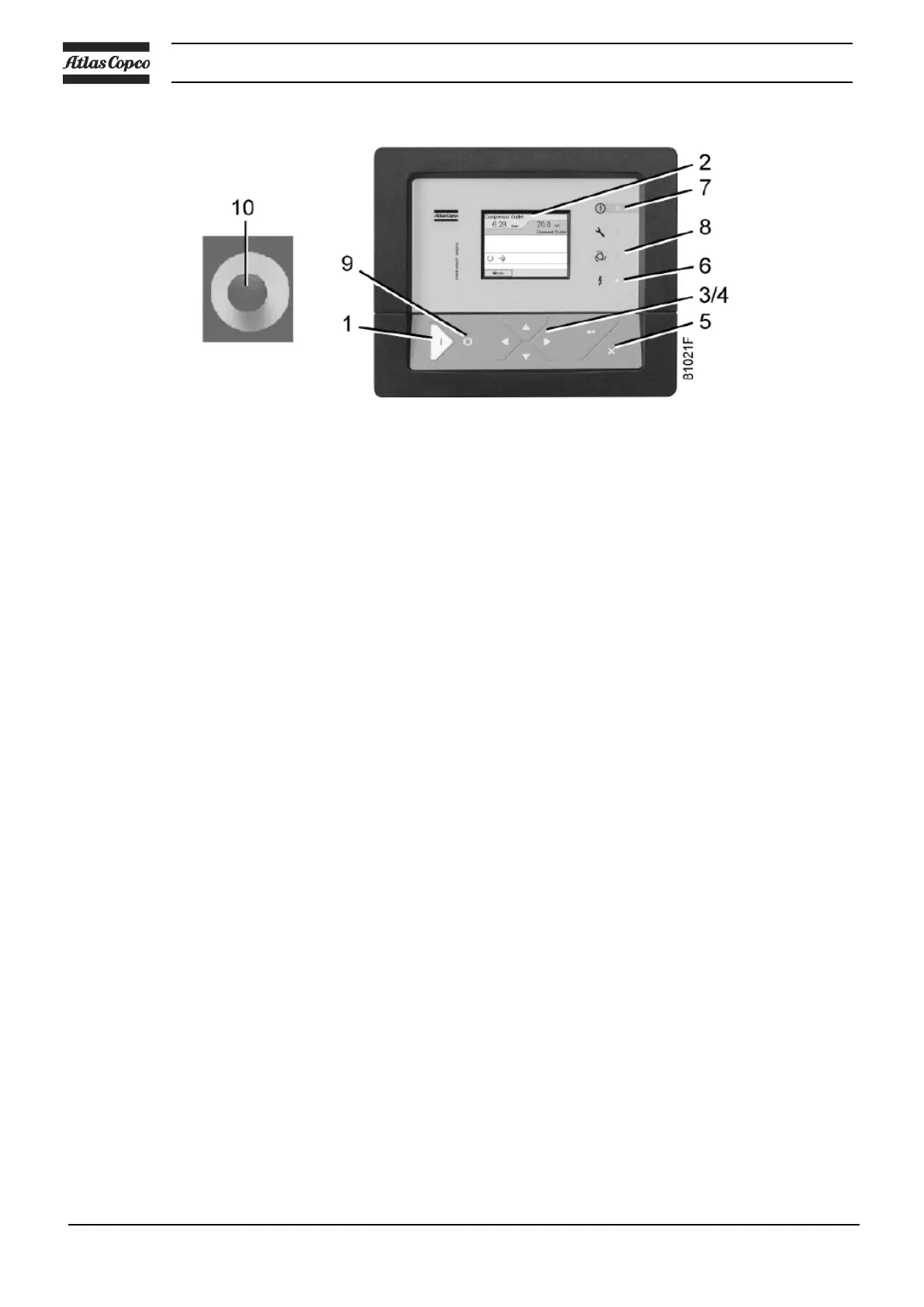

Control panel Elektronikon® Graphic
Check the display (2) regularly for readings and messages. The display normally shows the vacuum pump
vacuum pressure, while the status of the vacuum pump is indicated by means of a number of icons.
Remedy the trouble if alarm LED (7) is lit or flashes, see section Icons used. The display (2) will show a
service message if a service plan interval has been exceeded or if a service level for a monitored
component has been exceeded.
Carry out the service actions of the indicated plans or replace the component and reset the relevant timer,
see section Service menu.
5.4 Taking out of operation
Disconnect the vacuum pump from the mains.
Shut off and vent the part of the system which is connected to the vacuum pump by opening the
plug located on the lit of the air inlet filter. Isolate the vacuum pump from the vacuum system.
Drain the oil.
5.5 Stopping
Press stop button (9). Automatic operation LED (8) goes out and the vacuum pump stops.
To stop the vacuum pump in the event of an emergency, press emergency stop button (10). Alarm
LED flashes (7).
Remedy the problem cause, unlock the button by pulling it out.
Navigate to the Stop icon on the display by means of the navigation keys (3/4) or scroll keys and
press the Select key.
Press Reset.
Do not use emergency stop button (10) for normal stopping!
Close the air inlet valve.
Switch off the voltage.
