Atlas Copco GVS 16A Instruction Book

Instruction book
6996 0224 30 15

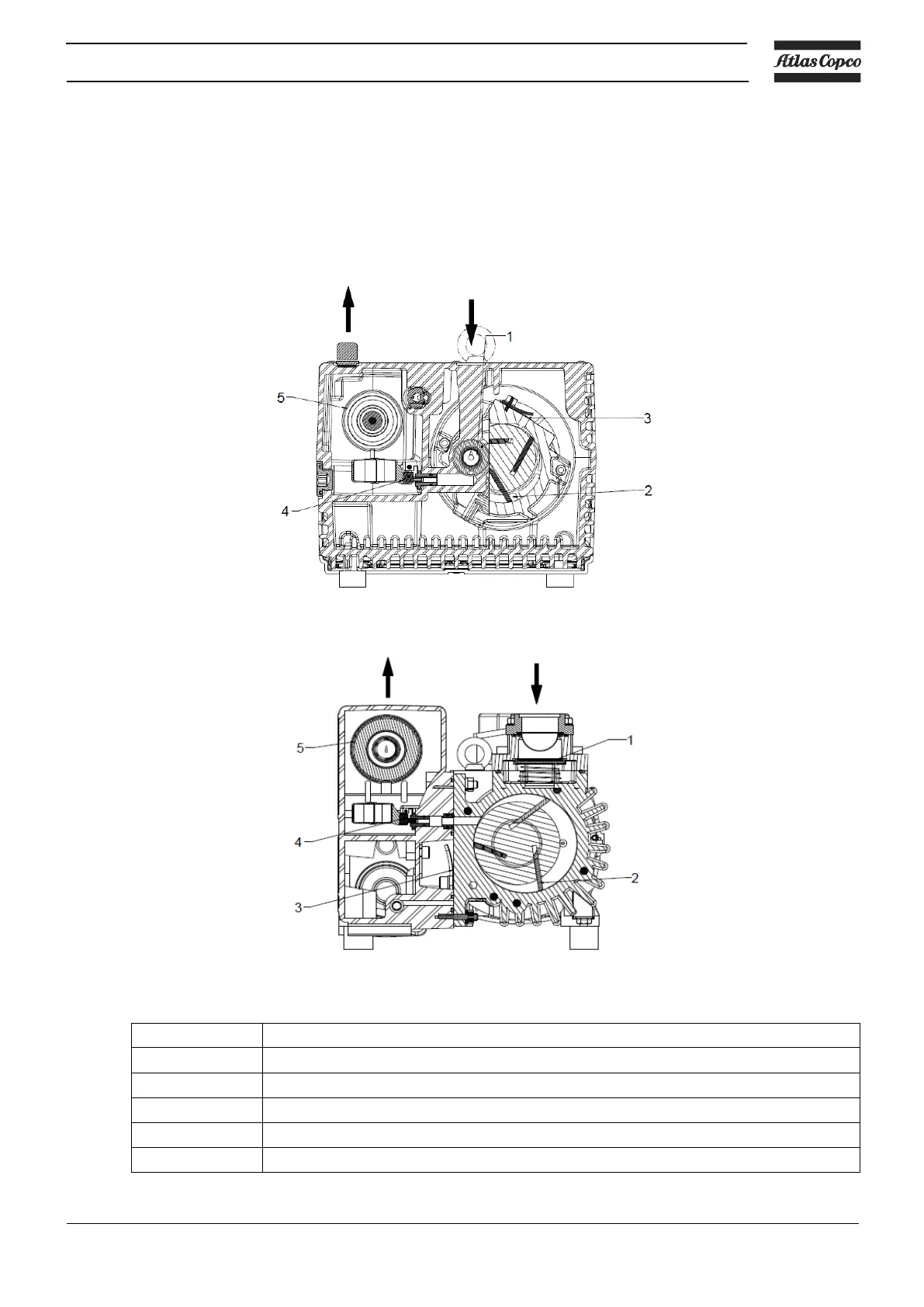

2.3 Air flow
 Air drawn through the air intake filter (optional), the inlet protection screen and the inlet non-return
valve is displaced by the vacuum pump element towards the air end exhaust valve. This valve ejects a
mixture of air and oil into the exhaust filter element. After passing the exhaust filter element, clean air -
conditioned to a few parts per million - is discharged through the outlet.
 The vacuum pump is driven by an electric motor.
GVS 16 – 25A
GVS 40-300A
Reference
Designation
1
Inlet non-return valve
2
Vane (vacuum pump element)
3
Exhaust valve
4
Oil recovery valve
5
Exhaust filter element
