3.3 Motor installation (if applicable)
It is possible to install any type of electric or hydraulic motor of which the specifications comply to the
technical data, with flange and shaft corresponding to:
M112 – B14 (FT130) size as per standard IEC60072-1 (for Europe and Wide motor versions) and
motor frame size 213 with 184 TCH flange for Nema motor version for GVS 100A
M112 – B5 (FF215) size as per standard IEC60072-1 (for Europe and Wide motor versions) and motor
frame size 213 TC for Nema motor version for GVS 200A
M132 – B14 (FT215) size as per standard IEC60072-1 (for Europe and Wide motor versions) and
motor frame size 256 TC with 215 TC flange for Nema motor version for GVS 300A
Motor installation instructions
Remove the fixing clamp from the connecting joint on the pump.
Fit the assembly on the motor shaft taking into account the stated measure.
Tighten screw to firmly fix the assembly to the shaft.

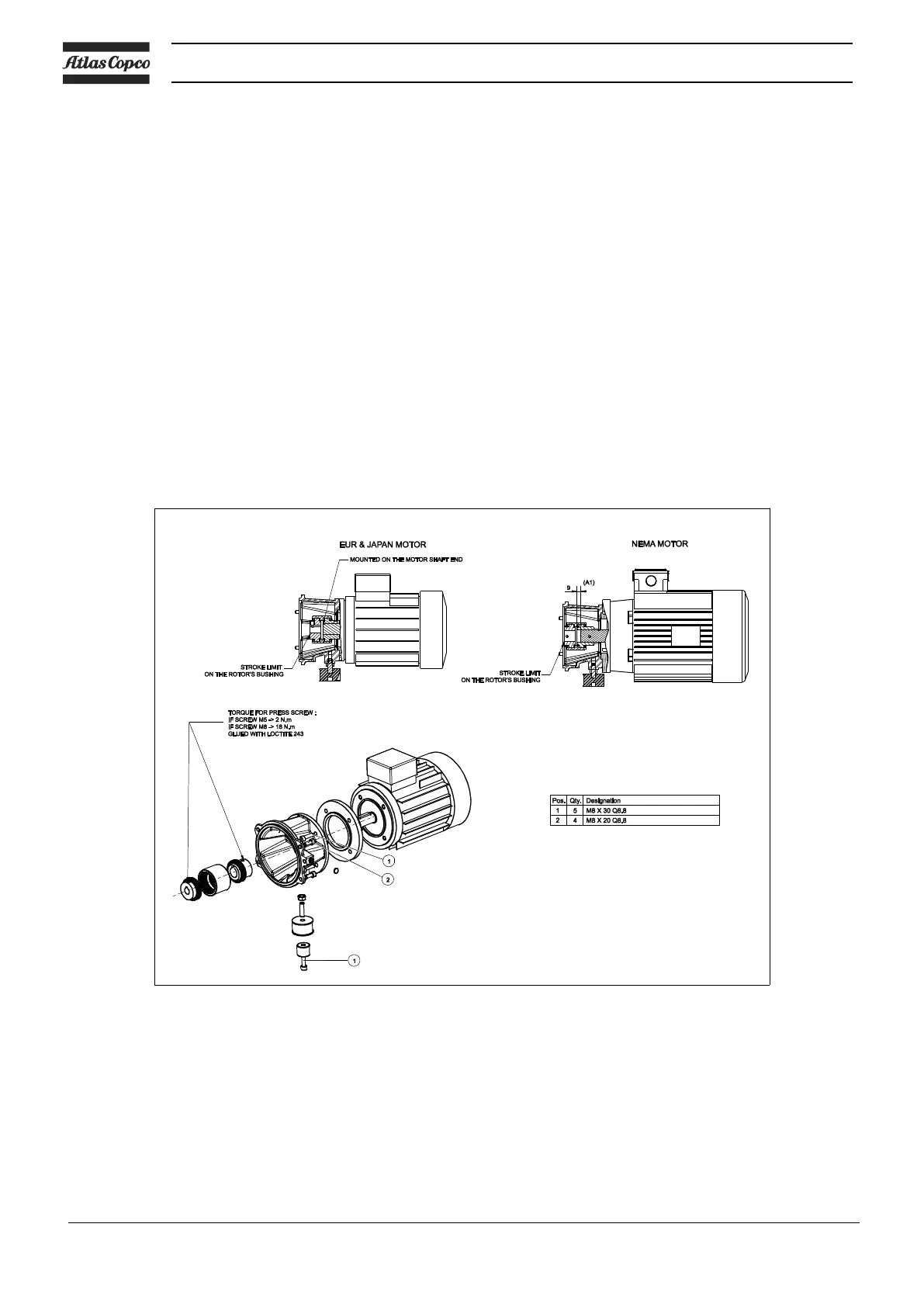

GVS 100A Motor coupling half position
