Instruction book
6996 0224 30 43

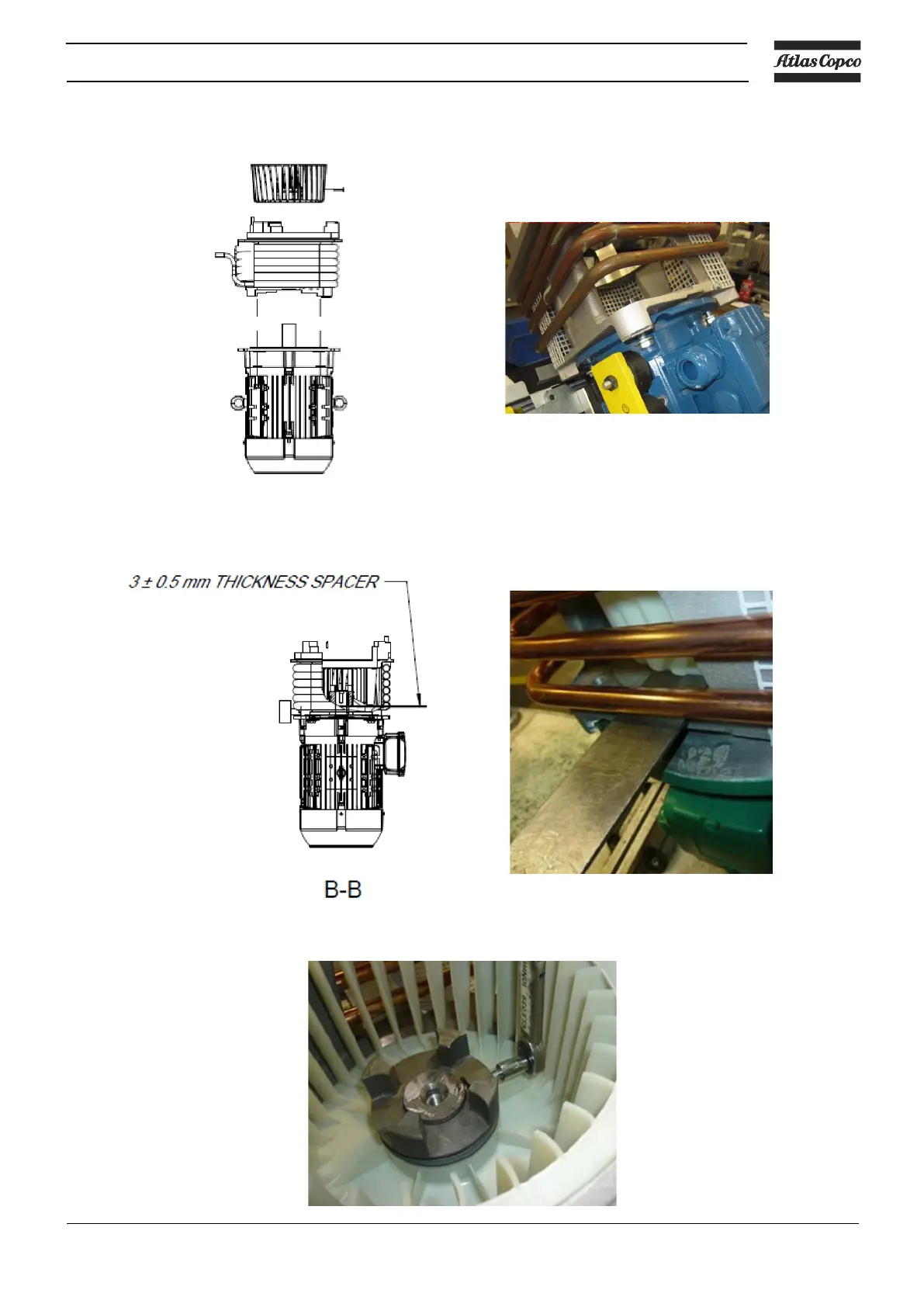

3. Place motor in vertical orientation so that motor shaft facing upwards.
4. Ensure the turbine support on a 3mm thickness spacer.
5. Tighten the screw to 2 N.M torque. Apply LOCTITE 243.
