2.6 Control panel

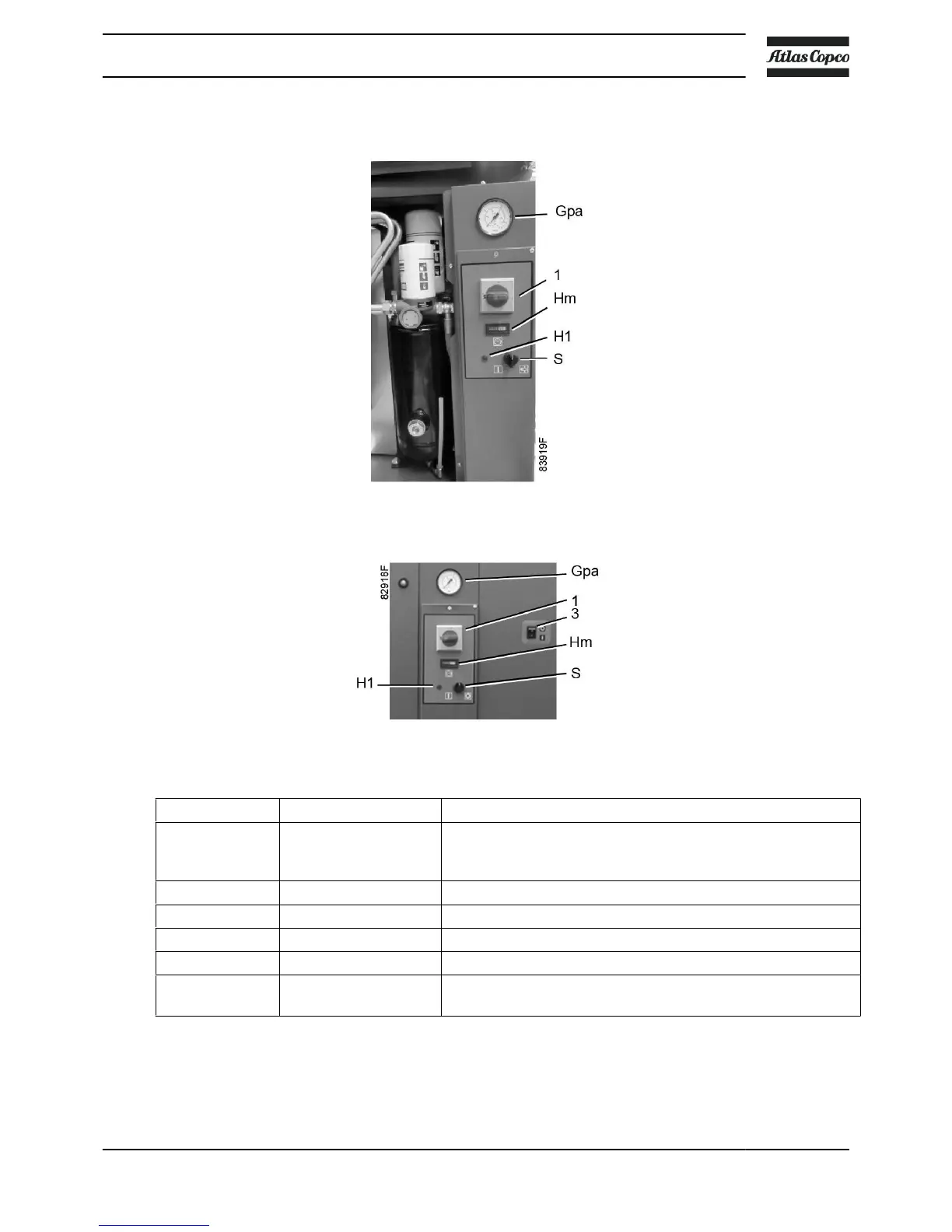

Control panel GX Pack
Control panel GX Full Feature
Reference Designation Designation
1 Main switch -
emergency switch
To power the unit. Also used to stop the compressor in the event
of an emergency and to reset the thermal overload of the electric
motor by switching it to 0 and back to I.
3 Dryer ON/OFF switch (Only on Full-Feature units)
Gpa Pressure gauge The pointer indicates the actual working pressure.
Hm Hour meter Indicates the total running time.
H1 Lamp Lights up when the machine is operating.
S Switch Start/Stop switch (GX 2 EP up to GX 5 EP)
Load/unload switch (GX 7 EP)
Instruction book
2920 7105 31 19
