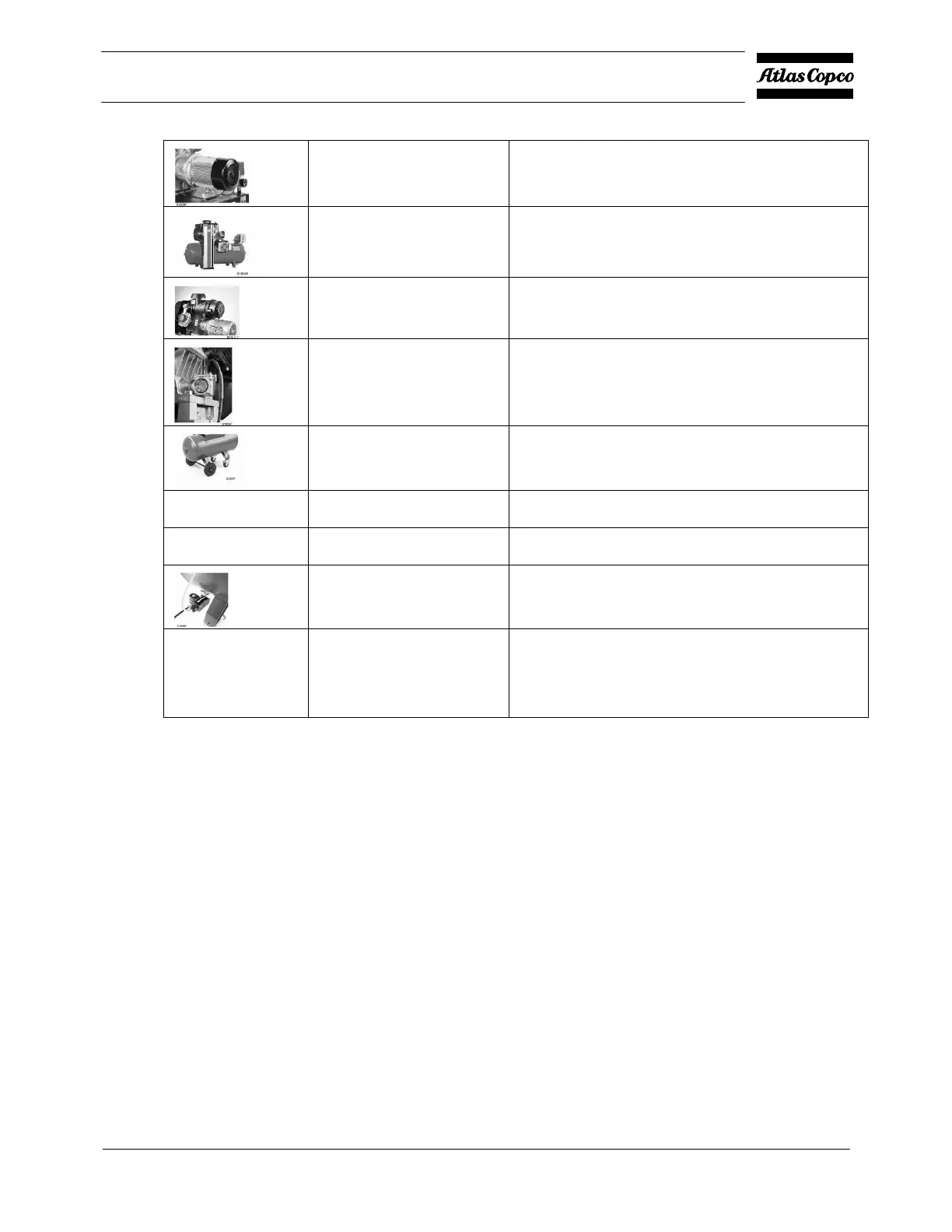

Instruction book
Motor anti-condensation
heaters and thermistor
protection
Used with LE 2-20 with 400V/50Hz and
460V/60Hz
CD adsorption dryer LE 2-3 on 90 and 250 receiver
Heavy duty air inlet filter For PP-BM-TM-FF versions
Oil level switch
make contact (NO)
break contact (NC)
Receiver wheel set Wheelset for 90/250 receiver
Power supply cable
(3 m)
with red CEE 3-pole plug 16A
L = 3 mtr
Auto restart
offload valve (solenoid valve to make sure unit will
start after power failure)
Timer drain
(solenoid operated)
all Receiver Mounted units
Used For DOL 230v/50hz
and 400v/50hz Units
Invalid Combinations for Any other voltages or
frequencies and YD units
2.3 Air flow
LE 2 up to LE 20
Air drawn through air filter (AF) and inlet silencer (1) into cylinders (2 and 3) is compressed, then discharged
through cooler piping (4) and (5)”and check valve (CV) / unloader valve (UA)” into air receiver (AR).
