52 2920 7089 80
Instruction book
4 Operating instructions
4.1 Initial start-up
If the compressor has not run for the past 6 months (at initial start-up check the date on the data plate), it is
strongly recommended to improve the lubrication of the compressor element: drain the oil, refill the compressor
with the same oil while turning the crankshaft.
1. For Tank-mounted and base mounted units, remove the RED transport brackets from underneath
the compressor.
2. Check the electrical installation, which must be in accordance with the instructions given in Electrical
connection.
3. LE are filled with Piston Fluid compressor oil. Check that the oil level is still at the top of the red circle of
sight-glass (SG).
4. Switch on the voltage. Start the motor.
5. Check the operation of the air pressure switch. See section Adjustment of pressure switch Check the
operation of pilot valve (RV) on LE Trolley. See section Adjustment of pilot valve.
6. On LE 15 and 20 compressors, check for correct direction of rotation, as indicated by the arrow on the fan
housing
4.2 Starting
LE
1. On LE check the oil level, which must be at the top of the red circle of sight-glass (SG). The
minimum level is the lower part of the red circle.
2. Switch on the voltage.

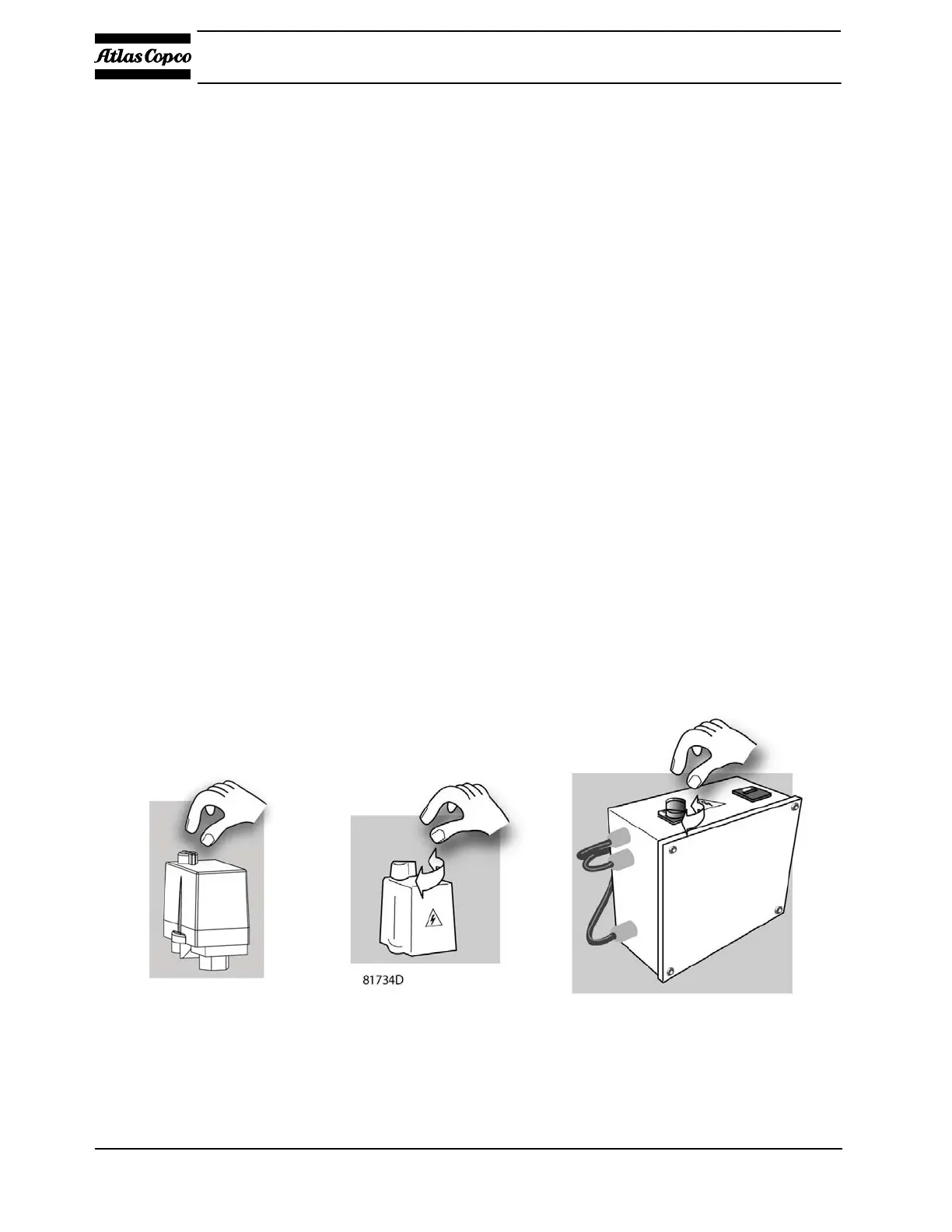

3. Turn the switch to position I (Auto), or turn switch (S1) to position I.
4. For the full feature units, also push the switch to position I to start up the refrigerant dryer. Approximately
10 minutes later, the nominal dewpoint will be reached.
