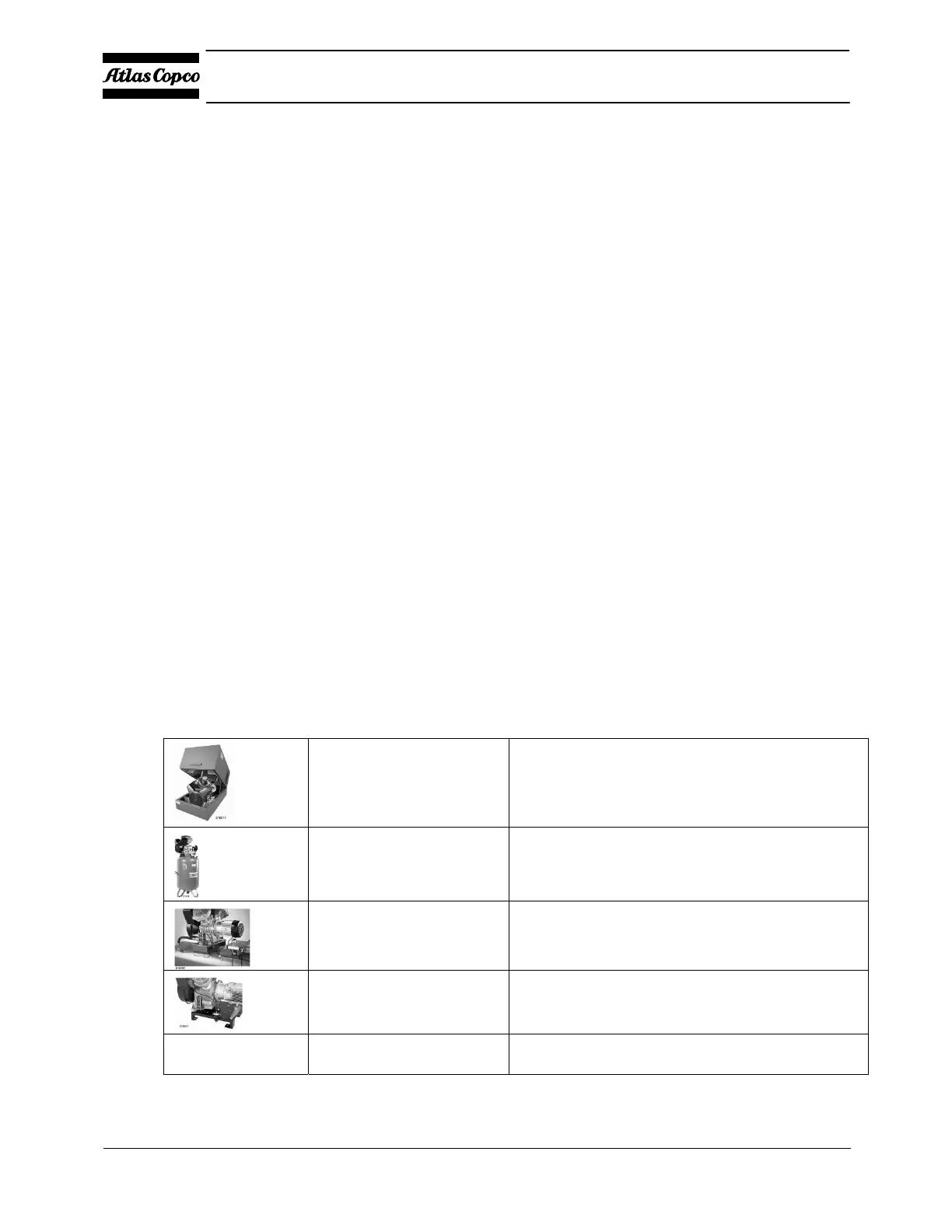

14 2920 7089 80
Instruction book
For LE 2 up to LE 3: The Compressor Block as described above, with flanged-on electric motor (M),
check valve (CV) and safety valve (SV)
For LE 5 up to LE 20: The Compressor Block as described above, with flanged-on electric motor (M)
and safety valve (SV)
The tank-mounted unit comprises:
For LE 2 up to LE 3: The Power pack mounted on a horizontal or vertical air receiver (AR) with air
outlet valve (AV), pressure gauge (Gp), safety valve (SV), air pressure switch with an on/off button
(MDR) and condensate drain valve (Dm).
For LE 5 up to LE 20: The power pack mounted on an air receiver (AR) with air outlet valve (AV),
pressure gauge (Gp), safety valve (SV), and condensate drain valve (Dm). An electric cubicle (8) includes
the motor starter. A separate air pressure switch (MDR) is provided.
The base-mounted unit is a fully operational unit with air pressure switch and on/off switches mounted on a
frame (no air receiver).
LE Trolley units are mobile compressors. They are equipped with either a directly flanged electric motor or a
petrol engine. The compressors have two outlet connections:
A connection for compressed air at working pressure.
A connection for compressed air at reduced pressure via a pressure regulator.
The Full-Feature compressor is a tank-mounted compressor provided with a Refrigerant dryer with DD &
PD filter. They remove moisture from compressed air by cooling the air to near freezing point. This causes
water to condense. The condensate is automatically drained. The air is warmed up before leaving the dryer.
2.2 Options
The compressors are extendible with the following options. For detailed information consult Atlas Copco.
Silencing hood
For 90 / 250 /475 Tank Mounted and Base Mounted
Units LE15 and LE20 are not available with hood.
Not as Tankmounted, Base Mounted or Sales Version
Receiver upgrade
Receiver size upgrade 90 to 250 Standard Receiver.
Vertical Receiver upgrade 90 or 250 to 250.
Only for 2 and 3hp 475 Receiver upgrade 90 or 250 to
475
Pneumatic drain
Not available for Trolley versions
Interstage drain
Not available
Transformer
100VA (for cubicle control voltage 400/3/50)
YD only
