Instruction book
Full-Feature

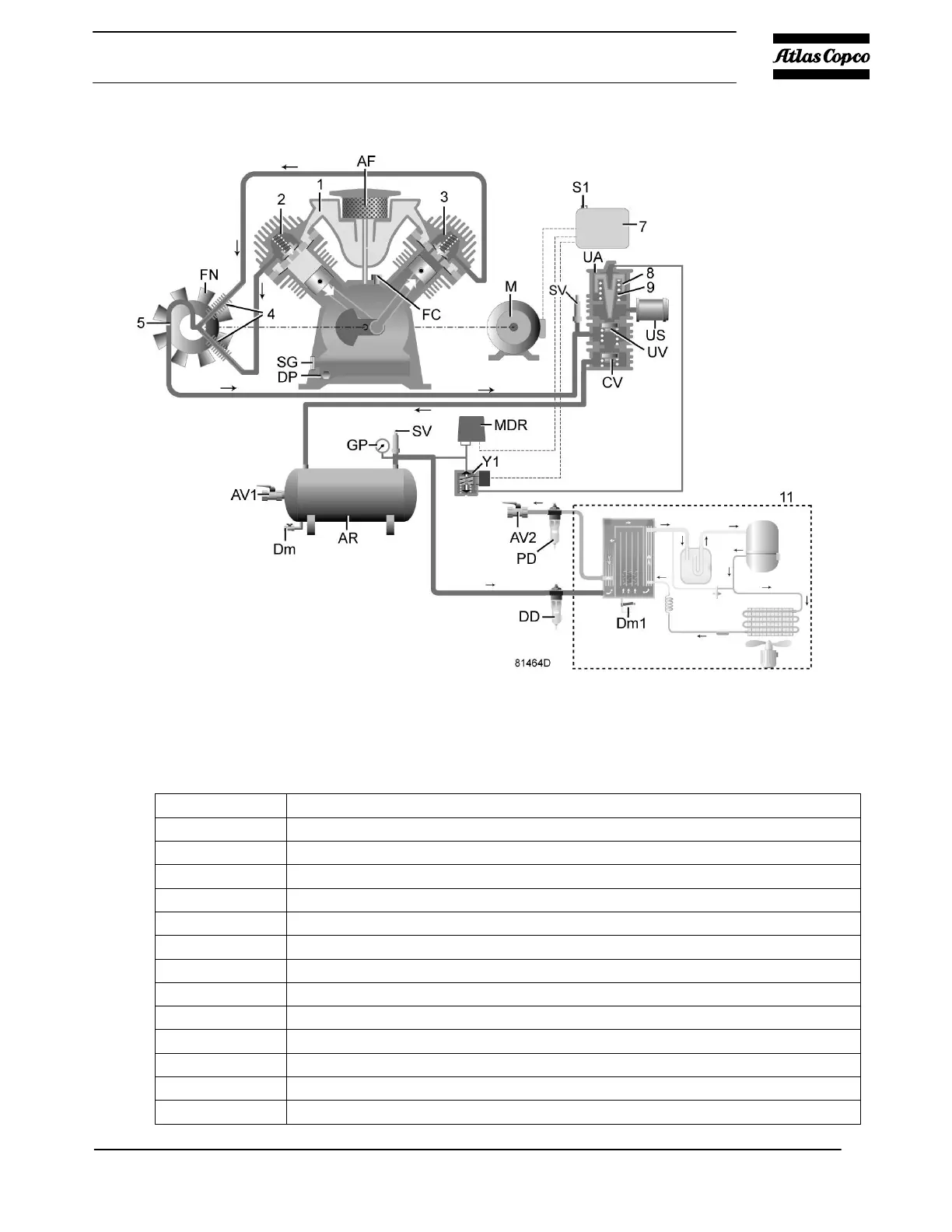

Air flow and regulating system, Full- Feature
References on flow diagrams
Reference
Description
AF Air filter
AR Air receiver
AV Air outlet valve
AV1/AV2 Air outlet valves
CV Check valve
Dm Condensate drain valve
FC Oil filler cap
FN Fan
Gp Air pressure gauge
M Motor
MDR Air pressure switch
PD Pulsation damper
S1 On/off switch
