Industrial Air Division

212920 5997 03

10 Dimension drawings

[1] Air inlet

[2] For floor mounting

[3] Cooling air inlet

[4] Net mass

[5] Compressed air outlet G 1/2

[6] Manual condensate drain

[7] Electric cable entry Pg 16

[8] Electric cable entry Pg 21 (on rear side)

[9] Cooling air outlet

[10] Air receiver must not be bolted on the floor without rubber pads

[11] Shown LE7/8 with 250 l EURO receiver and silencing hood

[12] Female air outlet G 1/2

[13] Compressor cooling air and air inlet

[14] Hole 15 x 24 (4 x), can be used for fixing without rubber pads

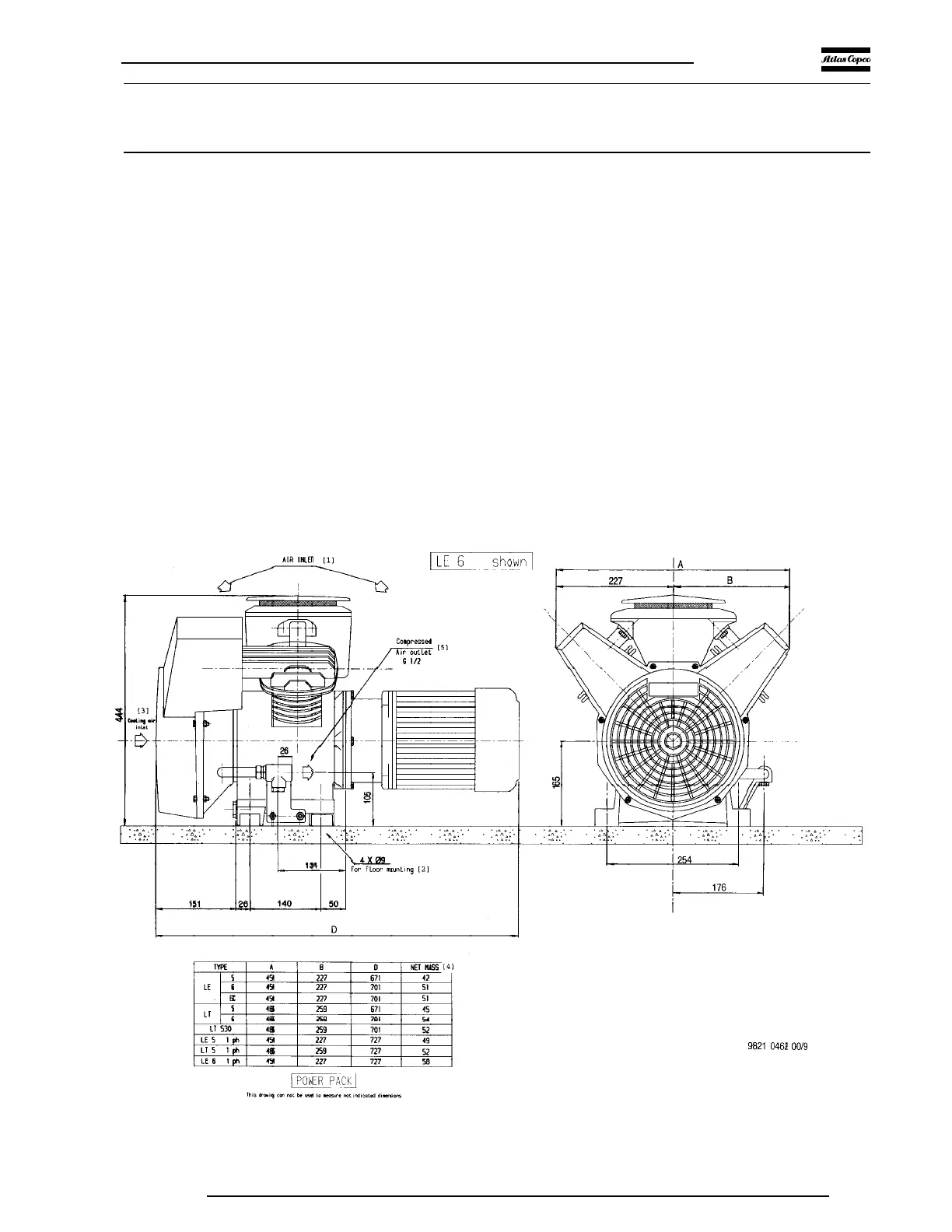

Fig. 14. LE5, -6, -6C/LT5, -6, -530 Power Pack

Figs. 14 up to 21. Dimension drawings
