Atlas Copco LE9N

Industrial Air Division
192920 5997 03
F1/3. Fuses
F21. Overload relay
K1. Line contactor
K2. Delta contactor
K3. Star contactor
M1. Compressor motor
PSR19. Air pressure switch
P1. Hourmeter
S1. Selector switch: 1/2 AUTO - O - AUTO
TSHH11. Temperature switch (not provided)
T1. Transformer
1X1/2. Terminal strips
1X3. Plug
Y1. Solenoid valve

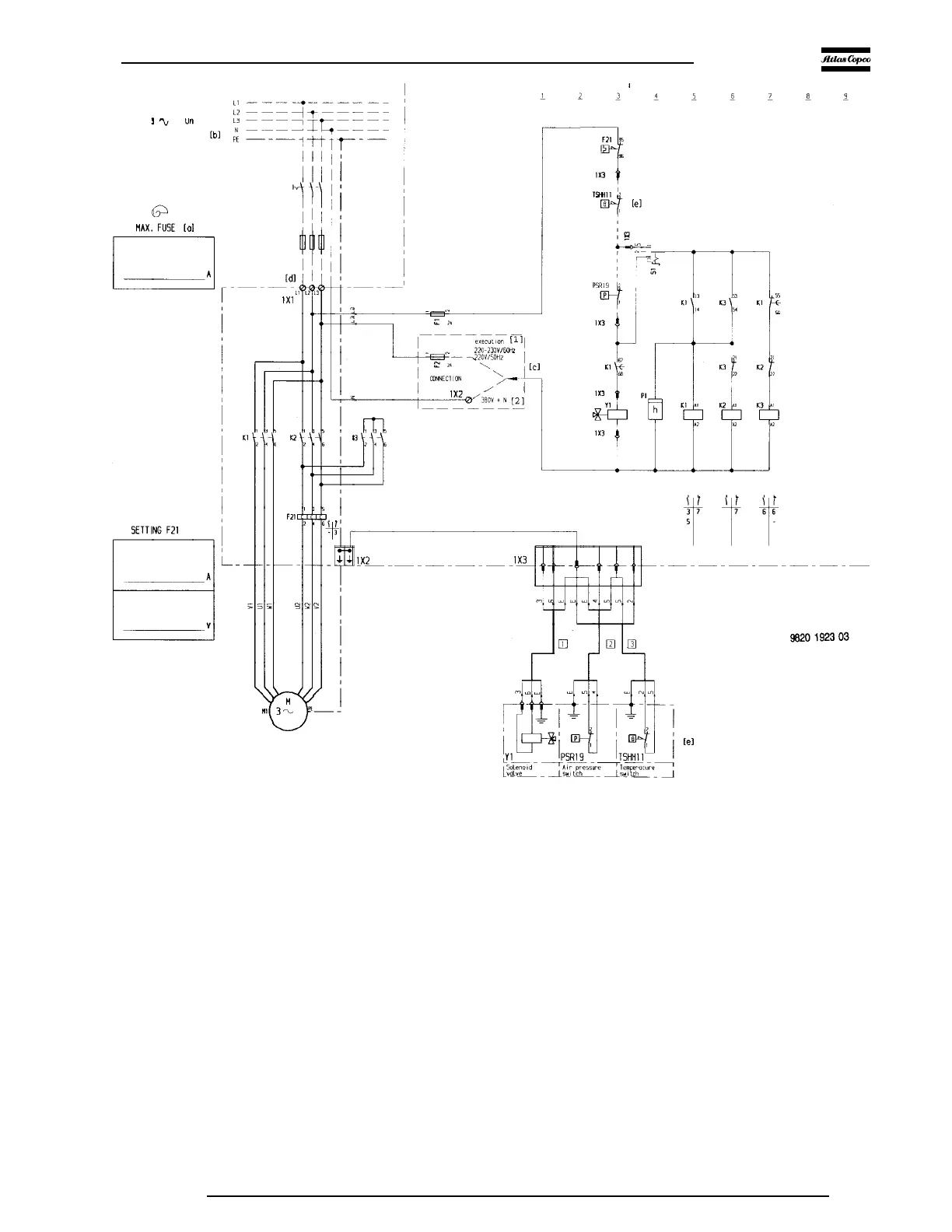

Figs. 12 and 13. Electrical diagrams of LE/LT7 up to -12 and LEN
Fig. 12. Electrical diagram of LE/LT7 up to -12 and LEN without transformer
