Atlas Copco LT20/30 User Manual

Instruction book
1
6
SG
DP
FC
CV
RV
Gp
SV
Dm
Dm
COMPRESSED AIR
M
D0338_1
5
11
9
12
13
UV
UA
3
4
3
4
FN
AF
PD
PD
AV1
AV2
14
(1)
(1) Compressed air

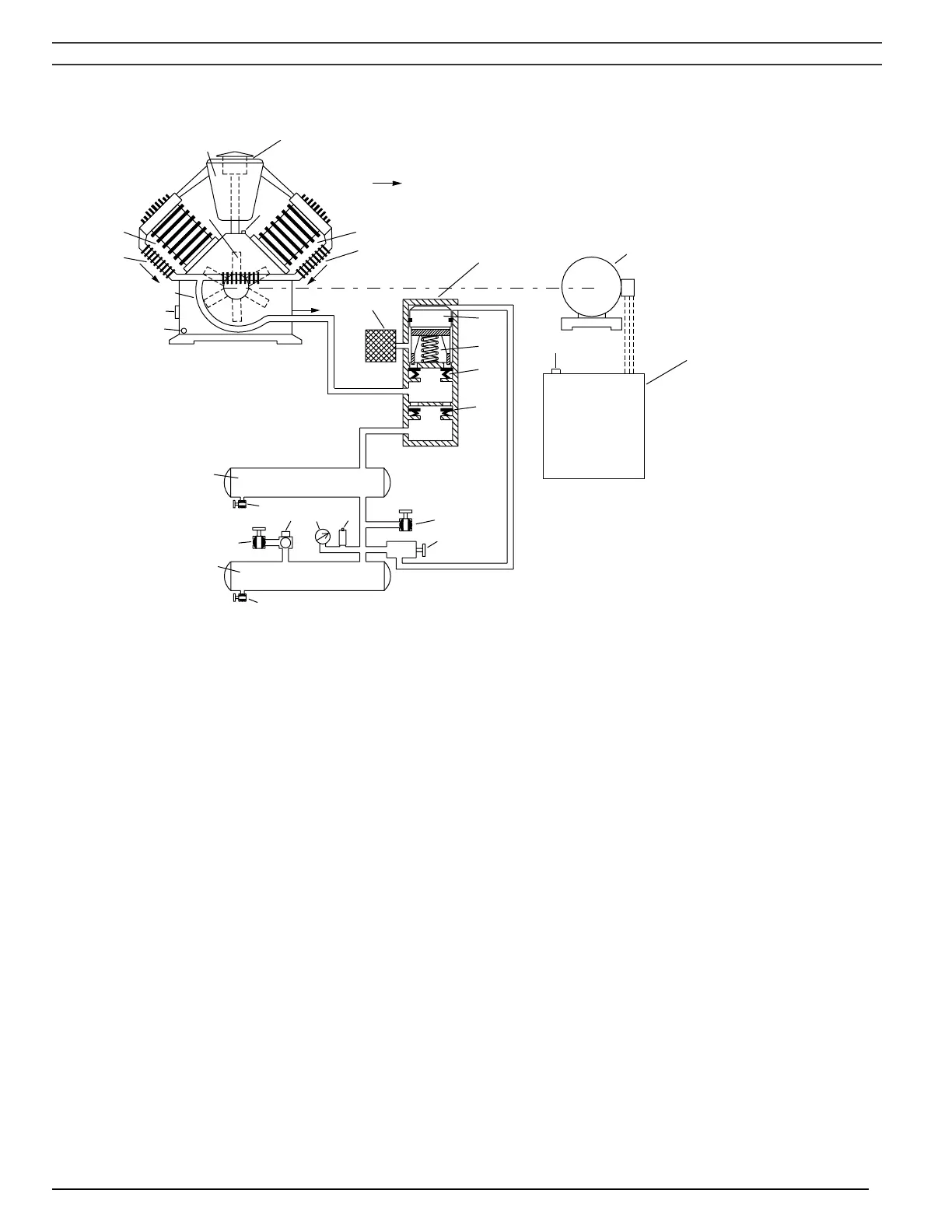

Fig. 1.12 Air flow of LE Trolley and regulating system of LE/LF/LT Trolley
AF Air filter
AR Air receiver
AV Air outlet valve
AV1/2 Air outlet valves
CV Check valve
Dm Condensate drain valve
DP Oil drain plug
FC Oil filler cap
FN Fan
Gp Air pressure gauge
M Motor
MDR Air pressure switch
PD Pulsation damper
RV Pilot valve
SG Oil level sight-glass
SV Safety valve
UA Unloader
UV Unloading valve
Y1 Loading solenoid valve
1 Air inlet silencer
2 Pressure release valve
3 Cylinder
4 Cooler
5 On/off switch
6 Cooling pipe
7 LP cylinder
8 HP cylinder
9 Blow-off silencer
10 Intercooler
11 Electric cabinet
12 Plunger
13 Spring
14 Pressure regulator
Figs. 1.10 up to 1.12 Air flow and regulating systems
2920 1585 00 - 11 -
