2.5 Pictographs
1 Temperature
2 Pressure
3 On
4 Off
5 Warning: voltage
6 Switch off voltage and depressurize before
maintenance or repair
7 Read Instruction book before starting
8 Consult Instruction book for correct direction
of rotation
9 Do not adjust switch if it is depressurized

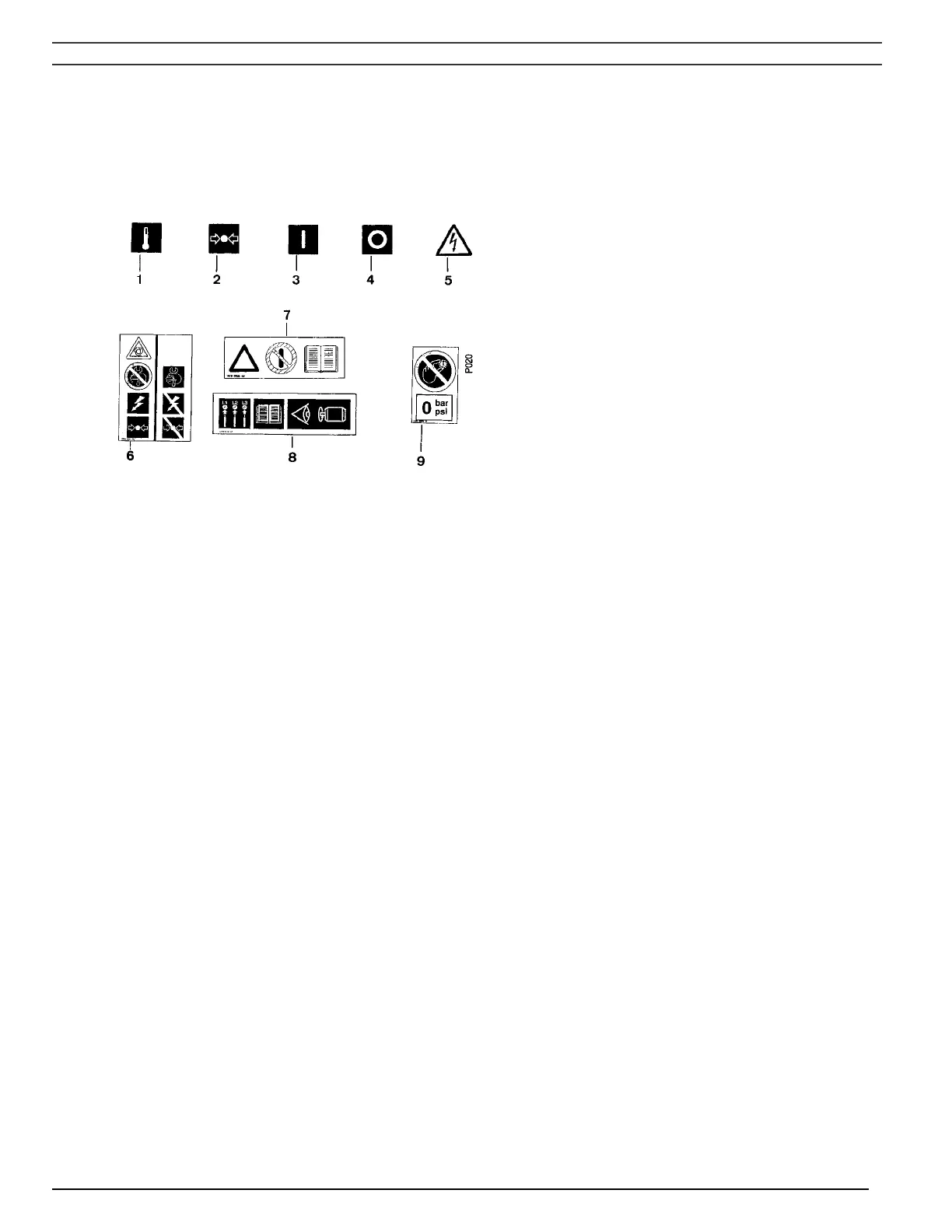

Fig. 2.32 Pictographs (typical examples)
