Atlas Copco LT20/30

Instruction book
(
1
)
(3)
(14)
(5)
(4)
9821 0468 00/8
55755D
15
20
15-30
20-30
See page 35 for the text on this figure

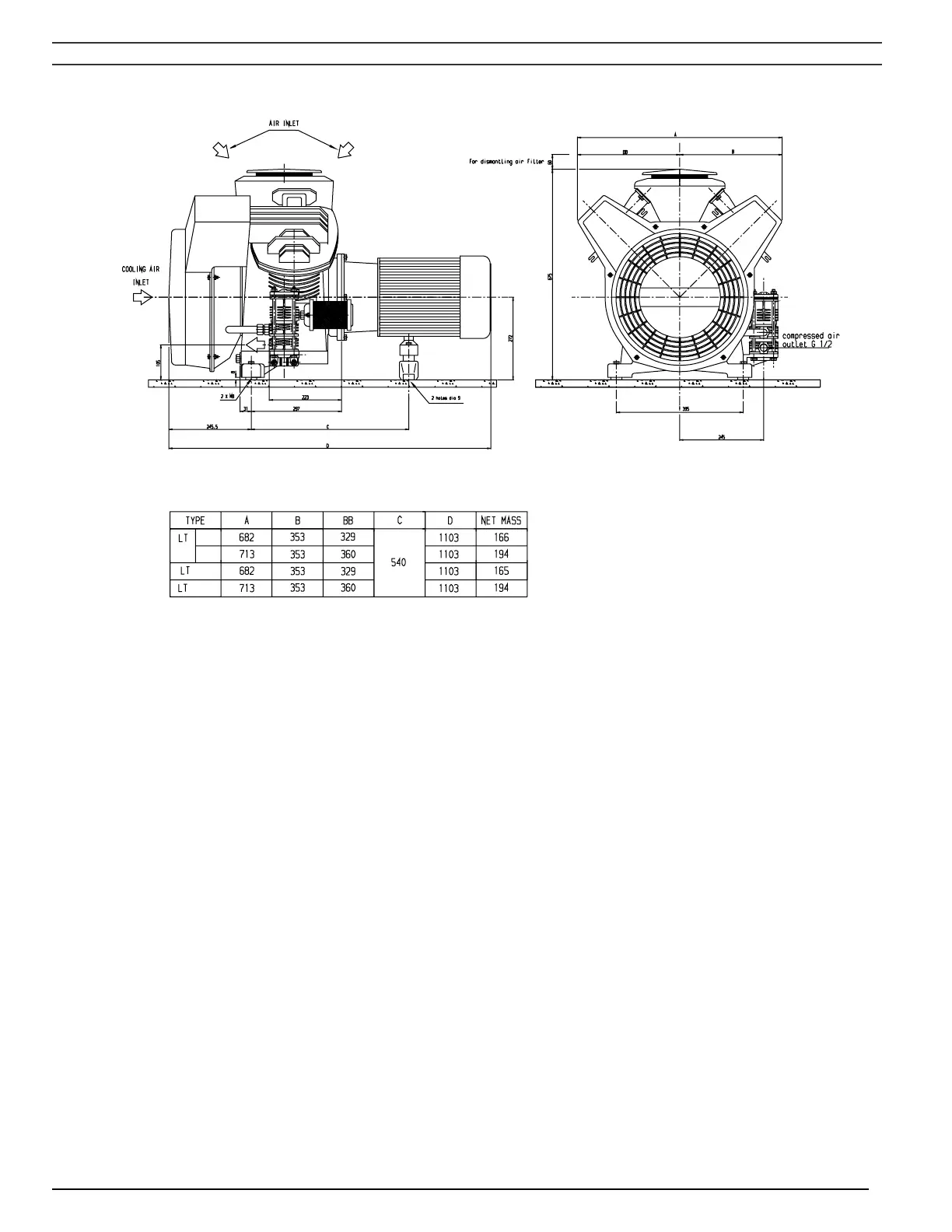

Fig. 2.4 Dimension drawing, LT15, -20 and LT15-30, LT20-30 Power Pack
2920 1585 00 - 18 -
