Instruction book
2.2 Installation proposals
9820 2332 03
52790D
9820 2332 00
52791D

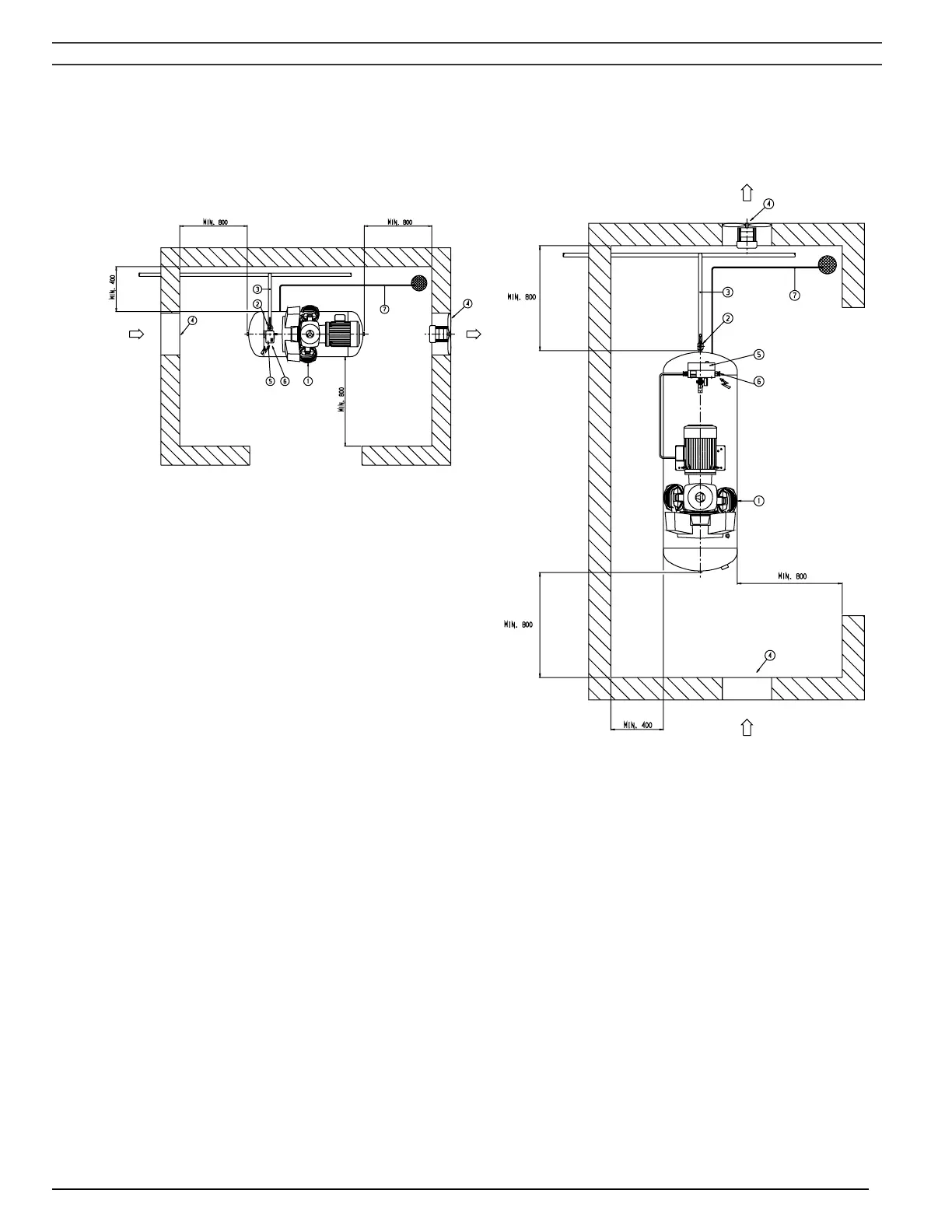

Fig. 2.21 Installation proposal for Tank-mounted unit
(120 l receiver)
Fig. 2.22 Installation proposal for Tank-mounted unit
(250/475 l receiver)
2920 1585 00
- 36 -
35
37
Table of Contents
Table of Contents
3
Leading Particulars
5
General Description
5
Compressor Variants
8
Air Flow
9
LE/LF2 up to -5, LE7 and LE10 50 Hz (Fig. 1.10)
9
LE10 60 Hz, LE15, -20, LF7, -10 and LT (Fig. 1.11)
9
Regulating System
12
LE/LF/LT2 up to -7 with DOL Starter (Fig. 1.10)
12
LE/LT5 up to -20, LF5 up to -10, each with Y/D Starter (Fig. 1.11)
12
LE/LF/LT Trolley (Fig. 1.12)
13
Installation and Handling
15
Dimension Drawings
15
Installation Proposals
36
Le/Lf/Lt
38
LE/LF/LT Trolley
39
Electrical Connections
39
Settings of Overload Relay - Fuses - Cable Size
43
Settings of Overload Relay - Fuses of Compressors with DOL Starter
43
Settings of Overload Relay - Fuses of Compressors with Y-D Starter
44
Cable Size
45
Pictographs
46
Operating Instructions
47
Initial Start-Up
47
Starting
47
Stopping
48
Taking out of Operation at End of Compressor Service Life
49
Maintenance
50
Petrol Engine Maintenance
50
Preventive Maintenance Schedule of the Compressor 1)
50
Lubrication of LE/LT Compressors
51
Service Kits
51
Servicing and Adjustment Procedures
53
Unloader or Check Valve
53
Valves
53
Replacement of Valve Discs (Figs. 5.1 and 5.2)
55
Air Filter
56
Adjustment of MDR4S Pressure Switch (Figs. 5.4 up to 5.6)
57
Adjustment of MDR3 Pressure Switch (Figs. 5.7 and 5.8)
59
Adjustment of Pilot Valve on Trolley (Fig. 5.9)
60
Safety Valve (SV-Figs. 1.4, 1.6 and 1.8) 1)
61
Testing on LE/LF/LT
61
Testing on LE/LF/LT Trolley
61
Relief Valve (8-Fig. 1.1) on LF7, -10, LE10 up to -20 and LT
61
Problem Solving
62
Principal Data
64
Reference Conditions
64
Limitations
64
Compressor Data for LE 10 Bar
64
50 Hz
64
60 Hz
65
Compressor Data for LF 10 Bar
66
50 Hz
66
Compressor Data for LT 15 Bar
67
50 Hz
67
60 Hz
67
Compressor Data for LT 20 Bar
68
50 Hz
68
Compressor Data for LT 30 Bar
69
50 Hz
69
Conversion List of si Units into Us/British Units
70
PED (Pressure Equipment Directive)
70
Components Subject to 97/23/EC Pressure Equipment Directive
70
Overall Rating
70
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Atlas Copco LT20 and is the answer not in the manual?
Ask a question
Atlas Copco LT20 Specifications
General
Brand
Atlas Copco
Model
LT20
Category
Air Compressor
Language
English
Related product manuals
Atlas Copco LT2
74 pages
Atlas Copco LT22
48 pages
Atlas Copco LT20/30
74 pages
Atlas Copco LT75
48 pages
Atlas Copco LT40
48 pages
Atlas Copco LT55
48 pages
Atlas Copco LT15
74 pages
Atlas Copco LT10
74 pages
Atlas Copco LT 2
80 pages
Atlas Copco LT730
28 pages
Atlas Copco LT150
48 pages
Atlas Copco LT15/30
74 pages
