Atlas Copco LUM21 HR User Manual

LUM21 HR Safety Information
© Atlas Copco Industrial Technique AB - 9836 1172 05
9
The RE-Controller alerts the operator when it de-
tects:
• Missed fasteners
• Premature tool shut-off
• Stripped threads
• Cross-threading
• Rehits
• Drop in air supply

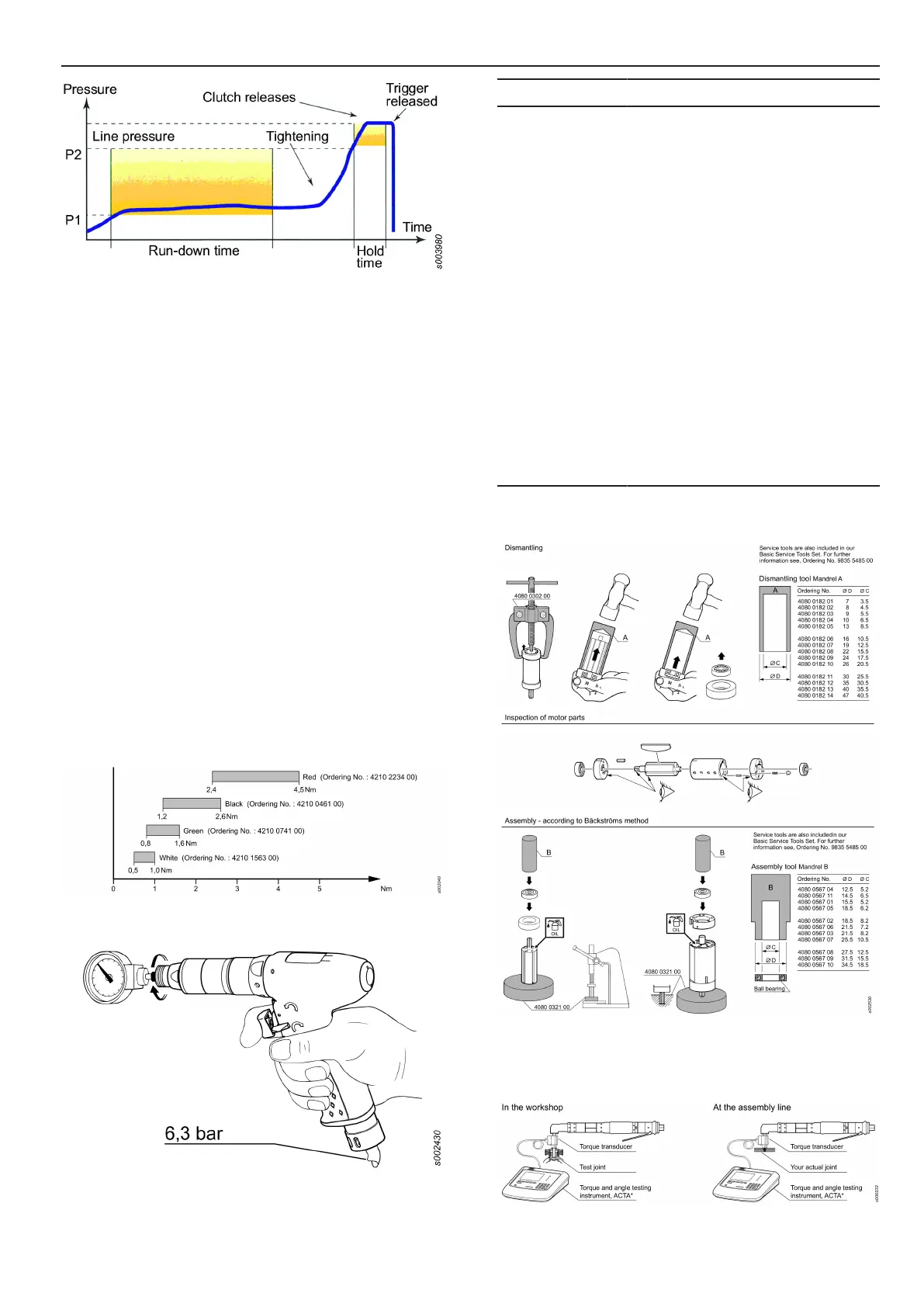

The air pressure inside the tool is measured
through a small hose (see Optional accessories -
RE-Signal kit) and converted into a digital signal.
This signal is processed in the RE-Controller. The
RE-Controller gives instant visual and audio feed-
back to the operator on whether the tightening was
OK or not OK.
For further information, please see leaflet 9833
1358 01.
Torque range of the clutch spring
Free speed / Air consumption
Model r / min l / s
LUM 21 HR05/-
U
450 7.5
LUM 21 HR08/-
U
750 7.5
LUM 21 HR12/-
U
1120 7.5
LUM 21 HR15/-
U
1490 7.5
LUM 21 HR23/-
U
1490 7.5
LUM 21 HR36-
U
2130 7.5
LUM 21 HR08 -
U -RE
750 7.5
LUM 21 HR15 -
U -RE
1490 7.5
Instructions for vane motor
Testing of tightening torque
Torque and angle testing instrument
