Repair Instructions No.166.11/95
PHE 16 RL-N / PHE 20 N

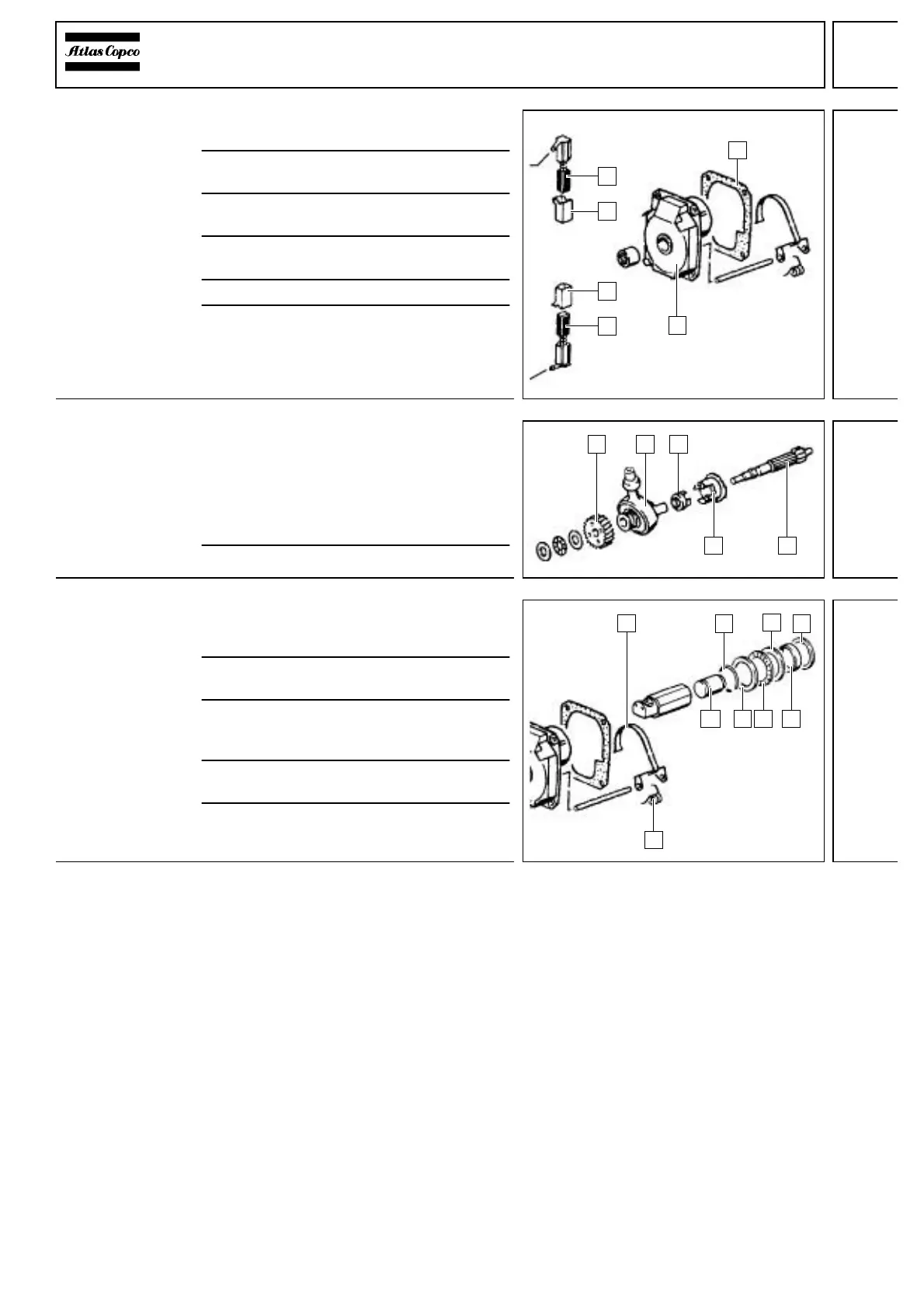

Mounting the
bearing end plate
1
Mount the brush holder insulations (2) and
the carbon brushes (1).
2 Put together the two housing shells and
fasten them with screws.
3 Insert the machine into an assembly
support.
4 Fit the bearing end plate (4) to the motor
housing.
5 Fit a new gasket (3).
6 Insert the percussion body cylinder such
that the dented side faces up.
Assembling the
wobble gear
drive
1 Fit the coupling sleeve (5) to the reduction
gear shaft (4).
☞
Press on the reduction gear wheel (1)
with the smooth side facing the
wobble gear drive (2). The end play
must be 0.05 + 0.03 mm.
2 Mount the complete reduction gear.
Mounting the
pillow block
1 Mount the spring disc (2), the bearing
washers (3), the axial needle bearing (6),
the spacer (5), and the disc (4).
2 Insert the percussion body (7) into the
cylinder.
3 Hang up the spring (8) as shown in
illustration and insert it into the drill spindle
reception with aid of a screwdriver.
4 Hold the pillow block (1) back with a
screwdriver and fit the drill spindle.
5 The reduction gear wheel must grasp the
groove in the drill spindle.
2
3
4
1
1
2
2
3
1 2
5 4
3
6
8
1
2
57
3
3
4
4
