Repair Instruction No. 169.2/94
PHE 24/26/30-Range

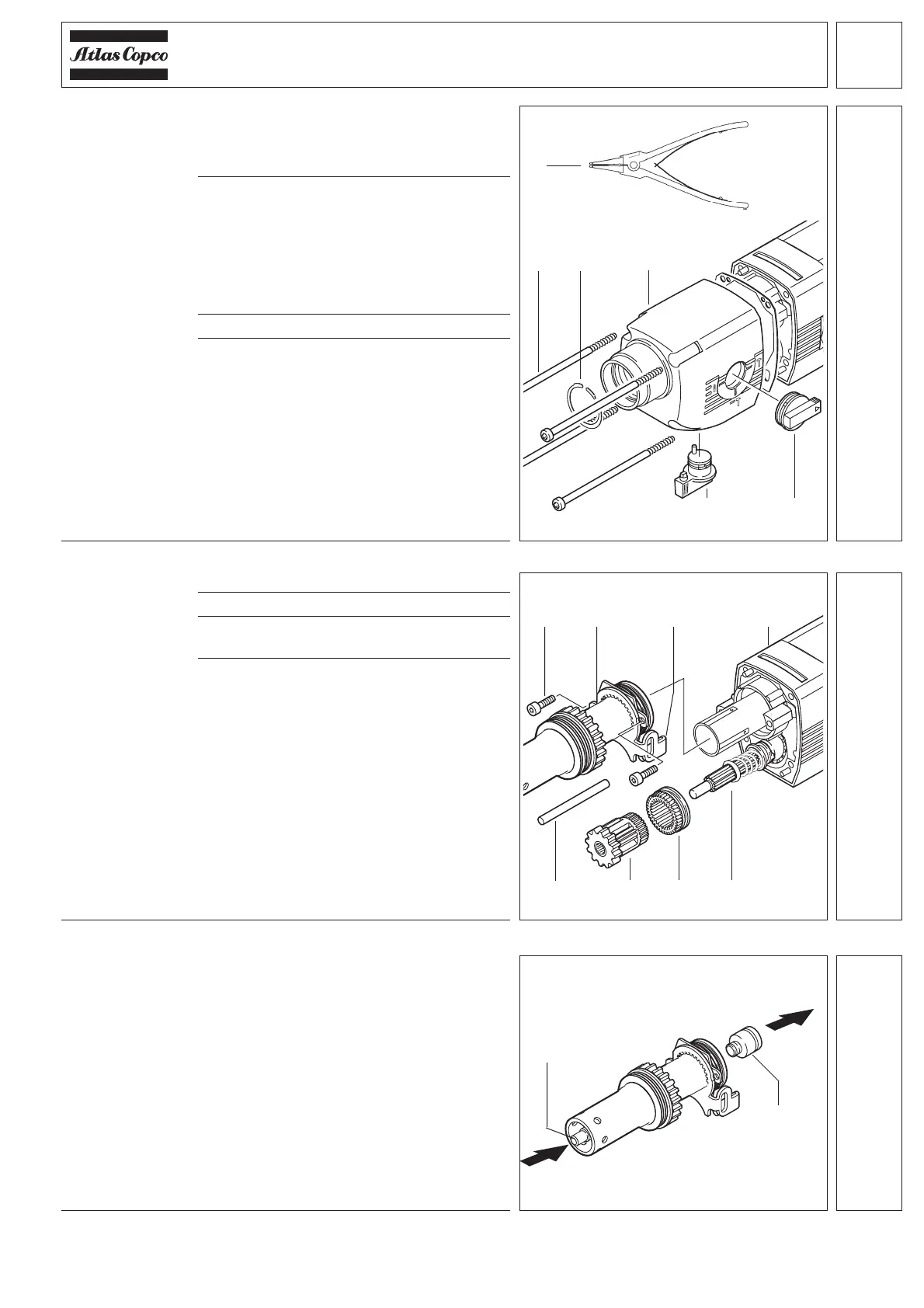

1 Removing the gear lever (6):
Switch gear lever to „0“ and break it off
with aid of pliers (the lever is being
destroyed).
2 Only applicable for PHE 30 RX 2:
Remove the hammer switch (5) with aid
of pliers (the switch is being destroyed).
F
In case of stiffness fix the switch in a
vice and bread it off by moving the
machine to and fro. Remove any broken
parts from the machine!
3 Remove the four housing screws (2).
4 To remove the locking ring (3) (only
applicable for FIXTEC-machines): open
the locking ring on the spindle with aid of
special pliers (1) (4931 5990 57) and
remove it together with the gear housing
(4).
Removing the
gear housing
2
2
4
3
1
65
1 Remove the two screws (1).
2 Remove the straight pin (5).
3 Remove the planetary gear (6) and the
ring gear (7).
4 Remove the complete spindle sleeve (2)
from the cylinder.
Removing the
spindle
1 Place the spindle vertically and briefly hit
the plunger (1) with a mandril - the
striker (2) comes free.
Removing the
striker
2
1
4
3
1
23 4
5 6 7 8
Illustration shows 2-gear machine
