Atlas Copco PHE 3X User Manual

Repair Instruction No. 175.8/95
PHE 3, PHE 3X
PAGE
2
3
2
1
6245 789
2

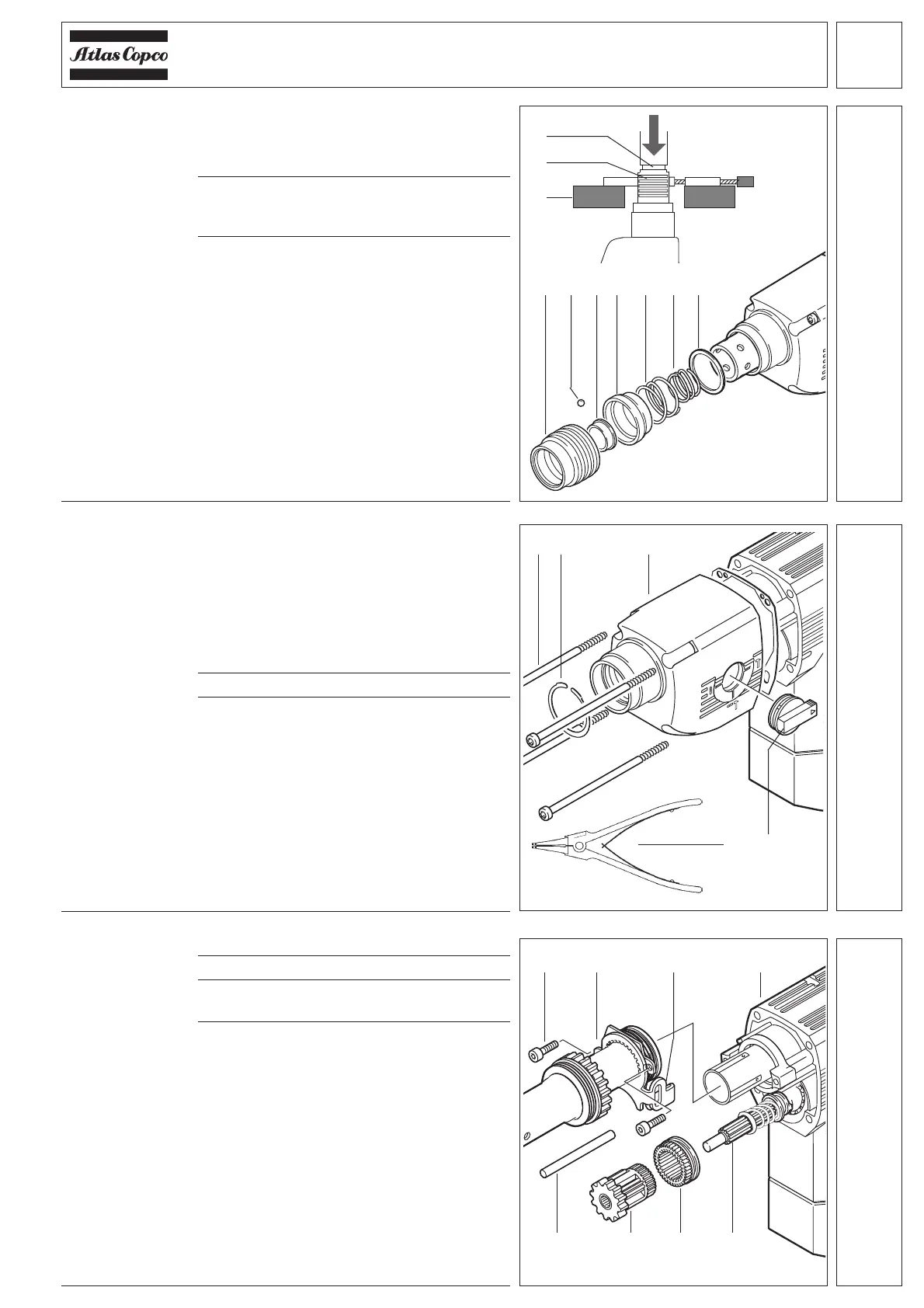

1 Removing the switch lever (4):
Switch the lever to „0“ and break it off
with aid of pliers (the lever is being
destroyed).
F
Should this not be possible fix the
switch in a vice and break it off by
moving the machine to and fro. Remove
any broken parts from the machine!
2 Remove the four housing screws (1).
3 To remove the locking ring (2) (only
applicable for PHE 3 X): open the locking
ring on the spindle with aid of special
pliers (5) (4931 5990 57) and remove it
together with the gear housing (3).
1 Remove the two screws (1).
2 Remove the straight pin (5).
3 Remove the planetary gear (6) and the
ring gear (7).
4 Remove the complete spindle sleeve (2)
from the cylinder.
4
1 2 4
5
6 7 8
3
Dismantling the
FIXTEC-
Reception
(only applicable
for PHE 3 X)
Removing the
gear housing
Removing the
spindle
1 Removing the locking sleeve (2):
Fix the locking sleeve in a pulling off
device (3) and press it out (by using a
suitable sleeve (1)).
2 To remove the balls (4) (6 pieces):
depress the seal ring (6) and remove the
balls with aid of a magnet.
3 Remove the remaining parts:
- seal ring (6)
- outer spring (7)
- ejector ring (5)
- inner spring (8)
- washer (9)
1 2 3
4
5
3
