Atlas Copco Power Focus 3000 Original Product Instructions

Power Focus 3000 Safety Information
© Atlas Copco Industrial Technique AB - 9836 2156 01
9
Line voltage
90-120 VAC
180-240 VAC
Frequency
50-60 Hz
Ambient temperature
40°C (104°F)
Normal environmental conditions
This standard applies to equipment designed to be
safe at least under the following conditions:
• Indoor use
• Altitude up to 2 000 m
• Maximum relative humidity 80% for tempera-
tures up to 31°C decreasing linearly to 50% rel-
ative humidity at 40°C;
• Transient over voltages typically present on the
MAINS supply
NOTE! The normal level of transient over
voltages is impulse withstand (over voltage)
category II of IEC 60364-4-443
• Applicable RATED POLLUTION degree (pol-
lution degree 2)
Power consumption
Power consumption depends on the speed and
torque of the tool. High speed and torque give the
highest power.
Tool Standby [W]
Free running
[W]
S4/S7 and
ST3-6 and SL-
Tools
20 150
S9 and ST8-10 20 200
Mains fuse
Recommended mains fuses (power outlet):
Tool
Mains Voltage
[V]
Fuse [A]
S4/S7 and
ST3-6 and SL-
Tools
110 15
230 10
S9 and ST8-10 110 20
230 16
If you are running Power Focus as standalone units
and trigger the tools manually (random) it is nor-
mally possible to connect up to three Power Focus
to one power drop. If you are synchronising the
spindles you will need one drop for each Power
Focus controller.
Wiring
All connections are located on the rear of the unit.
If it is necessary to change the plug on the mains
cable, use the following wiring guide:
Color Input
Brown or black Live
Blue Neutral
Green and yellow Protective ground
Warning! The power cable is the main disconnect-
ing device. If you open a Power Focus unit first
pull out the power cable to make sure that the unit
is free from electric power.
Warning! Do not use galvanically insulated line
voltage since it disrupts the function of the Ground
Fault Interrupter (GFI). The test button for the GFI
activates the GFI even if the Power Focus is sup-
plied with power from an isolated transformer.
Service instructions
Product data

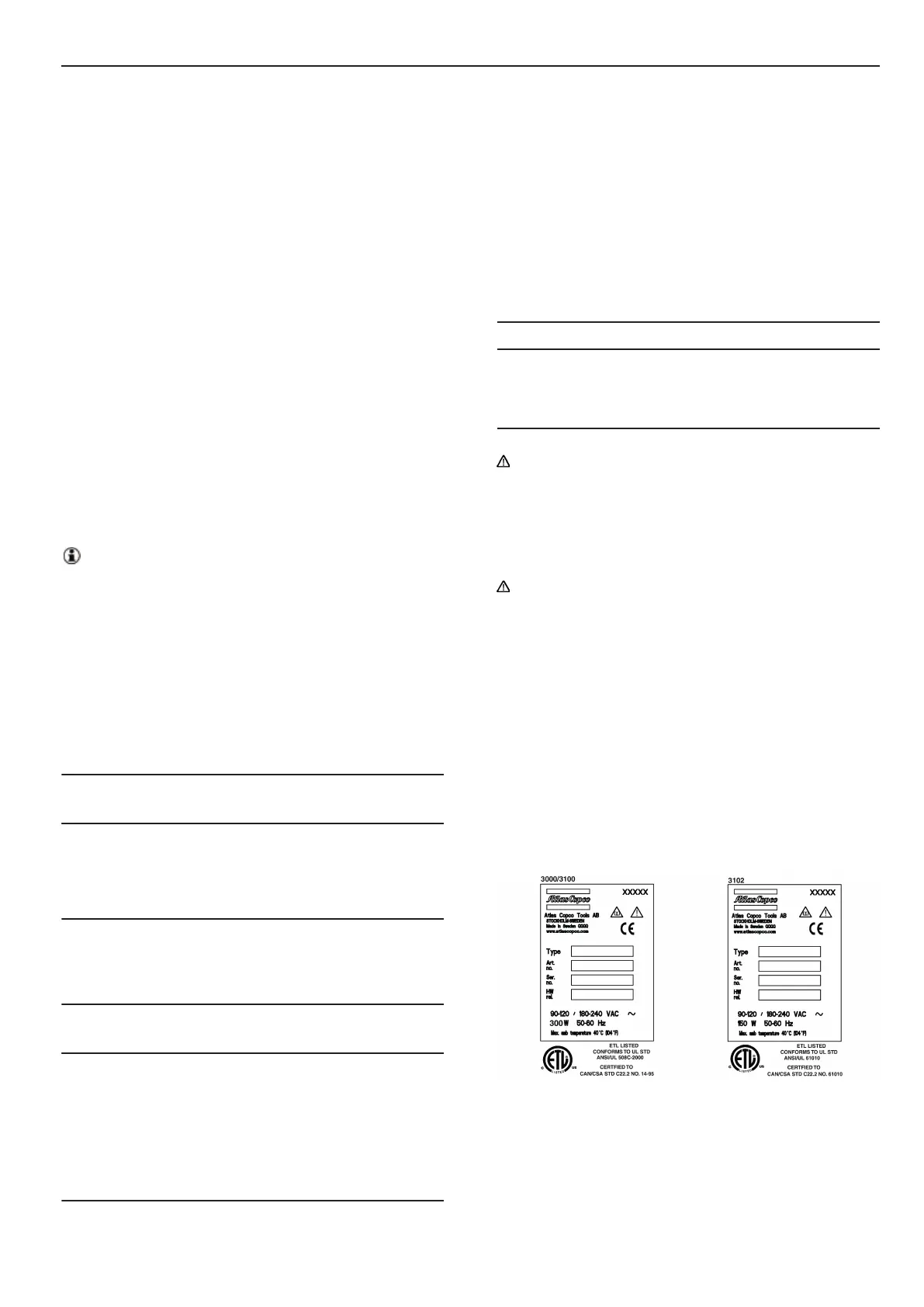

Product label
