18 2954 2100 01
QAS 14 - 20 Pd

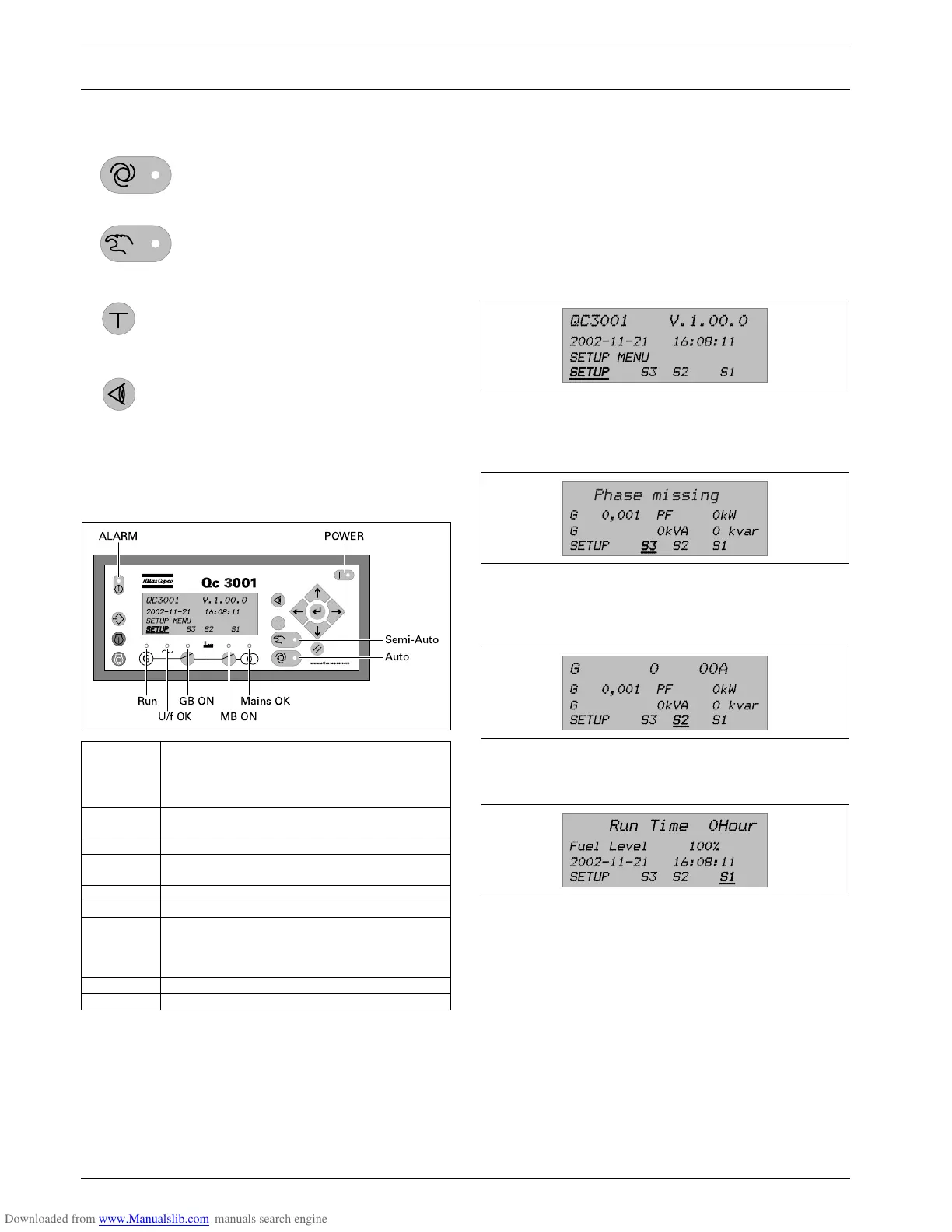

2.6.4 LED functions
9 LEDs are used on the display unit. The colour is green or red or
a combination in different situations.
2.6.5 Qc3001™ Menu Overview
Main View
The display has 4 different lines. The information on these lines can
change, depending on which view is used. There are 4 different
main views possible: SETUP / S3 / S2 / S1.
Setup view
The SETUP view shows the module name, the software version,
the date and the time.
S3 view
The S3 view shows operational status and selectable
measurements.
S2 view
The S2 view shows some selectable measurements.
S1 view
In the S1 view the user can scroll up and down to 15 configurable
screens showing different selectable measurements.
The configuration of the 15 different screens is done through the
Qc3001™
Utility Software. It is not possible to configure the
windows through the display. The screen shown when leaving “S1”
will be the screen shown when returning to “S1”.
AUTO: Allows the user to set the generator in AUTO
mode.
SEMI-AUTO: Allows the user to set the generator in
SEMI-AUTO mode.
TEST: Allows the user to set the generator in TEST
mode. To enter the TEST mode, a password needs to
be entered.
VIEW LOG: shows the latest event. The user can
scroll through the event & historical alarm list with
the scroll buttons. (Up to 150 events & historical
alarms can be listed).
Alarm:
Red LED flashing indicates that unacknowledged alarms
are present.
Red LED fixed indicates that ALL alarms are acknowl-
edged.
Power:
Green LED indicates that the voltage supply is switched
on.
Run: Green LED indicates that the generator is running.
U/f OK:
Green LED indicates that voltage/frequency is present and
OK.
(GB) ON: Green LED indicates that the generator breaker is closed.
(MB) ON: Green LED indicates that the mains breaker is closed.
Mains OK:
LED is green if the Mains is present and OK.
LED is red at a mains failure.
LED is flashing green when the mains return during the
“MAINS Ok” delay time.
Auto: Green LED indicates that AUTO mode is selected.
Semi-Auto: Green LED indicates that SEMI-AUTO mode is selected.
