Atlas Copco QAS 80 - 100 Pd - Qc1001 TM Shutdowns; Shutdown Display and Icons

14 2954 2380 00
QAS 80 - 100 Pd

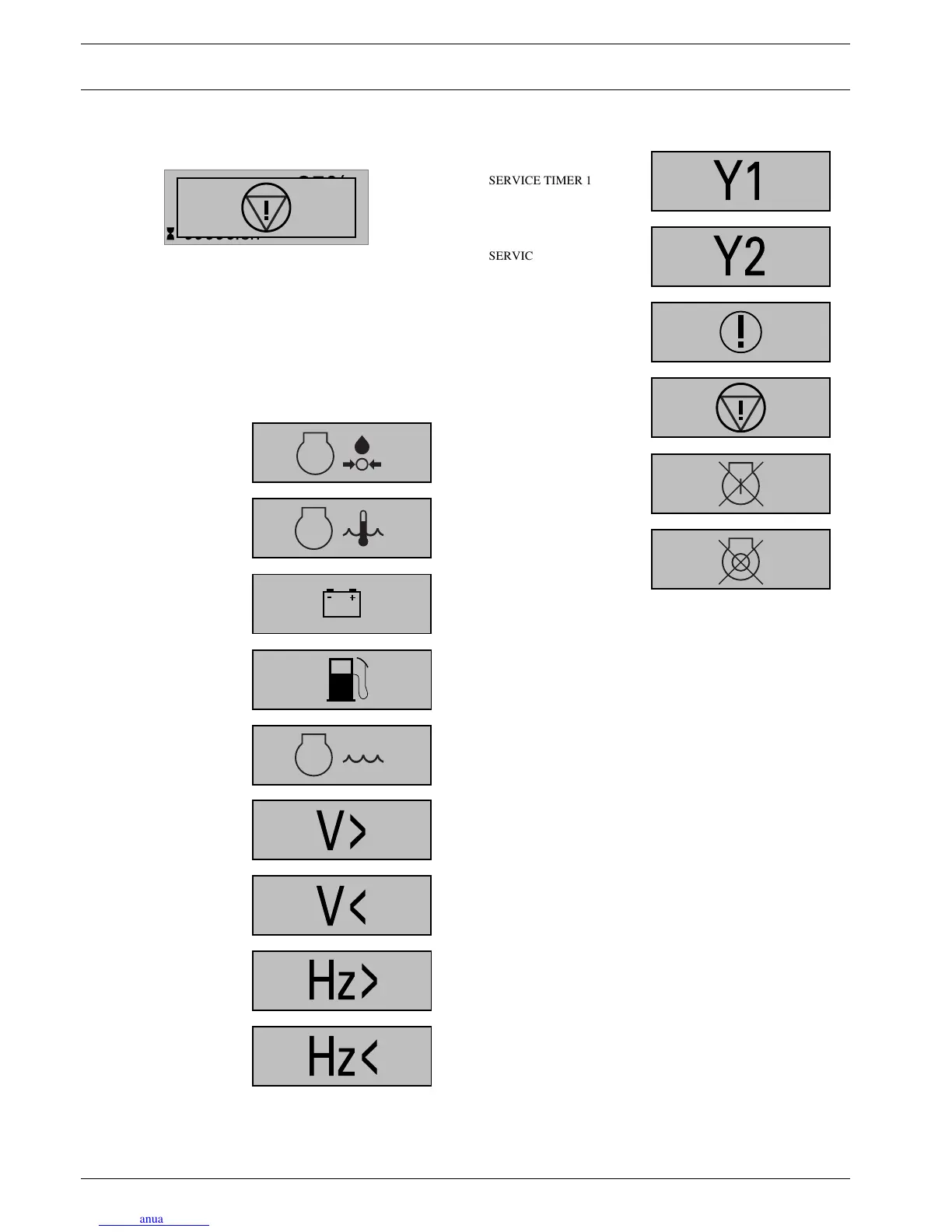

Shutdown Display (pop-up window)
In case a Shutdown occurs, a pop-up window will automatically be
entered, no matter which view is active.
This pop-up window will stay present until the unit is put in OFF.
The shutdown icon will be shown (together with a flashing alarm
LED at the fascia), which is centered at the display.
List of possible shutdowns:
LOW OIL PRESSURE
HIGH COOLANT
TEMPERATURE
CHARGING
ALTERNATOR
LOW FUEL LEVEL
LOW COOLANT
LEVEL
GENERATOR
OVERVOLTAGE
GENERATOR
UNDERVOLTAGE
GENERATOR
OVERFREQUENCY
GENERATOR
UNDERFREQUENCY
85%
00000.8h
V >
V <
Hz >
Hz <
SERVICE TIMER 1
SERVICE TIMER 2
ALARM
EMERGENCY STOP
START FAILURE
STOP FAILURE
;
;
