2. Leading particulars
2.1 General description
The QAS 80 Pd and QAS 100 Pd are AC generators, built for
continuous running at sites where no electricity is available or as
stand-by in cases of interruption of the mains.
The generator operates at 50/60 Hz, 230/240 V in line-to-neutral mode
and 400/480 V in line-to-line mode.
The QAS 80 Pd and QAS 100 Pd generators are driven by a water-
cooled diesel engine, manufactured by PERKINS.

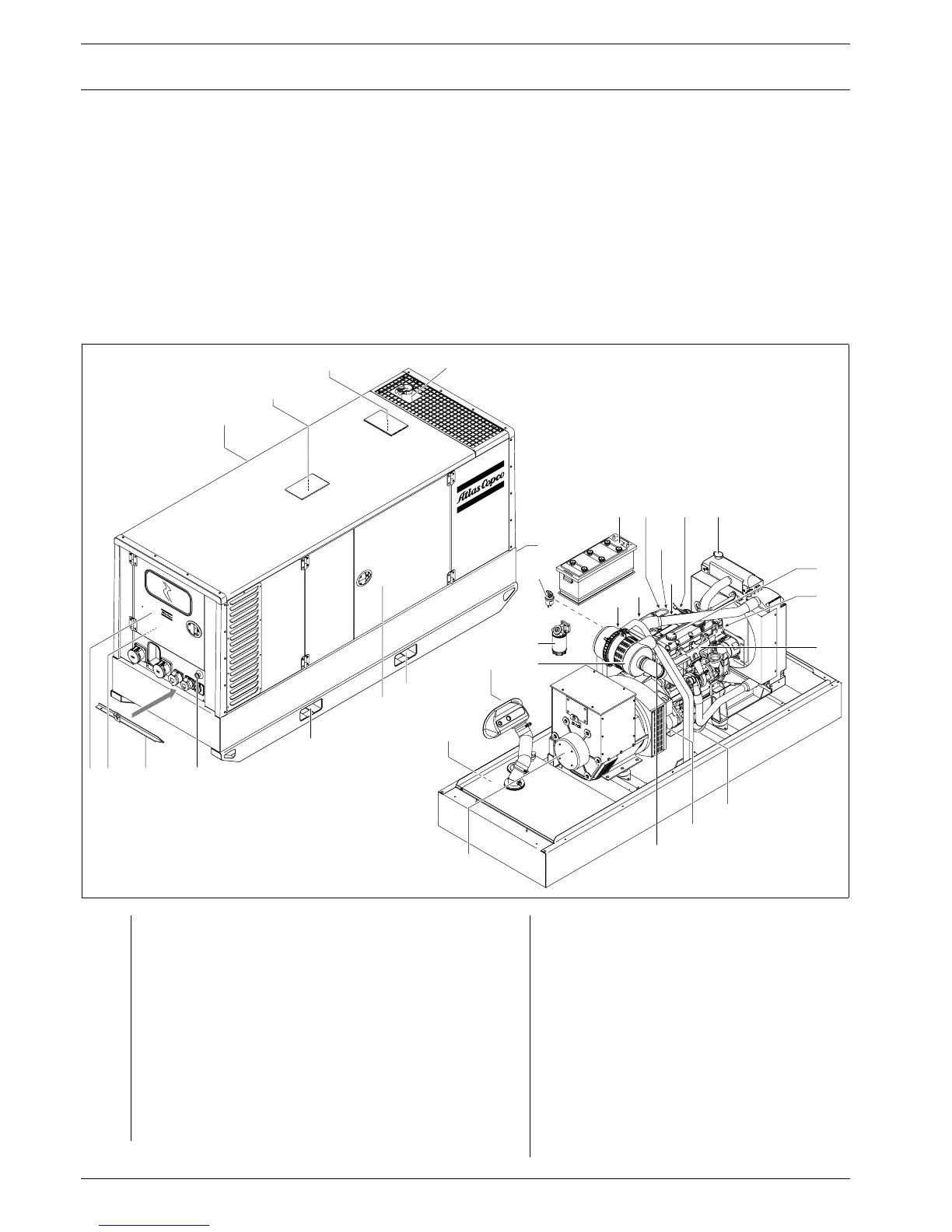

An overview of the main parts is given in the diagram below.
FCW 3
1
2
4
6
ESB85
2
7
7
C
VI
DFO
FCW
E
F
FCO
FCF AF
FPF
A
DPF
DH
FF
OLD
BS
OF
DFW
SOFG
1 Acces to lifting eye
2 Side doors
3 Engine exhaust
4 Data Plate
5 Door, access to control and indicator panel
6 Output terminal board
7 Hole for forklift
8 Earthing rod (Not available in combination with an IT-relay)
AAlternator
AF Air filter
BS Battery switch
C Coupling
DFO Drain flexible engine oil
DFW Drain flexible coolant
DH Drain and access hole (in the frame)
DPF Drain plug fuel
E Engine
ESB Emergency stop button
FFan
FCF Filler cap fuel
FCO Filler cap engine oil
FCW Filler cap coolant
FF Fuel filter
FPF Fuel pre-filter
G1 Battery
OF Oil filter
OLD Engine oil level dipstick
SOF Side oilfiller
VI Vacuum indicator
