4.2.4 Setting the Qc1011™

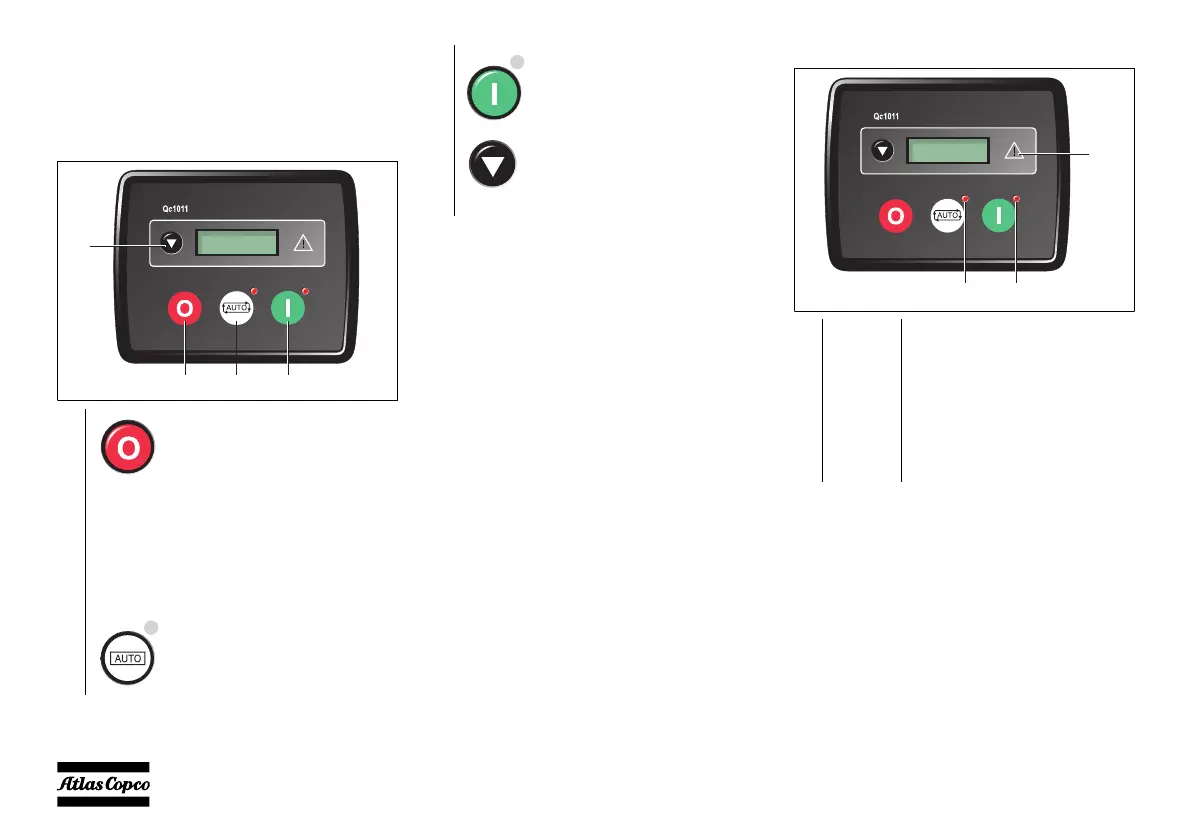

4.2.4.1 Push button and LED functions
Following push buttons are used on the
Qc1011™:
Following LEDs are used on the Qc1011™:
1
STOP: Is used to activate Stop/
Reset/Manual mode.
When pressing the STOP button,
the generator will unload, the fuel
supply de-energises and the engine
shuts down.
Pressing the STOP button will also
clear any alarm conditions for
which the triggering criteria have
been removed.
2
AUTO: Is used to activate Auto
mode. This mode allows the
module to control the function of
the generator automatically.
123
4
3
START: Is used to crank the
angine.
4
SCROLL: Is used to scroll the
display to show the various
instruments.
1Auto LED indicates that the unit is in Auto
Mode.
2Start LED indicates that the unit is in
Manual/Start Mode.
3Alarm LED indicates that an alarm is
present. The exact alarm is shown on
the display.
1
3
2
