Text on drawings Translation or Explanation
THE DIMENSIONS FOR FULL
FEATURE UNIT...
Dimensions of the Full Feature units are indicated between ( )

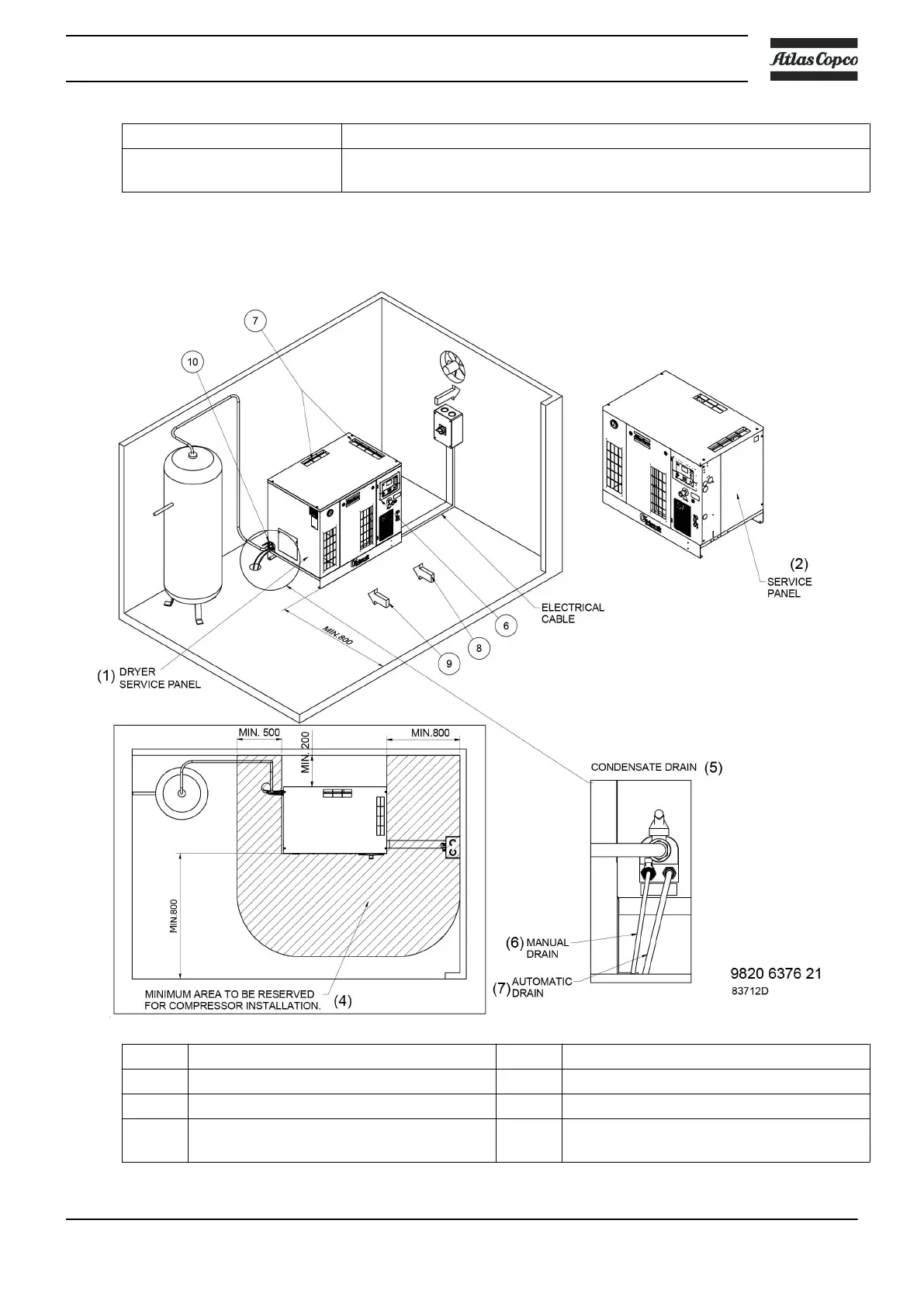

3.2 Installation proposal
1 Dryer service panel 5 Condensate drain
2 Service panel 6 Manual drain
3 Supply cable 7 Automatic drain
4 Minimum area to be reserved for servicing
purposes
