- 49 -

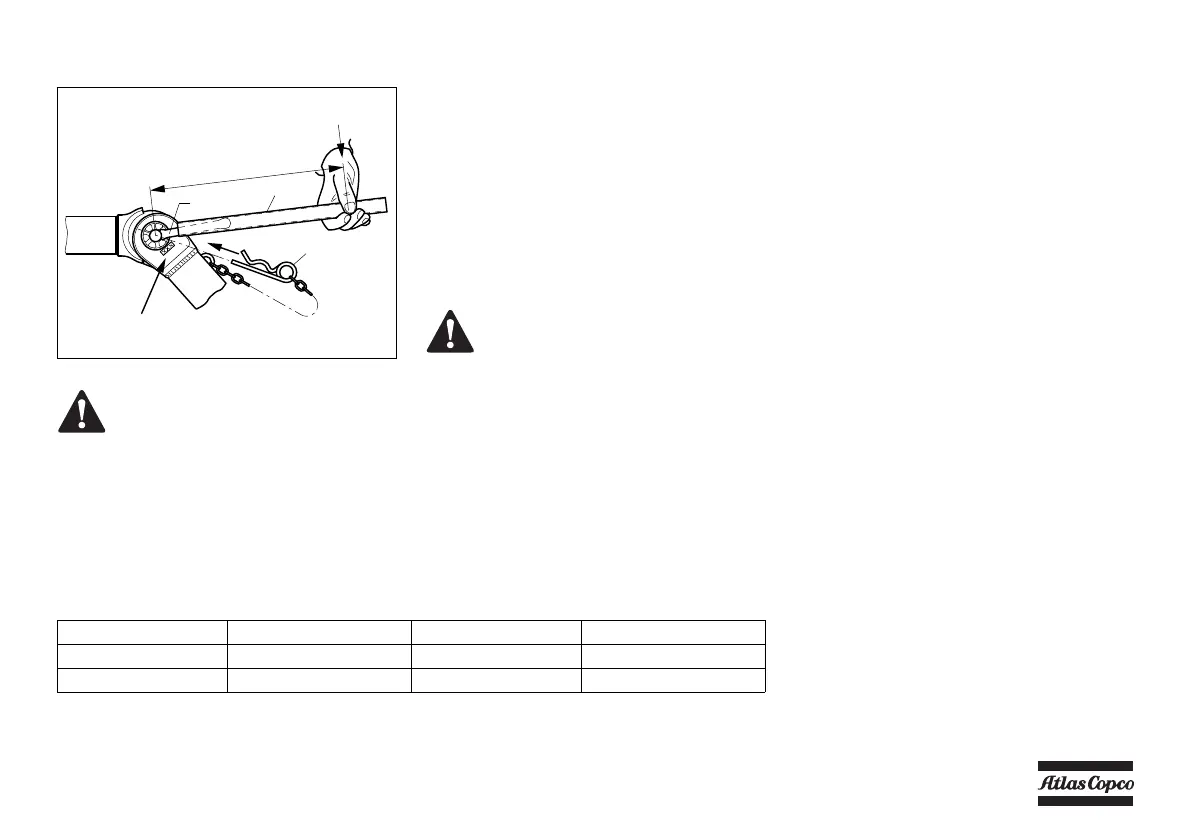

HEIGHT ADJUSTMENT
(with adjustable towbar)
Remove spring pin (1).
Release locking nut (2).
Adjust required height of the towbar.
Tighten locking nut (2) by hand.
Secondly tighten locking nut (2) with a tightening
torque corresponding to table. With an extension
tube (3) (”A” corresponding with table) and
handforce (”B” corresponding with table)
tightening is easy.
Fix locking nut (2) with spring pin (1).
Height adjustment should be undertaken on
levelled ground and in coupled condition.
When readjusting, make sure that the front point
of the towbar is horizontal with the coupling
point.
Before starting a trip, ensure that the adjustment
shaft is secure, so that stability and safety is
guaranteed while driving. If necessary, tighten the
locking nut (2) corresponding with table.
SPILLAGE-FREE INSTRUCTION
The compressor is fitted with a leak-proof
undercarriage in order to protect the environment.
Any leaking fluid is collected in case of malfunctions.
This fluid can be removed via outlets, normally
secured by caps.
Tighten the caps firmly and check for leakages.
Please observe the locally applicable environmental
regulations when removing the leaking liquid.
Before towing the compressor, make
sure that the joints of the towbar are
secured with maximum strength without
damaging the towbar. Be sure that there
is no clearance between the teeth of the
joints.
For specific instruction see below!
Type (XXX) M [Nm/lbf.ft.] ”A” [mm/in] ”B” [N/lbf]
ZV 2000 250 - 300 / 185 - 220 600 / 23.4 420 - 500 / 95 - 110
ZV 2500 350 - 400 / 260 - 295 600 / 23.4 580 - 660 / 130 - 145
Attention:
