MAIN PARTS
1 ..............Lifting eye
2................Service door, coolers
3................Access to control and indicator panel
4................Sensor, engine fuel level
5................Hand brake
AF.............Air filter, compressor and engine
AR/OS ......Air receiver/oil separator
AV ............Air outlet valve
B ...............Battery
CE.............Compressor element
DS.............Dipstick, engine oil level
E ...............Engine
EB.............Emergency push button
F................Fan, coolers
FC1...........Filler cap, fuel
FC2...........Filler cap, engine coolant
FC3...........Filler cap, engine oil
FF1 ...........Fuel pre-filter
FF2 ...........Fuel fine-filter
FP .............Fuel priming pump
FT .............Fuel tank
H22...........Flasher light
MPV .........Minimum pressure valve
OF.............Oil filters, compressor
OFe...........Oil filter, engine
OFP...........Oil filler plug, compressor
PG.............Pressure gauge
RV ............Regulating valve
SG.............Sight glass
SR.............Speed regulator, engine
SV.............Safety valve
T ...............Towbar
TG.............Temperature gauge
BODYWORK
The compressor, the engine, the cooling system, etc. are enclosed in
a sound-insulated bodywork that can be opened by means of side,
front and rear service doors.
A lifting eye is provided under a small door on top of the
compressor.
MARKINGS AND INFORMATION LABELS

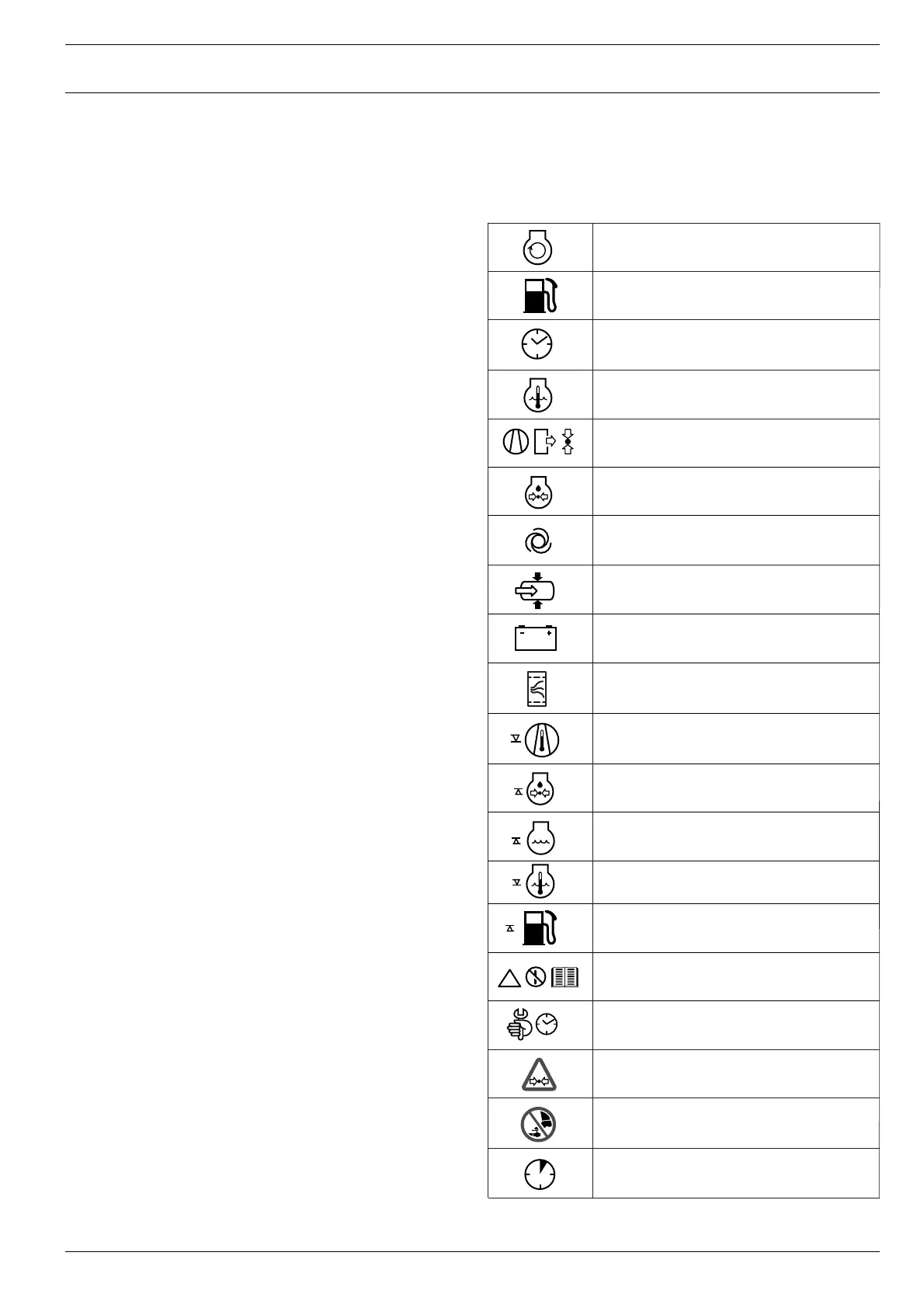

Markings
9
INSTRUCTION MANUAL
Compressor outlet pressure.
Oil pressure engine.
Compressor load.
Battery.
Air filter.
Compressor temperature too high.
Oil pressure engine too low.
Engine cooling water level too low.
Cooling water temperature too high.
Fuel level too low.
Read the instruction manual before starting.
